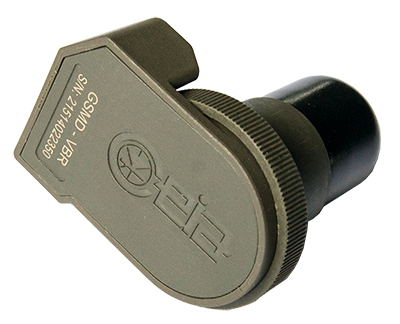

GROUND SEARCH Metal Detectors


GSMD-VBR

Vibration Signaling Device for CEIA GSMDs







Visit us at
Global Explosive Ordnance Disposal (EOD) Conference and Exhibition
North Bethesda, MD - United States of America
Aug 7 - 9, 2017
Exhibitor: CEIA USA Ltd.

DSEI - Defence and Security Equipment International
London - United Kingdom
Sep 12 - 15, 2017
Exhibitor: CEIA S.p.A. - Booth N7-480

Modern Day Marine Expo
Quantico, VA - United States of America
Sep 19 - 21, 2017
Exhibitor: CEIA USA Ltd. - Booth 1060

See all upcoming events >>

  • Plugs directly to the GSMD Headphone Connector
  • MIL-D1 and CMD compatible
  • No removal needed when Detector is folded
  • No maintenance required
  • It allows the operator to turn the internal speaker off when the volume knob is at the minimum
  • Low Power Consumption
  • Embedded 32-bit microcomputer
  • Operating at Full Depth with CMD/DW

Brochures
Click To View GB Brochure



Manuals

GSMD-VBR

Plugs directly to the GSMD Headphone Connector

Specifications

  • Operating Temperature: -30°C to 70°C
  • Storage Temperature: -40°C to 80°C
  • MTBF: 200,000 cycles @ 20°C ambient temperature
  • Power Consumption:
    • GSMD Off: 0 mA
    • GSMD On: 14 mA
    • GSMD in alarm: 80 mA
  • Dimensions: 52.5 mm x 37 mm x 35.5 mm
  • Weight: 45 grams
  • Protection Degree (according to IEC 529): IP68

Documents


Brochures
Click To View GB Brochure



Manuals
