GROUND SEARCH Metal Detectors


MIL-D1/DS

Deep Search Underground Metal Detector







Visit us at
AUSA Annual Meeting & Exposition
Washington, DC - United States of America
Oct 3 - 5, 2016
Exhibitor: CEIA USA Ltd.

Milipol Qatar
Doha - Qatar
Oct 31 - Nov 2, 2016
Exhibitor: Qatar Security Systems Company

Expoprotection
Paris - France
Nov 7 - 9, 2016
Exhibitor: CEIA S.p.A.

See all upcoming events >>

  • Effective detection of magnetic and non-magnetic metal masses
  • High Discrimination against shallow metal clutter
  • Superior detection depth
  • Total immunity to environmental magnetic anomalies
  • Static and dynamic detection independent of the detector’s rate of advance
  • Extremely high level of electrical and mechanical reliability
  • Completely digital electronics, with in-field program memory upgrade capability
  • Operation monitored by a microcomputer controlled autodiagnostic system with audible warning signals

Brochures
Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View JP Brochure



Manuals

MIL-D1/DS

Designed for the accurate detection of deeply buried large metal masses, including unexploded ordnance, whilst discriminating against ground magnetic anomalies.

Description

MIL-D1/DS - detail

View of the MIL-D1/DS inside its transportation case

The CEIA MIL-D1/DS Metal Detector is an active EMI device based on transmission of an alternating, low-frequency magnetic field and on the variations introduced into this field by buried metal masses.

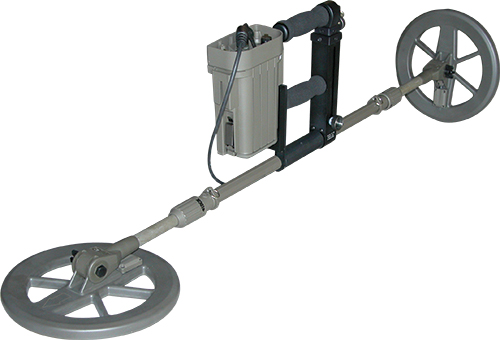

The detector consists of a telescopic pole with a central section in aluminium and fiberglass extensions. The two probe-antennae which act as transmitter and receiver of the magnetic field are mounted at the ends of the extensions.

Detection signals are provided by an audible tone and an LCD located on the front panel of the control unit.

The most significant features of the MIL D1/DS are the following:

  • High sensitivity, useful for detecting metal masses at depth;
  • High discrimination against shallow metal clutter;
  • Compensation for mineralized soils and total immunity to the effects of the terrestrial magnetic field;
  • High stability of its detection system, which shows no drift over time or with variations in environmental conditions;
  • Intrinsic reliability and extremely high resistance to shock and mechanical stress, essential requirements for a long operating life.

Specifications

Technical data

  • Power supply
    • Types of batteries (4x), ANSI Standard, type D; 1.5V Alkaline (LR20)
    • 1.2V Ni-MH rechargeable (>7000 mA/h)
  • Battery
    • Battery charge indicator
  • Metal alarm
    • Adjustable sensitivity
    • Audible alarm with adjustable volume and visual LCD display
  • Dimensions
    • External diameter of probe head: 280 mm
    • Length of telescopic handle: 1600 mm
    • Electronics unit: 215 mm x 155 mm x 80 mm
    • Case: 950 mm x 440 mm x 155 mm
  • Weight
    • Probe head and telescopic handle: 3.9 kg
    • Electronics unit (including batteries): 1.6 kg
    • Case: 7.7 kg
  • Environmental
    • Storage temperature: -55 °C to +75 °C
    • Operational temperature: -46 °C to +65 °C
  • Level of protection
    • MIL-D1/DS : IP68 (IEC 529)
    • Case in High Impact Polypropylene: IP68 (IEC529)
  • NATO number
    • MIL-D1/DS: N. 6665-15-1751105
