GROUND SEARCH Metal Detectors


GSMD-Helmet RDU

Remote Visual / Acoustic Slim Line Signaling Device







Visit us at
Sicurezza
Milan - Italy
Nov 15 - 17, 2017
Exhibitor: CEIA S.p.A. - Hall 7P Booth D01 E04

Milipol
Paris - France
Nov 21 - 24, 2017
Exhibitor: CEIA S.p.A. - Hall 6 - Booth D168

See all upcoming events >>

  • Lightweight, slim line design
  • Plugs directly to the GSMD Headphone Connector
  • MIL-D1 and CMD compatible
  • No removal needed when Detector is folded
  • No Battery required
  • No maintenance required
  • Low Power Consumption
  • Embedded 32-bit microcomputer


Manuals

GSMD-Helmet RDU

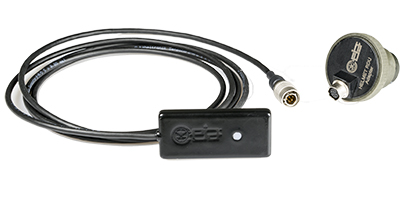

The GSMD-HELMET-RDU is a very compact signaling device designed to operate in conjunction with CEIA Ground Search Metal Detectors.

Description

The GSMD-HELMET-RDU is a very compact signaling device designed to operate in conjunction with CEIA Ground Search Metal Detectors.

The device allows to remote the visual and acoustic status / alarm signals inside the helmet of the EOD operator.

LED Intensity Adjustment

The LED intensity can be adjusted rotating the volume metal detector knob located on the control unit to the minimum (anticlockwise) and then, within a second, turning the same knob to a position correspondent to a suitable led light level.

The Led intensity comes to the default level anytime the RDU is disconnected.

Specifications

  • Operating Temperature: -46°C to 70°C (-51°F to 158°F)
  • Storage Temperature: -55°C to 85°C (-67°F to 185°F)
  • MTBF: 20,000 hours @ 20°C (68°F)
  • Power Consumption:
    • GSMD Off: 20 mA
    • GSMD On: 20.5 mA
    • GSMD in alarm: 22 mA
  • Cable length: 180 cm (6 ft)
  • Quick release connector to adapter
  • Dimensions: 55 mm x 25 mm x 8 mm (2.2” x 1” x 0.3”)
  • Weight:
    • with cable: 50 g (0.11 lbs)
    • w/o cable: 15 g (0.03 lbs)
    • adapter: 25 g (0.06 lbs)
  • Protection Degree (according to IEC 529): IP44
  • Ordering code: GSMD-HELMET-RDU
