SECURITY Detection


EMA series

Liquid Explosive Detector


Type B
Standard 3
certified
Type A
Standard 3
certified
TSA
qualified






Visit us at
Build Asia
Karachi - Pakistan
Dec 15 - 17, 2016
Exhibitor: Sage Tech International

See all upcoming events >>

  • Certified according to ECAC performance requirements for Type B and Type A Liquid Explosive Detection Systems (LEDS)
  • Accurate automatic inspection of sealed and unsealed LAGs (Liquids, Aerosols and Gels) in ~ 5 sec. (Type B) and ~ 4 sec. (Type A)
  • Certified to screen liquids in clear, colored and opaque plastic and glass, metal and metallized containers
  • Very low combined Nuisance Alarm Rate: < 0.4%
  • Compact size and ergonomic design
  • No-ionizing source or part in movements
  • No maintenance required

Brochures
Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View D Brochure
Click To View JP Brochure



Manuals

EMA series

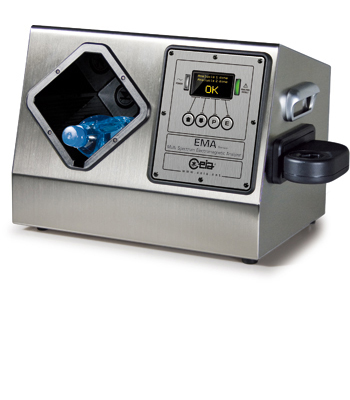

The EMA is a compact device designed for the analysis of liquid containers and their contents with the goal of detecting the possible presence of explosive precursors and explosive liquids. When the operator places the bottle in the inspection cavity, its presence is automatically detected and the analysis is performed in ~ 5 seconds.

Description

EMA series - detail

Examples of liquid containers that can be screened with EMA

General description

The EMA is a compact device designed for the analysis of liquid containers and their contents with the goal of detecting the possible presence of explosive precursors and explosive liquids.

The content of the bottles is analyzed without the need to open the container as the detection is effected using simultaneous multiple sensing technologies. The housing of the analyser, which is extremely robust, durable and easy to clean, is made of AISI 304 Stainless Steel and anti-friction plastic.

The Analyser consists of a main body, a control panel and an analysis compartment. In case of open containers such as cups and thermos flasks, it is possible to carry out the analysis by means of the type A integrated analyser (optional), using small disposable plastic sample cups to be inserted into an external probe.

Inspection of bottles or containers

  • Independently of their shape
  • Made of different materials
  • In a wide range of capacity

CEIA EMA and LEDS Requirements

Type B Liquid Explosive Detection Systems are intended for the inspection of individual liquid containers with the purpose of detecting explosives and their precursors, according to the current Regulation Authority requirements (EU Reg. No 185/2010).

As containers can be made of different materials and can have different geometry and volume, the use of multiple simultaneous physical principles is necessary for a reliable and secure screening.

The CEIA EMA analyser family design started in 2003; since then the number of sensors installed on-board have been growing in order to comply with the increasing requirements on the liquid threats to be detected and on the kind of containers to be inspected. The comprehensive set of sensors installed on the equipment makes the EMA liquid analyser a unique machine on the market providing very high security and set for future detection requirements.

The CEIA EMA includes an EU Standard 3 Certified type A analyser (optional) to screen loose liquids, open containers or following to an alarm on the type B section. A disposable cup allows sampling and measurement of a minimum quantity of liquid to be analysed.

Operating principle

When the operator places the bottle in the inspection cavity, its presence is automatically detected and the analysis is performed in ~ 5 seconds.

The fields generated in the inspection cavity are weak in intensity and non-ionizing, therefore completely safe for the liquids and for the operator.

The fields interact with containers and with their content. The entire volume is analyzed in order to verify its conformity with allowed liquids.

After a few seconds, the unit provides an OK or ALARM message without requiring any data interpretation by the operator.

Calibration is carried out automatically by the unit.

Specifications

Key features

  • Integrated Type B and Type A Standard 3 certified System
  • Automatic inspection of any type of containers
  • Inspection time in ~ 5 seconds (type B) and ~ 4 seconds (type A)
  • Multiple simultaneous sensing technologies
  • Minimum installation space
  • Minimum operator training required
  • All solid state
    • No mechanical parts in movements
    • No-ionizing or laser sources
  • No maintenance required
Multiple sensing technology
  • Wideband Radio Frequency (R.F.)
  • Infrared (IR)
  • Magnetic Inductive
  • Gravimetric
Inspection Characteristics
  • Commercial Bottles of any shape and materials including plastic, glass, metal with capacity ranging from 100 ml to 2000 ml
  • Type A sample cups volume: 10 ml
  • Initial Start-up time: 15 sec. max
  • Analysis type: automatic
  • Analysis time: 5 sec. typical (type B) and 4 sec. typical (type A)
Detectable substances
  • Explosive precursors and explosive liquids
Alarm Signalling

Light colorDisplay messageMeaning
GreenOKAllowed liquid
YellowNot allowed productAlarm of medium intensity
RedNot allowed productAlarm of high intensity


Acoustic alarmThreat classification availableOperator interface
  • Easy to read high-contrast graphic display
  • High durability stainless steel function keys
  • Programmability of all the parameters protected by passwords
Function and calibration control
  • Automatic calibration, continuously running
  • Manual verification of calibration, performed by the operator through Pass/No-Pass reference test pieces (according to the operational procedures)
Communication capability
  • RS-232 serial interface
  • Ethernet network interface
Remote control and Ethernet Networking Functions
  • Available through the CEIA NetID Management software
    • Programming
    • Statistical Data Collection
    • Maintenance
    • Firmware upgrade
Degree of protection
  • IP 20 (IEC 60529)
Weight
  • 17 kg (type B only)
  • 17.5 kg (type B and type A)
Main Electronics Features
  • High integration SMT
  • 32-bit flash-based microcontrollers
  • 32-bit DSP
  • Low power and high reliability
  • Very low power inspection field, confined in the analysis compartment, completely safe for both the operator and the liquid
  • No ionizing radiation or radioactive sources
  • No laser sources
Main Mechanical Features
  • Constructed entirely in AISI304 Stainless Steel
  • Anti-fingerprint surface treatment
  • Rugged and Durable
  • Compact and Aesthetically pleasing
Installation and Maintenance
  • Automatic adjustment to environmental conditions
  • No initial or periodic calibrations required
  • Firmware upgradeable via RS232 or Ethernet interface
  • No periodical maintenance or consumables required
  • Built-in automatic calibration and self-diagnosis system
Certification and conformity
  • Standard 3 Certified according to ECAC performance requirements for Type B Liquid Explosive Detection Systems
  • Standard 3 Certified according to ECAC performance requirements for Type A Liquid Explosive Detection Systems
  • Conforms to the currently applicable International Standards for Electrical Safety and EMC
Power Supply
  • 115/230V~ ±15%, 50/60 Hz ±10%, 15W
Environmental conditions
  • Operating temperature: 0°C to +40°C
  • Storage temperature: -10°C to +60°C
  • Operating Relative humidity: 0 to 95% (without condensation)
  • Storage Relative humidity: 0-98%, without condensation
NATO Stock Number
  • 6665-151805235
  • 6665-151805236

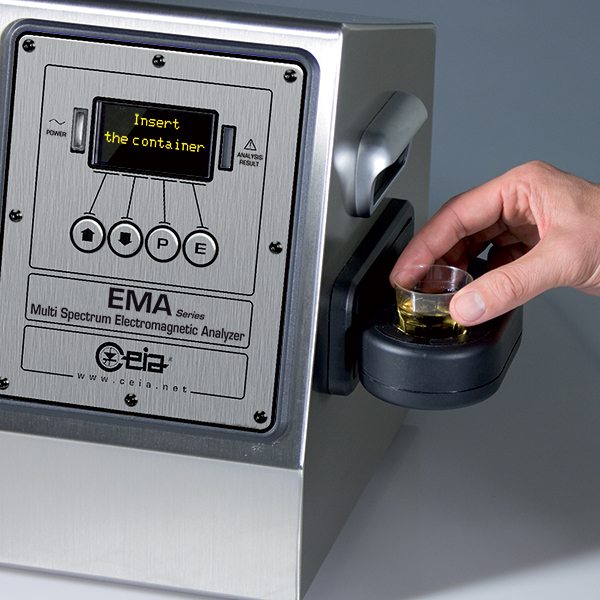

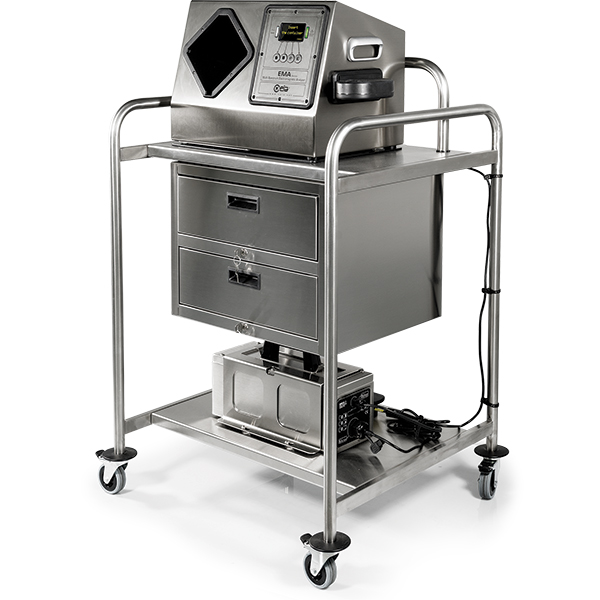

Type A analyser (optional)
  • EMA is designed for the analysis of LAGs in their original container. In case of open containers such as cups and thermos flasks, it is possible to carry out the analysis by means of an optional type A analyser, using small disposable plastic sample cups. The external probe is installed on the right side of the device. Analysis time: 4 sec.
