SECURITY Detection


EMIS 6047
EMIS 8075

Automatic Screening Devices for non-metallic cargo


Certified by Governmental Laboratories






Visit us at
Security Asia
Karachi - Pakistan
Sep 27 - 29, 2016
Exhibitor: Sage Tech International

Security Essen
Essen - Germany
Sep 27 - 30, 2016
Exhibitor: CEIA GmbH - Hall 5.0 Booth 5B24

ITCN Asia
Karachi - Pakistan
Sep 27 - 29, 2016
Exhibitor: Sage Tech International - Haal 6 Booth D-38

See all upcoming events >>

  • Fully automatic detection of detonators and metal components of explosive devices
  • Low-intensity electromagnetic field: uses no ionizing radiation
  • Available in different sizes for inspection of single packages or entire pallets
  • No dedicated operator needed
  • Complete data logging and traceability
  • No periodic maintenance or calibration required

Brochure
Click To View GB Brochure
Click To View I Brochure
Click To View D Brochure



Manuals

EMIS 6047 - EMIS 8075

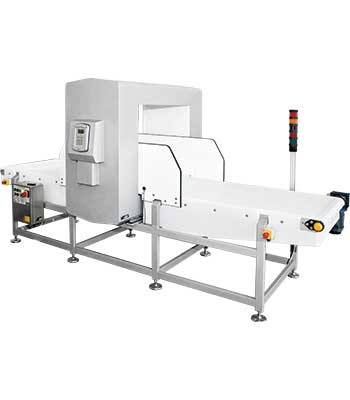

The CEIA EMIS (Electro-Magnetic Inspection Scanner) equipment are security screening devices designed to inspect non-metallic cargo. Using CEIA exclusive Electromagnetic Profile Analysis technology, these devices ensure automatic detection of detonators and electronic circuits from IEDs (Improvised Explosive Devices), ammunition and weapons composed of metal (knives, firearms). In case of detection, the scanners give an audible and visual alarm.

Description

Fully Automatic Detection

The EMIS is designed to automatically detect detonators and metal components of explosive devices inside paper, newspaper, perishable goods such as produce, fish and meat (fresh or frozen) and organic material in general. Electromagnetic inspection is the most suitable and quickest method for checking non-metallic cargo. The advanced technology employed in the EMIS minimizes the interaction with the goods themselves and does not depend on visual interpretation of an image by an operator.

Efficiency and Low Cost of Ownership

The EMIS offers the ability to automatically screen complete pallets, helping to avoid the need for breakdown and ensuring the highest throughputs are maintained when compared to other approved technologies. The automatic electromagnetic analysis offers a superior level of detection performance guaranteeing the safety of all shipments.
The automated screening process does not require the use of an operator for image interpretation and no regular staff rotation periods for constant operation. Peak periods can be helped by the increased throughput EMIS offers, combined with the ability to redeploy staff normally associated with image interpretation to areas where they are most needed. Finally the solidstate construction requires no periodic maintenance or calibration ensuring a substantial reduction in the life-cycle costs of the equipment.

Specifications

Detection functions

  • Analysis of containers of perishable goods and paper without metal content
  • CEIA electromagnetic-profile analysis technology
  • Useful dimensions of the tunnel: 6047 model: 600 mm x 470 mm - 8075 model: 800 mm x 750 mm
  • Height of the conveyor belt: 875 mm ± 75 mm adjustable
  • Maximum transport weight: 135 ÷ 275 kg total (depending on the speed)
  • Speed: 10 ÷ 50 m/min
  • Inspection capacity: adjustable, up to 3000 packs per hour
Programming and communications
  • Modern, rugged and user friendly interface
  • Easy to read, high-contrast (3000:1) graphic display
  • Rugged, antivandalism stainless steel keyboard
  • Programming access protected by multiple password levels
  • Programming in a network or via serial connection to a personal computer
  • RS-232 serial interface
  • Ethernet Interface
  • Bluetooth link for local maintenance (deactivable)
Alarm functions
  • Automatic slowing and stopping of the conveyor
  • Manual alarm reset and consequent restarting of the conveyor
  • Visible and audible alarms
Environmental operating characteristics
  • Operating temperature: 0 °C to 50 °C
  • Construction in IP65 Stainless steel
General characteristics
  • Power supply voltage: 200-240 V, ±10%, 50 ÷ 60 Hz, 11.4A
  • Weight: 6047 model: 500 kg - 8075 model: 700 kg
Conformity
  • Conforms to the international standards currently applicable for electrical safety and EMC, and to the applicable EC Regulations
  • Complies with Regulations relating to pacemakers, defibrillators or other vital support systems, pregnant women and magnetic storage media (floppy disks, audio cassettes, video cassettes and similar)
Operational Requirements
  • Plastic containers
  • Packaging bands without metal parts
  • Perishable goods or paper without metal content
Applicable commodity groups
  • Grains and animal feed, produce, perishables, bakery goods, dry goods
  • Printed Material
  • Seafood and Meat
  • Paper products, plastic, rubber
  • Wearing apparel (without metallic accessories)
  • Flowers and herbs
