Detektoren für die SICHERHEIT


PD140E

Neuste Generation kompakt-Metalldetektor


NIJ 0602.02
entsprechend






Besuchen Sie uns
Security Asia
Karachi - Pakistan
Sep 27 - 29, 2016
Aussteller: Sage Tech International

Security Essen
Essen - Germany
Sep 27 - 30, 2016
Aussteller: CEIA GmbH - Hall 5.0 Booth 5B24

ITCN Asia
Karachi - Pakistan
Sep 27 - 29, 2016
Aussteller: Sage Tech International - Haal 6 Booth D-38

Messen und Veranstaltungen >>

  • Fully Compliant with NIJ Standard - 0602.02
  • Compact, Elegant, Robust and Ergonomic
  • Uniform Detection of Magnetic and Non-Magnetic Targets
  • Full Digital Design: Consistent Performance and Calibration-Free Operations
  • Extended Continuous Operation Time
  • Programmable Sensitivity
  • Indoor and Outdoor Operations

Prospekt
Click To View GB Brochure
Click To View I Brochure



Handbücher

PD140E

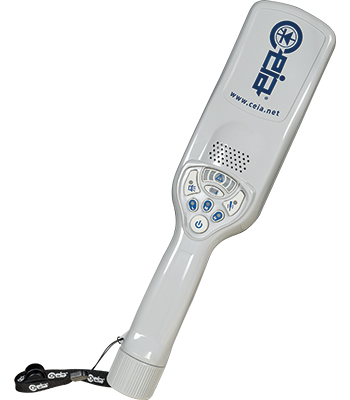

The PD140E is a Hand Held Metal Detector that combines high reliability and ergonomics with advanced detection and operator signaling features. Effective sensitivity to all metals, full compliance with the latest Security Standards and high immunity to external metal masses are among the main peculiarities of this new device.

Beschreibung

PD140E - detail

Fully Programmable Signaling: Proportional, High Loudness Acoustic Alarm; Proportional, High Brightness Optical Alarm; Vibration Alarm for Discrete Screening.

Compact, elegant, robust and ergonomic

The PD140E features a special ergonomic design consisting of an offset hand grip which ensures that the operator’s hand does not interfere with the sensitive detection area. Special care has gone into the mechanical design of the detector. Absence of sharp edges or corners allows the detector to be passed smoothly over the inspected area without getting caught in buttons, buckles, folds or other parts of clothing.

NIJ standard 0602.02 compliant

The technical features of the detector comply with the NIJ standard 0602.02 and the new NIJ draft standard 0602.03. The PD140E has uniform sensitivity to magnetic and non-magnetic targets including those made of stainless steel. At the same time the detector offers excellent body-effect compensation and has high immunity to external disturbance from electromagnetic and mechanical sources.

Full digital design

The PD140E is fully digital. Electronic functions include a magnetic field transmitter-receiver based on Digital Signal Processing (DSP) technology. This design, combined with a special printed antenna, ensures consistent performance, very high reliability and calibration-free operations.

Latest plastic materials technology

The metal detector casing is made from next-generation technical polymers. These plastics offer high chemical resistance and mechanical strength ensuring a long detector life even in heavy duty conditions.

Advanced alarm indication

The alarm signalling modes include: optical alarm proportional to the intensity of the detection signal; acoustic alarm with a tone which is proportional to the size of the object detected; vibration alarm signal.

Spezifikationen

Power supply

  • 2x AA size alkaline or NiMH rechargeable batteries
Fully customizable control panel
  • Optical, acoustic and vibration alarm modes3-level sensitivity selection buttons
Battery
  • Battery life: 100 + hours continuous service (AA alkaline batteries)
  • Low battery indicator
Operating temperature
  • -40°C to 70°C
Storage temperature
  • -40°C to 80°C
Relative humidity
  • 0 to 98% (without condensation)
Dimensions
  • 360 mm x 80 mm x 40 mm
Weight
  • 390 g (with battery)
Color
  • Light grey RAL 7040
Manufactured
  • Manufactured in grey shock-resistant technical polymers
Compliance
  • Conforms to the NIJ 0602.02 Standard and the NIJ 0602.03 Draft for metal detection
  • Conforms to the international standards currently applicable for safety, EMC and to the applicable CE regulations
Package dimensions
  • 410 mm x 70 mm x 125 mm (LxDxH)
Package weight
  • 550 g

Anwendungen

Zubehör

Unterlagen


Prospekt
Click To View GB Brochure
Click To View I Brochure



Handbücher



Zertifikate
CE Certificate
Human Exposure Certificate
