SECURITY Detection

EMIS 8075

Automatic Screening for non-metallic cargo

Meet ECAC Performance Standard

Visit us at
ISC West
Las Vegas, NV - United States of America
Apr 11 - 13, 2018
Exhibitor: CEIA USA Ltd. - Booth 14126

See all upcoming events >>

  • Fully automatic detection of detonators and metal components of explosive devices
  • Low-intensity electromagnetic field: uses no ionizing radiation
  • Available in different sizes for inspection of single packages or entire pallets
  • No dedicated operator needed
  • Complete data logging and traceability
  • No periodic maintenance or calibration required

Click To View US Brochure


EMIS 8075

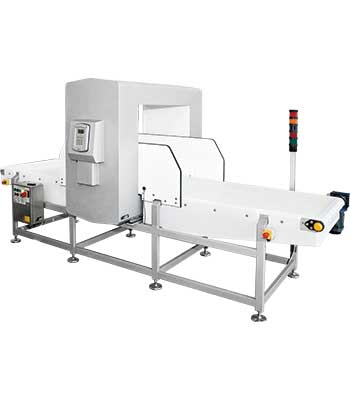

The CEIA EMIS (Electro-Magnetic Inspection Scanner) equipment are security screening devices designed to inspect non-metallic cargo. Using CEIA exclusive Electromagnetic Profile Analysis technology, these devices ensure automatic detection of detonators and electronic circuits from IEDs (Improvised Explosive Devices), ammunition and weapons composed of metal (knives, fi rearms). In case of detection, the scanners give an audible and visual alarm.


Fully automatic detection

The EMIS is designed to automatically detect detonators and metal components of explosive devices inside paper, newspaper, perishable goods such as produce, fish and meat (fresh or frozen) and organic material in general. Electromagnetic inspection is the most suitable and quickest method for checking non-metallic cargo. The advanced technology employed in the EMIS minimizes the interaction with the goods themselves and does not depend on visual interpretation of an image by an operator.

Efficiency and low cost of ownership

The EMIS offers the ability to automatically screen complete pallets, helping to avoid the need for breakdown and ensuring the highest throughputs are maintained when compared to other approved technologies. The automatic electromagnetic analysis offers a superior level of detection performance guaranteeing the safety of all shipments.
The automated screening process does not require the use of an operator for image interpretation and no regular staff rotation periods for constant operation. Peak periods can be helped by the increased throughput EMIS offers, combined with the ability to redeploy staff normally associated with image interpretation to areas where they are most needed.
The solidstate construction requires no periodic maintenance or calibration ensuring a substantial reduction in the life-cycle costs of the equipment.


Detection functions

  • Analysis of containers of perishable goods and paper without metal content
  • CEIA electromagnetic-profile analysis technology
  • 0.5 ppm by weight Detection Sensitivity at maximum load (130160, 130200 models)
  • Tunnel useful area: 31.5” x 29.5“
  • Height of the conveyor belt: 34.5” ± 3” adjustable
  • Maximum Conveyor Load: 400 lbs typical – 600 lbs evenly distributed
  • Speed range 20 to 50 m/min
  • Speed/Inspection Time: 30 m/min
  • Inspection capacity: Adjustable, up to 3,000 packs per hour


  • Material AISI 316L Stainless Steel
  • Protection degree IP65
  • Weight: 700 kg

Power supply

  • Supply voltage 200-240 V, 50-60 Hz
  • Maximum current 11.4 A

Programming and communications

  • Modern, rugged and user friendly interface
  • Easy to read, high-contrast (3000:1) graphic display
  • Rugged, anti-vandalism stainless steel keyboard
  • Programming access protected by multiple password levels
  • Selection of the operative program
  • Programming type: Local, through the built-in keyboard
  • Memory: 125 programs, 100000 storable events
  • USB Storage device connection

Alarm functions

  • Automatic slowing and stopping of the conveyor
  • Manual alarm reset and consequent restarting of the conveyor
  • Visible and audible alarms

Control inputs

  • Connection of: following conveyor authorization, emergency button
  • Serial interface RS232: Built-in
  • Bluetooth connection: Built-in (deactivable)
  • USB Interface: Built-in
  • Ethernet interface: Built-in 10 - 100 Base-T


  • 5 programmable relays (30Vca – 2.5A) for the activation of external devices
    • Ready to load relay
    • Ready relay
    • Ejector relay
    • Preceding conveyor relay
    • Item clear relay

Environmental data

  • Operating temperature: 14°F to 122°F
  • Storage temperature: -13°F to 158 °F
  • Relative humidity: 0 to 95% (without condensation)


  • Conforms to the international standards currently applicable for electrical safety and EMC, and to the applicable EC Regulations
  • Complies with Regulations relating to pacemakers, defibrillators or other vital support systems, pregnant women and magnetic storage media (floppy disks, audio cassettes, video cassettes and similar)

Applicable commodity groups

  • Grains and animal feed, produce, perishables, bakery goods, dry goods
  • Seafood and Meat
  • Textiles and Clothing (without metallic accessories)
  • Paper products, plastic, rubber
  • Printed Material
  • Flowers and herbs

For the following CCSF

  • Shipping facilities
  • Freight Forwarding Facilities
  • Third Party Logistics Providers
  • Manufacturing Facilities
  • Warehouses
  • Distribution Centers
  • Growers of produce



Click To View US Brochure


CE Certificate

Technical drawings
Technical Drawings
