  • Two-in-One Metal Detector
    • Fully compliant with the NIJ-0601.02 Law Enforcement Standard
    • Very high discrimination and high throughput for public screening
  • Features
    • Accurate Pinpointing of individual and multiple metal targets
    • Exceptional Immunity to external interferences
    • Unmatched Reliability
    • Rapid Installation

Brochure
Click To View US Brochure
Click To View E Brochure



Manuals

SMD600 Plus

The SMD600 Plus is the first Metal Detector in the market fully compliant with the NIJ-0601.02 Standard, as required in very high sensitivity applications, which also allows very high throughput in high security public screening checkpoints.

Description

SMD600 Plus - detail

CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer location

Fully compliant with the NIJ-0601.02 Standard

The Standard establishes the requirements of Sensitivity, Discrimination and Immunity for Law Enforcement and Correctional Facilities.
The SMD600 Plus Metal Detector fully complies with the requirements of the NIJ0601.02 Standard for all Security Levels, and can therefore be applied in situations from the inspection of visitors to that of inmates in top-security checkpoints, even in areas with strong electrical and mechanical interferences.
The SMD600 Plus is a very high sensitivity Metal Detector that also offers characteristics of high discrimination and high detection uniformity.

Very high sensitivity

  • Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
  • Accurate pinpointing of individual and multiple metal targets. A full-height light bar displays the location of the detected metal masses in transit. This results in rapid identification of threats and a reduction or elimination of the need for manual searches.
  • Built-in programs to screen visitors and staff for weapons and contraband

Very high throughput

Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow. The transit volume magnetic scanning system, invented by CEIA and applied since production of the first zonal Metal Detectors in 1986, allows state-of-the-art detection and discrimination results. The SMD600 Plus has an extremely low nuisance alarm rate even at the strictest Security Levels requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.

Unique alarm signaling

  • 4 Multi-Zone Display Bars, each programmable as entry Stop/Go and/or local alarm indication. Accurate signaling is essential for best operation and flow management. The SMD600 Plus provides the user with fully-programmable signaling. Both entry-points can indicate with a high level of accuracy, even simultaneously, the areas of transit of the threats detected, and can also be configured as ’traffic lights’ to control transits through the detector.
  • Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
  • 10 Alarm Volume Levels. A complete acoustic alarm system allows personalization of the alarm tones and volume, with a wide choice of continuous, pulsed and special tones at different levels of intensity. The wide volume control dynamic allows operation even in very noisy environments.

Most powerful and versatile security features

  • Up to 50 built-in Security Programs: Up to 30 International Standards; Up to 20 Customizable Levels. Setting the Security Levels could not be easier and more versatile than in the SMD600 Plus. Users can choose directly from the known International Standards or request implementation of a Standard personalized to their own requirements. Users can also create their own work program and save it in internal memory provided for the purpose.

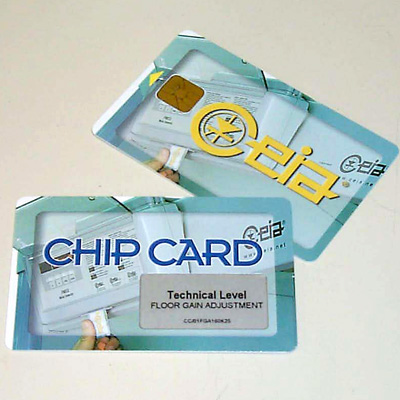

  • Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc...) and security level selection
  • Any security standard can be enhanced with selectable random alarm probability

Specifications

Key features

  • Very High Sensitivity
  • Excellent discrimination of personal metal effects
  • Fully compliant with, and exceeding, the NIJ-0601.02 Standard
  • Very high throughput in high security public screening checkpoints
  • Met-Identity technology identifies and signals the metal type in real time
  • Exceptional Immunity to external interferences
  • High precision bidirectional counter with automatic rescreening compensation
  • Random alarm capability programmable from 0% to 100%
  • Chip Card capability for fast, simple, and secure programming

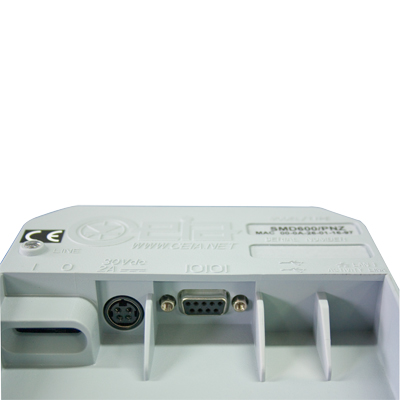

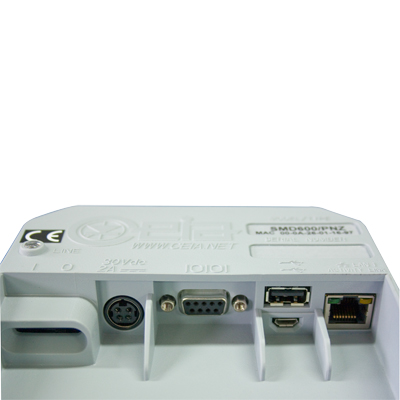

  • Standard Interfaces: RS-232, Bluetooth, Infrared. Other available interfaces: Wi-Fi, Ethernet, USB

Quality

  • Continuous self diagnostic system
  • Proven reliability
  • No periodic re-calibration and preventive maintenance required
  • No scheduled maintenance
  • Fully digital design

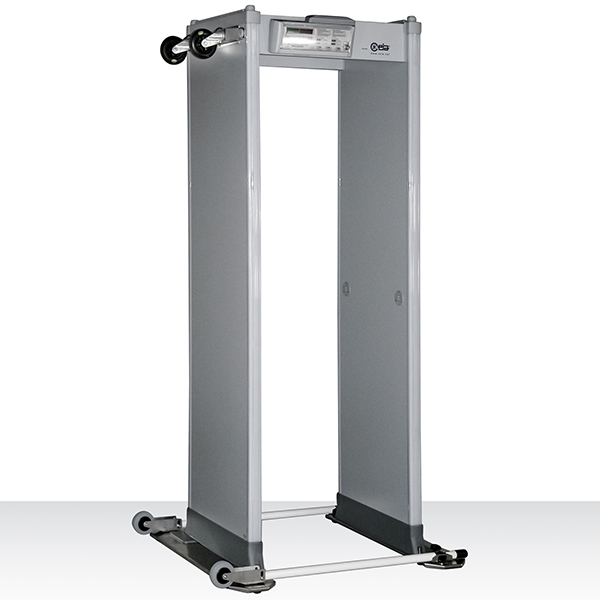

Walk-through gate structure

  • State-of-the-art, robust and washable panels
  • Protected against aging, weather and wear

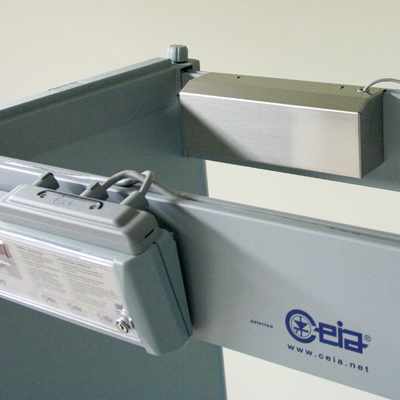

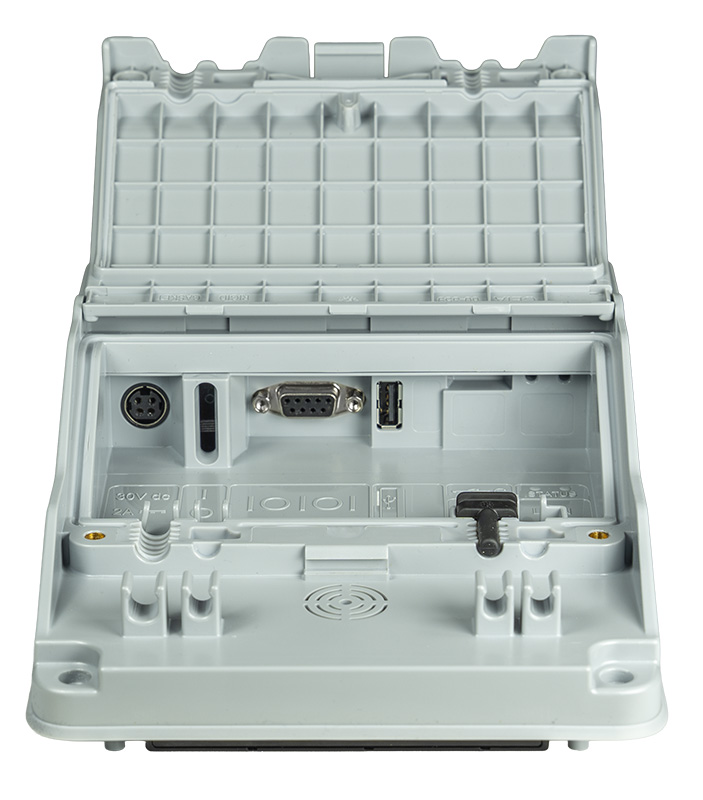

Central control unit

  • Ergonomic and robust design
  • High visibility alphanumeric display and programming keyboard
  • Made of advanced plastics or stainless steel and anti-vandalism construction (option)
  • Access to the front panel protected by hardware key and 3 levels of passwords

Alarm signaling

  • Visual signals

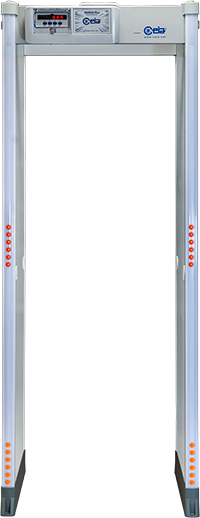

    • Multi-zone display bar for “height on person” localization
    • 4 light bars with selectable entry/exit and pacing indication
    • Green and red metering signals proportional to the mass of the detected target
  • Audio signals
    • 10 selectable continuous and pulsed tone plus 34 special tones
    • 10 selectable sound intensities ranging from 0 to 90 dbA at 1m

Type of signaling

  • Visual: Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
  • Visual zone indication: 20 x4 distinct zones (20x2 entry side and 20x2 exit side)

Programming

  • Up to 50 built-in security programs (up to 30 International Standards, up to 20 Customizable Levels)

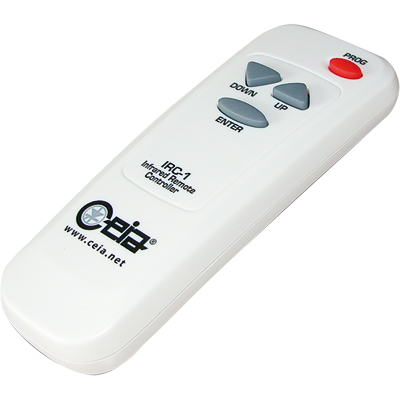

  • Remote via RS-232, Infrared Remote Control Unit, Bluetoothtm or Ethernet 10/100 base T (option) interface
  • Security level
    • International Standard (IS) command
    • Chip card
  • Local by Control Unit alphanumeric display and keyboard
  • Programming and chip-card access protected by user and super-user passwords

Operational features

  • Quick reset time as short as 0.2 seconds for high throughput rate
  • Very high detection speed (up to 50 ft/sec.)
  • Built-in operational and technical functional verifi cation
  • One-touch key reading of inbound, outbound and Security Level Data

Installation data

  • Automatic synchronisation between two or more metal detectors with distance as close as 12” without the use of external cables
  • Built-in floor sensitivity adjustment function
  • Automatic Installation function (OTS)

Environmental data

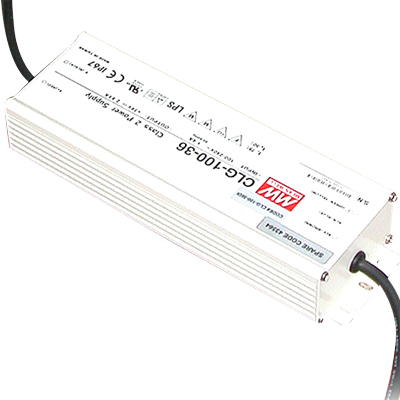

  • Power supply: 100…277V~ -10%, 47…63Hz, 40 VA typical consumption
  • Operating temperature: -4°F to 149°F (-34°F to 158°F upon request)
  • Storage temperature: -34°F to 158°F
  • Relative humidity: 0 to 95% (without condensation)

Certification and compliance

  • Complies with the applicable Standards for Law Enforcement and Correctional Facilities
  • Fully compliant with the NIJ-0601.02 Standard requirements
  • Compliant with and certified to the applicable Standards for Enhanced Metal Detectors (EMD)
  • Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
  • Compliant with applicable International Standards for electrical safety and EMC
  • Harmless to magnetic media (CD, tapes, etc.)
