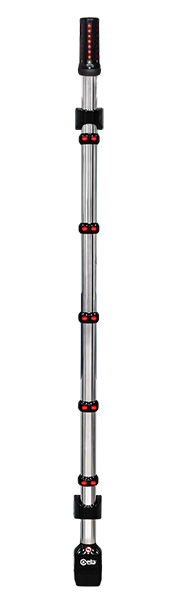

MSDW Plus (MRI Facilities)

Wall-Mounted Multi-Zone Ferromagnetic Detector for the safety of people and systems in MRI Facilities




Présentation de la société
Certification ISO 9001
  • Preventive detection of ferromagnetic and magnetized objects which can cause a “projectile effect” in the MRI room
  • High sensitivity and high immunity to external interferences
  • Accurate localization with multi-zone optical alarm signaling
  • Hygienic and durable design including non-magnetic AISI 316L stainless steel and high impact reinforced plastics
  • It can operate in zone I, II or III
  • Up to 100,000 events can be recorded locally (FIFO Logger)
  • Device monitoring, programming of operational parameters and downloading of data logger via mobile app or portable PC
  • Powered through POE Ethernet or with AC/DC external adapter
  • Multi-zone targeting indication
  • Detection over entire height of person
  • Advanced technology compact design
  • Extremely durable and reliable

Dépliant
Click To View English - US Brochure
Manuels
MSDW Plus (MRI Facilities)

The MSDW Plus is a detector able to detect ferromagnetic metal objects and magnets that can interact with the strong magnetic field generated by MRI instruments used for diagnostic exams. In the MRI room, this type of objects can become airborne as projectiles and can be dangerous for all people present in the room, patients and doctors as well as the machinery that can be damaged by the flying objects, even requiring to quench the magnet in the worst case.

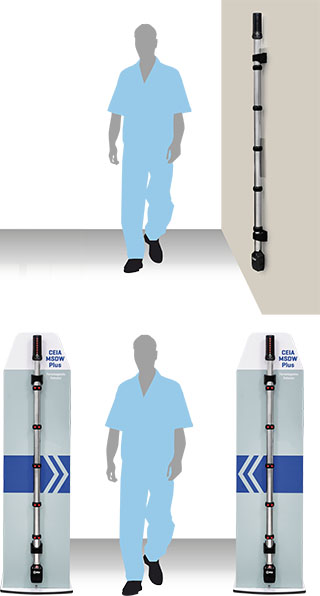

MSDW Plus (MRI Facilities) - detail

Standalone configuration - Pass-through configuration

Controls and indicators

  • Programming of operational parameters and downloading of data logger by smartphone, tablet or portable PC
  • Security: Password protected programming at User and Supervisor level
  • Color status and alarm warning light
    • Power Indicator LED (WHITE)
    • Alarm Indicator LED (RED LIGHT)
    • Full height alarm indication
    • Indication proportional to signal intensity
    • Alarm indication with different localization zones
    • Blinking light: diagnostics alarm
    • Connecting BT device in progress LED (BLUE LIGHT)
  • Alarm sounder
    • Alarm indication for target over the alarm threshold: Fixed tone, Tone proportional to signal intensity, Single pulse for pinpointing target
    • Alarm tone can be selected, continuous and intermittent
    • Self-diagnostics signal: intermittent tone
  • BT headset (ACCESSORY)
    • Copies all acoustic indications, with the addition of checking BT connection


Power supply

  • Via Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
  • Via connecting cable to external 24Vdc supply
  • Via external AC/DC power adapter [ACCESSORY]


Input/output

  • LAN port. Ethernet port, PoE Class 0 compliant to IEEE 802.3af/IEEE 802.3at Type 1
  • IN/OUT port. General purpose connector. Type: 8-pole M12 male. It supports the following connections:
    • Power supply input. Voltage: 24Vdc ±10%, 0.25A max
    • RS-232 serial communication lines
    • Relay output, activated in case of alarm or diagnosis alert. Selectable in normally open or normally closed operation. Rating: 0.4A max, 30Vdc.
    • Inhibition input. Galvanically isolated 2-pole connection. Rating: + 5 ÷ 12 Vdc.


Environmental conditions

  • Operating temperature -20°C to +60°C
  • Storage temperature -37°C to +60°C
  • Relative humidity 0 to 95%, non-condensing


Weight

  • 3.5 kg (Detector)


Dimensions

  • 90 mm x 73 mm x 1820 mm (WxDxH)


Shipping information

  • Dimensions (WxDxH) 200 mm x 160 mm x 2170 mm
  • Weight 10 kg


Degree of protection

  • IP55


Available accessories

  • BT wireless audio function activation. Includes a headset with AC/DC charger (88919)
  • External AC/DC adapter (117021)
  • App CEIA FMD+: the application allows monitoring of the device, adjustment of the settings and downloading of data logger:
    • Available on Google Play™. Requirements: Android™ 8.0 or later
    • Available on Apple store. Requirements: iOS 15.0 or later
    • BT interface available
  • MSD™X Distribution Box (117022)
    • Accessory to be used for the installation of MSDW Plus devices, designed to simplify the connections between detectors and external devices. It allows the connection of a single detector (Chain Head) or both (Chain Head and Chain Tail), in order to have a single power supply source
  • Standing mat: self-adhesive mat with indication of position and rotation (94590)


Certification & compliance

  • No-emission: safe for use for pacemakers and other medical implants
  • Compliant with the applicable electromagnetic Standards on Human Exposure and PMEDs such as glucometers, pacemakers, defibrillators, insulin pumps, neurological stimulators and cochlear implants
  • Compliant with and certified to the applicable International Standards for electrical safety and EMC
