HEALTHCARE Detection
PD240CH-Z4
Dual sensing Hand-Held Ferromagnetic Detector for patient screening prior to MRI scans
Company Presentation
Report Evaluation at 3-Tesla
- Large search area for faster and accurate screening operations
- Dual-Tone and Dual-Color display for high precision pinpointing
- Non-magnetic construction, suitable to operate in ZONE IV
- Three modes of operation allow for high-performance ferrous only, detection around the head and body, or full metal detection around the whole body
- Patient safety - Mitigates the risk of an RF burn occurring in the scanner due to either Ferrous or Non-Ferrous Metals
- Dual sensing - Capable of separately screening for either ferrous metallic items or any type of metallic item
- Audible and visual-magnitude alert settings
- Visual signaling combined with the audio provide feedback on the location and position of the object under alarm
Brochure

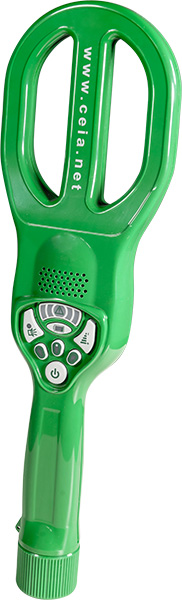

PD240CH-Z4 is a portable Hand-held Patient Screener that allows, according with the operator settings, the detection of magnetic metal masses only or magnetic and non-magnetic metals at the same time. The PD240CH-Z4 can be operated in Zone 1, 2, 3, 4.
Verified & Validated even in ZONE 4 (Test Report available on request)
PD240CH-Z4 is a portable Hand-held Patient Screener that allows, according with the operator settings, the detection of magnetic metal masses only or magnetic and non-magnetic metals at the same time.
The only hand-held MRI patient screening device capable of separately detecting both ferrous and non-ferrous metallic items, the PD240CH-Z4 provides protection from both adverse magnetic field interaction (projectile effect) and potential RF-induced metallic heating.
PD240CH-Z4 is designed to be entirely non-ferromagnetic, there¬fore it can be used inside the MRI room (zone 4) without the risk to be attracted or damaged by the magnets without comprising performance or creating a potential projectile risk.
Download Specifications
Power Supply
- 2 x AA size LS14500 very low ferromagnetic Lithium batteries

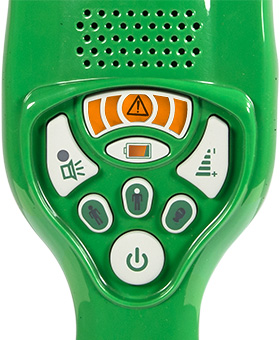

Control Panel
- Optical and acoustic signalling modes3-Level Sensitivity selection
- ALL METALS (magnetic and non-magnetic metals)
- BODY (small magnetic metals)
- HEAD (very small magnetic metals)
Detection and Operational Functions
- Customizable via HHMD Configuration tool
Battery
- Battery life (AA LS14500 batteries)
- ALL METALS > 100 hours
- BODY > 50 hours
- HEAD > 50 hours
Low battery indicator
Operating temperature
Storage temperature
Relative humidity
- 0 to 98% (without condensation)
Dimensions
- PD240CH-Z4 15.9” x 4.7” x 1.6”
- Carry Bag 17” x 13.4” x 4.1”
Weight
- PD240CH-Z4 0.93 lbs (with battery)
- Carry Bag 5 lbs (with equipment)
Compliance
- Conforms to the applicable international standards for safety, EMC and to the applicable CE regulations
Safety features
- Manufactured in shock-resistant technical polymers
- Full non-magnetic construction, suitable to operate in Zone 4 (with magnets up to 3T) and in proximity of the magnet
- Operability and safety of the device have been verified with magnets up to 3T. The test report is available on request

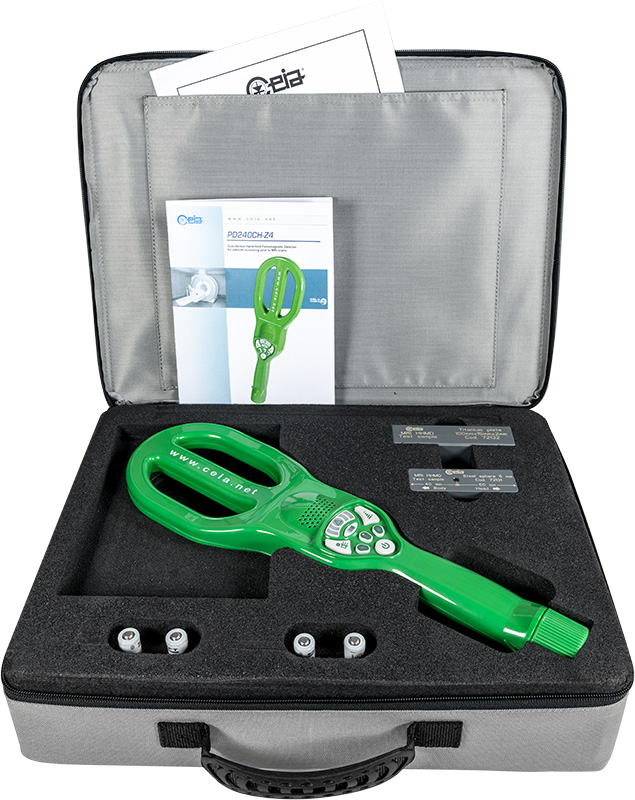

PD240CH-Z4 detecting set
- Hand-held Patient Screener
- 2+2 AA size non-magnetic batteries: part# 94810 (2 batteries)
- Detection Verification. Test Piece: part # 72131
- Discrimination Verification. Test Piece: part # 72132
- Instruction manual
- Certificate of Calibration
- Carry bag
Options / Accessories
- Patient screener configuration tool: setting up the Hand-held Patient Screener via USB PC-HHMD connecting cable and GUI application software: part # 63537
Analysis mode selection
- ALL METALS
- High sensitivity to all types of metals (implanted medical devices, prostheses, metal splinters)
- BODY
- High sensitivity to small ferromagnetic metals (ferromagnetic fragments, surgical instruments)
- Insensitive to large non-magnetic metal items (large prostheses)
- HEAD
- High sensitivity to very small ferromagnetic metals (small ferromagnetic fragments)
- Insensitive to medium size non-magnetic metal items (non-ferromagnetic dental implants, small prostheses)

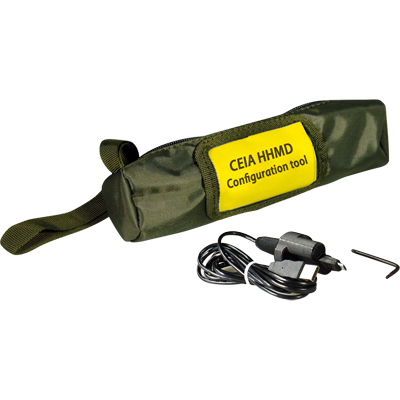

HHMD
Configuration tool
Part Code: # 63537
