PD240CH-Z4

Dual sensing Hand-Held Ferromagnetic Detector for patient screening prior to MRI scans







Company Presentation

Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure






Visit us at
AHRA
Virtual - United States of America
Aug 11 - 13, 2020
Exhibitor: CEIA USA Ltd.

See upcoming events >>

  • Large search area for faster and accurate screening operations
  • Dual-Tone and Dual-Color display for high precision pinpointing
  • Non-magnetic construction, suitable to operate in ZONE IV
  • Three modes of operation allow for high-performance ferrous only, detection around the head and body, or full metal detection around the whole body
  • Patient safety - Mitigates the risk of an RF burn occurring in the scanner due to either Ferrous or Non-Ferrous Metals
  • Dual sensing - Capable of separately screening for either ferrous metallic items or any type of metallic item
  • Audible and visual-magnitude alert settings
  • Visual signaling combined with the audio provide feedback on the location and position of the object under alarm

Brochures
Click To View GB Brochure


PD240CH-Z4

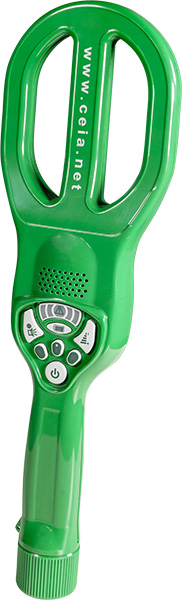

PD240CH-Z4 is a portable Hand-held Patient Screener that allows, according with the operator settings, the detection of magnetic metal masses only or magnetic and non-magnetic metals at the same time. The PD240CH-Z4 can be operated in Zone 1, 2, 3, 4.

Description

PD240CH-Z4 - detail

Verified & Validated even in ZONE 4 (Test Report available on request)

PD240CH-Z4 is a portable Hand-held Patient Screener that allows, according with the operator settings, the detection of magnetic metal masses only or magnetic and non-magnetic metals at the same time.

The only hand-held MRI patient screening device capable of separately detecting both ferrous and non-ferrous metallic items, the PD240CH-Z4 provides protection from both adverse magnetic field interaction and potential RF-induced metallic heating.

PD240CH-Z4 is designed to be entirely non-ferromagnetic, there¬fore it can be used inside the MRI room (zone 4) without the risk to be attracted or damaged by the magnets without comprising performance or creating a potential projectile risk.

Specifications

Power Supply

  • 2 x AA size LS14500 very low ferromagnetic Lithium batteries

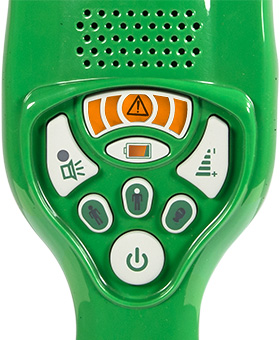

Control Panel

  • Optical and acoustic signalling modes3-Level Sensitivity selection
    • ALL METALS (magnetic and non-magnetic metals)
    • BODY (small magnetic metals)
    • HEAD (very small magnetic metals)


Detection and Operational Functions

  • Customizable via HHMD Configuration tool


Battery

  • Battery life (AA LS14500 batteries)
    • ALL METALS > 100 hours
    • BODY > 50 hours
    • HEAD > 50 hours
    Low battery indicator


Operating temperature

  • -40°C to +70°C


Storage temperature

  • -40°C to +80°C


Relative humidity

  • 0 to 98% (without condensation)


Dimensions

  • PD240CH-Z4 405 mm x 120 mm x 40 mm
  • Carry Bag 430 mm x 340 mm x 105 mm


Weight

  • PD240CH-Z4 420 g (with battery)
  • Carry Bag 2.3 Kg (with equipment)


Compliance

  • Conforms to the applicable international standards for safety, EMC and to the applicable CE regulations


Safety features

  • Manufactured in shock-resistant technical polymers
  • Full non-magnetic construction, suitable to operate in Zone 4 (with magnets up to 3T) and in proximity of the magnet
  • Operability and safety of the device have been verified with magnets up to 3T. The test report is available on request


PD240CH-Z4 detecting set

  • Hand-held Patient Screener
  • 2+2 AA size non-magnetic batteries: part# 94810 (2 batteries)
  • Detection Verification. Test Piece: part # 72131
  • Discrimination Verification. Test Piece: part # 72132
  • Instruction manual
  • Certificate of Calibration
  • Carry bag


Options / Accessories

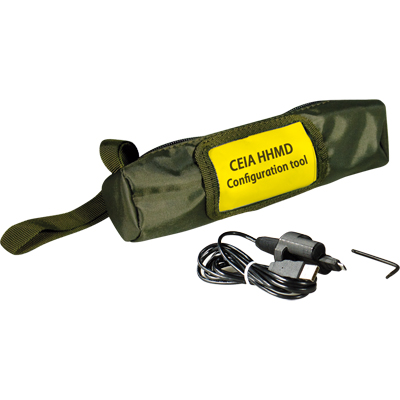

  • Patient screener configuration tool: setting up the Hand-held Patient Screener via USB PC-HHMD connecting cable and GUI application software: part # 63537


Analysis mode selection

  • ALL METALS
    • High sensitivity to all types of metals (implanted medical devices, prostheses, metal splinters)
    BODY
    • High sensitivity to small ferromagnetic metals (ferromagnetic fragments, surgical instruments)
    • Insensitive to large non-magnetic metal items (large prostheses)
    HEAD
    • High sensitivity to very small ferromagnetic metals (small ferromagnetic fragments)
    • Insensitive to medium size non-magnetic metal items (non-ferromagnetic dental implants, small prostheses)
