GROUND SEARCH Metal Detectors


GSMD-GPS

Module for acquiring Metal Detector and GPS signals







Visit us at
LAAD Defence & Security
Rio de Janeiro - Brazil
Apr 4 - 7, 2017
Exhibitor: CEIA S.p.A. - Booth O.38

SOFIC (Special Operations Forces Industry Conference)
Tampa, FL - United States of America
May 15 - 18, 2017
Exhibitor: CEIA USA Ltd. - Booth 230

See all upcoming events >>

  • Compatible with MIL-D1/DS Metal Detector.
  • Plugs directly to the GSMD Headphone Connector.
  • Powered by the GSMD, no external battery required.
  • No consumption when GSMD is turned off.
  • Low Power Consumption.
  • Embedded 32-bit microcomputer.
  • 72-channel GPS /GLONASS/Beidou high sensitivity receiver.
  • Up to 30 h data recording.
  • Status indication by multi-color LED.
  • High speed data download to a PC.
  • Data integrity is assured by certification.
  • Water resistant housing.


Manuals

GSMD-GPS

Description

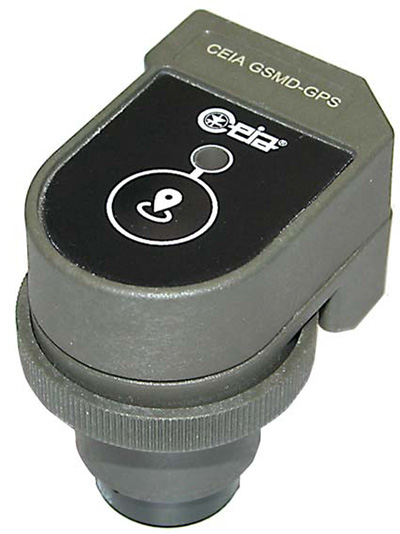

GSMD-GPS - detail

Push button for recording start/stop and for tagging a significant point

GSMD-GPS is a high performance compact accessory of compatible CEIA GSMDs (MILD1/ DS) designed to receive and record GPS data.
The device allows the operator to record the Metal Detector response and the GPS information (Date, Time, Latitude, Longitude) in real time during the search operations.
In addition, the module allows the operator to mark significant points.
Data are stored into a non-volatile memory at a rate of one event per second.
A connecting cable and a software utility are provided for downloading the memory content to a PC. Data are saved in .kml format (Google Earth compatible) and in .csv format.

Specifications

  • Operating Temperature: -46°C to 70°C
  • Storage Temperature: -55°C to 85°C
  • Power Consumption:
    • GSMD off: 0mA
    • GSMD on: 65mA @3V
  • Dimensions: 52.5mm x 37mm x 49.3 mm
  • Weight: 60g
  • Protection Degree (IEC 529): IP68 (down to 2 m)
  • GPS Receiver Technical Features:
    • 72-channel GPS/QZSS, GLONASS & BeiDou receiver
    • Accuracy: ±1,5m (typical); ± 1m (typical, with SBAS correction)
    • Sensitivity in navigation: -166dBm
    • Time to first Fix: 40 sec
  • Memory storage capacity: Up to approximately 30 hours of recording
