SECURITY Detection
EMIS-MAIL
Letter Bomb and IED Detector for mail and parcel inspection
Certified by Governmental Laboratories
- Automatic inspection of parcels and letters up to 45 cm in width and 7.5 cm thickness
- Detection of detonators, batteries, trigger circuits and other metal components of parcel bombs
- No alarm on metal staples, paper-clips and metal binding spirals

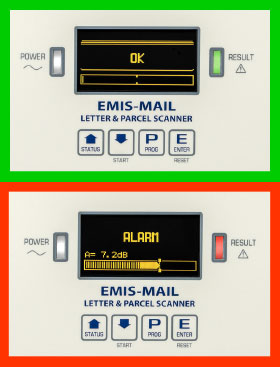

- Confirmation of signal (OK/ALARM) for each package inspected
- Ergonomic, compact design
- Operates on the mains power supply and with NiMH rechargeable batteries (optional)
- Integrated battery charger
- No calibration or periodic maintenance required
- Optional embedded detector of radioactive materials
Brochure
Manuals

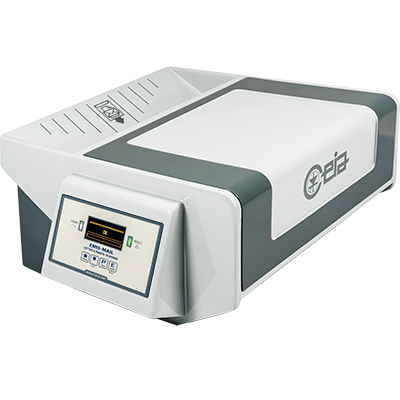

Letter Bomb and IED Detector for mail & parcel inspection.
Description
Easy installation and use
The EMIS-MAIL is designed to detect a wide variety of metal threat items including detonators, batteries, trigger circuits and other metal components of parcel bombs without false alarms for non-threat items such as metal staples, paper clips and metal binding spirals.
The EMIS-MAIL is very easy to use and provides a fast and automatic alarm/no alarm signal confirmation per each inspected package. Its compact, ergonomic design along with the electric and built-in NiMH rechargeable battery power supply allows for independent operation in a variety of locations. An optional embedded radioactive detector is also available for radioactive material threat detection.
The EMIS-MAIL is uniquely qualified to operate in a prison or correctional facility environment with specific settings available for prison parcel inspection. Along with meeting the strictest safety and security standards, EMIS-MAIL is also compliant with the NIJ-0602.02 Department of Justice Detection requirement standard.
Key features of the CEIA EMIS-MAIL include:- Ease of Installation and Setup
- Ease and Speed of System Use with Limited Screener Training Required
- Automatic Inspection of Parcels and Letters up to 18” Wide and 3” Thick
- No Calibration or Periodic Maintenance Required
- Independent Operation with Mains Power Supply or Built-in NiMH Rechargeable Batteries
Specifications
General characteristics |
- High inspection speed
- No alarm on metal staples, paper-clips and metal binding spirals
- Very high discrimination of paper-clips, metal staples and binding spirals
- Digital programming with high-resolution OLED graphic display
- Optical and acoustic alarm signalling
- Integrated autodiagnosis system
- Permanent memory storage of operating parameters without back-up batteries
- Independent operation, with mains power supply or batteries (optional)
- Specific Settings available for Prison parcels inspection (Dept. of Justice applications)
- Compliant with NIJ-0602.02 Dept. of Justice Detection requirements
|
Structure |
- Transit opening 18” x 3” (450 mm x 75 mm)
- Degree of protection IP40
|
Dimensions |
- 18.1” x 22” x 10” (450 mm x 565 mm x 250 mm)
|
Weight |
|
Power supply |
- Voltage 100-240 V~ single-phase – 50-60 Hz with external AC/DC adapter
- Current 1.07 A max
- Battery operation (optional)
- 6 x 1.2V NiMH size D
- Battery life: 12 hours
- Battery-charger incorporated: Recharging time 6 hours
|
Programming |
- Type
- Local: via integrated keypad
- Remote: via Bluetooth, RS232
- Memory capacity: 10.000 events
|
Signalling |
- Acoustic: Internal buzzer
- Optical
- High-contrast OLED graphic display with bar-graph indication
- LED indicators on the control panel
- RED: Alarm, Autodiagnosis
- GREEN: OK, Power supply
- BLUE: Alarm, detection of radioactive substances
|
Security/safety |
- Access to programming protected by password
- Galvanic insulation from mains voltage
|
Communication |
- Incorporated Bluetooth interface, RS232
|
Environmental data |
- Operating Temperature: 14°F to 122°F (-10 to +50 °C)
- Storage Temperature: -13°F to 140°F (-25 to +60 °C)
- Relative humidity: 5 to 90 %, without condensation
|
Conformity (Test Reports available upon request) |
- Safety
- EN61010-1
- ACGIH, 2014 Threshold Limit Value (TLV)
- IEEE C95.1-2005
- EC-Rec. 1999/519/EC
- EN 50364:2010
- EMC
- RED
- EN300330: Short Range Devices (SRD)
|
NATO stock number |
|
Options

Radiation detection module

IXC module
Integrated Web-server
100base-T Ethernet
Full Speed USB interface
Wi-Fi 802.11b/g
Accessories

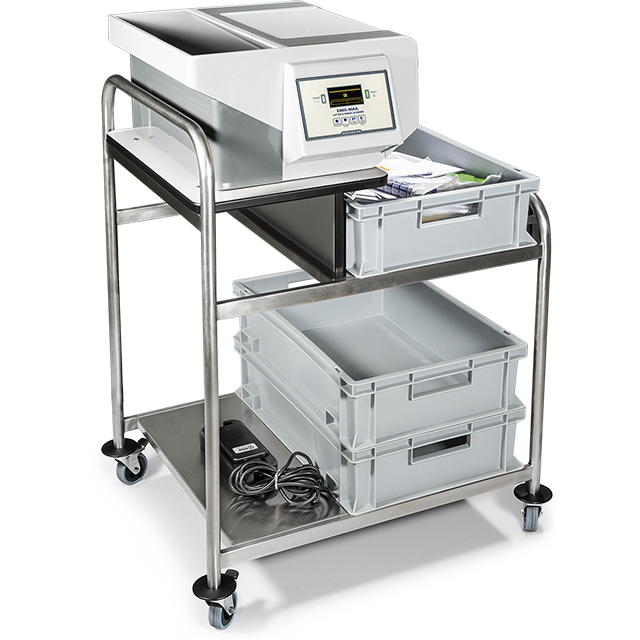

EMIS-MAIL Mobile Station
Robust Stainless-Steel Cart, specially designed for optimal use of EMIS-MAIL.
Includes up to three Plastic Boxes for mail collection.
Wheels and locking brakes allow comfortable mobile deployment.
Part Code: # 76332
Documents
Brochure
Manuals
Certificates
Technical drawings
