SMD601 Plus
Most sensitive Multi-Zone Metal Detector for law enforcement and correctional facilities
SMD601 Plus
Most sensitive Multi-Zone Metal Detector for law enforcement and correctional facilities
- Most sensitive WTMD, fully compliant with the NIJ-0601.02 and NIJ-0601.03 Standards
- Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
- Accurate pinpointing of individual and multiple metal targets
- Exceptional immunity to external interferences
- New mechanical structure with high protection degree
- Integrated correctional profiling system (optional)
- Unmatched reliability
Folleto
Manuales

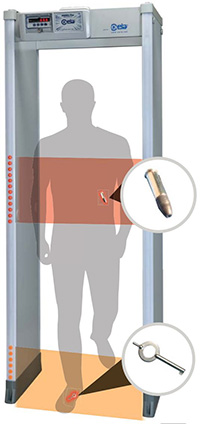

The SMD601 Plus is a very high sensitive Walk-Through Metal Detector. A full-height light bar displays the location of the detected metal masses in transit. This results in rapid identification of threats and a reduction or elimination of the need for manual searches. SMD601 Plus detects even the smallest metal items anywhere on or in the body.

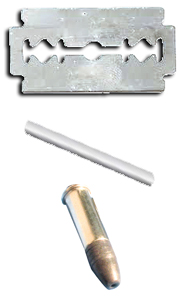

Ultra-High Sensitivity capability. Examples of additional detectable targets: Disposable Razor Blades; Special metal items (e.g. AISI 300 series Stainless Steel); Bullets
Fully compliant with the NIJ-0601.02 and NIJ-0601.03 standards
The SMD601 Plus further extends the detection sensitivity of the previous SMD601 to metal threats before considered undetectable due to their minimal dimensions and metal composition similar to the ones specified in the new NIJ-0601.03 Standard.
Accurate detection of all metallic threat items
- Very accurate pinpointing of individual and multiple metal targets
- Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
- Built-in programs to screen visitors and staff for weapons and contraband
New certified ip66 control unit enclosure
- Total compatibility with previous control units
- Robust structure through the use of high-performance polymers for the construction of housing
- Waterproof / Dustproof: IP66 compliant (IEC 60529)
- Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
- Display made with specific polymer to improve the visibility of the LEDs by increasing the definition and clarity
Unique alarm signalling
- 20 vertical localization zones
- High visibility of the control unit and of the zone indication, independent from the operator position and the installation environment
- Flexible Acoustic Alarm Signalling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
- 10 Alarm Volume Levels
- High Precision Transit Counter: In-Bound transits; Out-Bound transits; Alarm rate
Most powerful and versatile security features
- Over 40 built-in Security Programs: Up to 22 pre-programmed Security Programs; Up to 20 user programmable Security Programs
- Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc.) and security level selection.
- Any security standard can be enhanced with selectable random alarm probability
Chip card system
The system allows Security Management to set the Security Level quickly, reliably and without having to program the device in any way.
Download Specifications
Gate structure
- State-of-the-art, robust and washable panels
- Antivandalic and antitampering IP66 control unit
- Embedded high precision transit counters (2-beam photocells)
- Antitampering ON/OFF switch
- Protected against aging, weather and wear
Operational features
- High discrimination and transit flow rates five or more times greater than other metal detection systems
- Quick reset time as short as 0.2 seconds for high throughput rate
- Very high detection speed (up to 15 m/sec.)
- Built-in operational functional verification (OFV)
- One-touch key reading of inbound, outbound and Security Level Data
Quality
- Continuous self diagnostic system
- Proven reliability
- No periodic re-calibration and preventive maintenance required
- No scheduled maintenance
- Fully digital design
Alarm signalling
- Multi-zone display bar for “height on person” localization
- 20 vertical localization zones
- 2 display bars programmable as zone indicators and/or pacing lights
- Specific shoe alarm color indication
- Green and red metering signals proportional to the mass of the detected target
- 10 selectable continuous and pulsed tone plus 34 special tones
- 10 selectable sound intensities ranging from 0 to 90 dbA at 1m
- Random alarm capability with independent counters, alarm tone and alarm volume
- Met-Identity technology (separate Ferrous and Non-Ferrous alarm signaling)
Type of signalling
- Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
- 20 x4 distinct zones (20x2 entry side and 20x2 exit side)
Programming
- Over 40 built-in Security Programs
- Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
- Security level: International Standard (IS) command / Chip card
- Local by Control Unit alphanumeric display and keyboard
- Programming and chip card access protected by user and super-user passwords
Installation data
- Automatic synchronisation between two or more metal detectors with distance of down to 5 cm without the use of external cables
- One Touch Automatic Self Installation (OTS)
Certification and compliance
- Fully compliant with the NIJ-0601.02 Standard requirements
- Complies with the applicable Standards for Law Enforcement and Correctional Facilities
- Compliant with applicable International Standards for electrical safety and EMC
- Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
- Harmless to magnetic media (CD, tapes, etc.)
Environmental data
- Powered by safe low voltage DC through external switching power supply adapter
- Power Supply : 100…277V~ ±10%, 47…63Hz, 50 VA typical consumption
- Operating temperature: -20°C to +65°C (-37°C to +70°C upon request)
- Storage temperature: -37°C to +70°C
- Relative humidity: 0 to 95% (without condensation)
Comprehensive support
- CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer site.
![APSiM3Plus CEIA Metal Detectors APSiM3Plus CEIA Metal Detectors](images/parts/o008.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
APSiM3Plus
Servidor web y registrador, protección bajo voltaje y cargador de batería incorporados
Código producto: APSiM3Plus/P
![Crossbar battery back-up CEIA Metal Detectors Crossbar battery back-up CEIA Metal Detectors](images/parts/o010.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Crossbar battery back-up
Batería de reserva en travesaño de larga duración
Código producto:
- 55681
- Protection cover: 75122
![Embedded battery back-up and charger CEIA Metal Detectors Embedded battery back-up and charger CEIA Metal Detectors](images/parts/o024.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Embedded battery back-up and charger
Código producto: APSM2Plus/P
![IP65 Configuration CEIA Metal Detectors IP65 Configuration CEIA Metal Detectors](images/parts/o021.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
IP65 Configuration
Esta opción incluye kits de resistencia a fenómenos atmosféricos y anti-vandalismo
![Chip cards CEIA Metal Detectors Chip cards CEIA Metal Detectors](images/parts/a019.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Chip cards
Tarjetas chip para la selección sencilla y segura de los niveles de seguridad y la configuración de parámetros.
![Integrated camera system CEIA Metal Detectors Integrated camera system CEIA Metal Detectors](images/parts/a025.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Integrated camera system
Código producto: 54253
![IRC-1 CEIA Metal Detectors IRC-1 CEIA Metal Detectors](images/parts/a020.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
IRC-1
Código producto: # 47180
![Kit FGA and TFV CEIA Metal Detectors Kit FGA and TFV CEIA Metal Detectors](images/parts/a017.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Kit FGA and TFV
El técnico puede utilizar el kit para verificar con rapidez la funcionalidad del Detector de Metales y para regular la sensibilidad al piso.
- Esfera AISI 420, ø44.45mm.
- chip card de programación prueba FGA (""Technical Level - FLOOR GAIN ADJUSTMENT"")
- chip card de programación prueba TFV (""Technical Level - FUNCTIONALITY VERIFICATION"")
- instrucciones de uso
- maletín contenedor
![Kit OFV CEIA Metal Detectors Kit OFV CEIA Metal Detectors](images/parts/a016.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Kit OFV
El operador puede utilizar el kit para verificar con rapidez la funcionalidad del detector de metales. Esfera AISI 420, ø44.45mm.
- chip card de programación
- instrucciones de uso
- maletín contenedor
![MBSU-2 CEIA Metal Detectors MBSU-2 CEIA Metal Detectors](images/parts/a004.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
MBSU-2
Alimentación eléctrica independiente de larga duración, en caja de acero inoxidable impermeable, con cargador rápido incorporado
Código producto: # MBSU-2
![MBSU-LWSC CEIA Metal Detectors MBSU-LWSC CEIA Metal Detectors](images/parts/a068.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
MBSU-LWSC
Código producto: #MBSU-LWSC
![MD-Scope CEIA Metal Detectors MD-Scope CEIA Metal Detectors](images/parts/a006.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
MD-Scope
Potente software de instalación y servicio basado en PC. Incluye funciones de terminal y osciloscopio.
Código producto: # MD-SCOPE2
![MD-WHK CEIA Metal Detectors MD-WHK CEIA Metal Detectors](images/parts/a066.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
MD-WHK
Código producto: MD-WHK
![Metal Detector Divesting Table CEIA Metal Detectors Metal Detector Divesting Table CEIA Metal Detectors](images/parts/a001.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Metal Detector Divesting Table
Este accesorio, diseñado para colocarlo al lado del Detector de Metales a tránsito, ofrece una plataforma de apoyo para el depósito temporal de objetos personales metálicos de indudable naturaleza, y por lo tanto no destinados al análisis con rayos X (monedas, llaves,...).
El perfilado especial de la plataforma contribuye a mantener los objetos depositados lejos del Detector de Metales para evitar cualquier interferencia posible.
Dimensiones: 610 x 360 x 975 mm.
Código producto: 610mm # 18074
1200mm # 39491
Outdoor version 1200 mm # 67021
![NIJ0601.02SO/MO -SK CEIA Metal Detectors NIJ0601.02SO/MO -SK CEIA Metal Detectors](images/parts/a031.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)

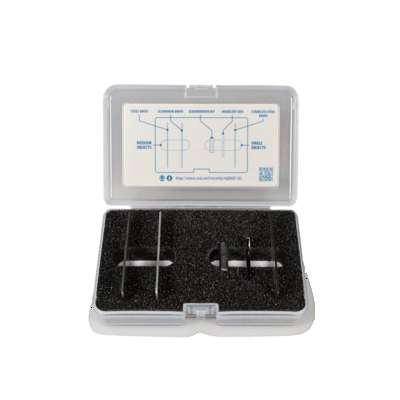

NIJ0601.02SO/MO -SK
![RCU2 CEIA Metal Detectors RCU2 CEIA Metal Detectors](images/parts/a005.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
RCU2
Unidad de control remoto de señalización de alarmas y programación de los detectores de metales de tránsito peatonal CEIA.
Código producto: # RCU2
![TDU CEIA Metal Detectors TDU CEIA Metal Detectors](images/parts/a067.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
TDU
Código producto: TDU/P
![Test samples kit Gun assembled CEIA Metal Detectors Test samples kit Gun assembled CEIA Metal Detectors](images/parts/a024.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Test samples kit Gun assembled
Código producto: # EMD-SK-GAL
![Test samples kit Gun Disassembled CEIA Metal Detectors Test samples kit Gun Disassembled CEIA Metal Detectors](images/parts/a003.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Test samples kit Gun Disassembled
Código producto: # EMD-SK-GDML
![Top Power Cable CEIA Metal Detectors Top Power Cable CEIA Metal Detectors](images/parts/a070.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Top Power Cable
![TSU CEIA Metal Detectors TSU CEIA Metal Detectors](images/parts/a069.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)

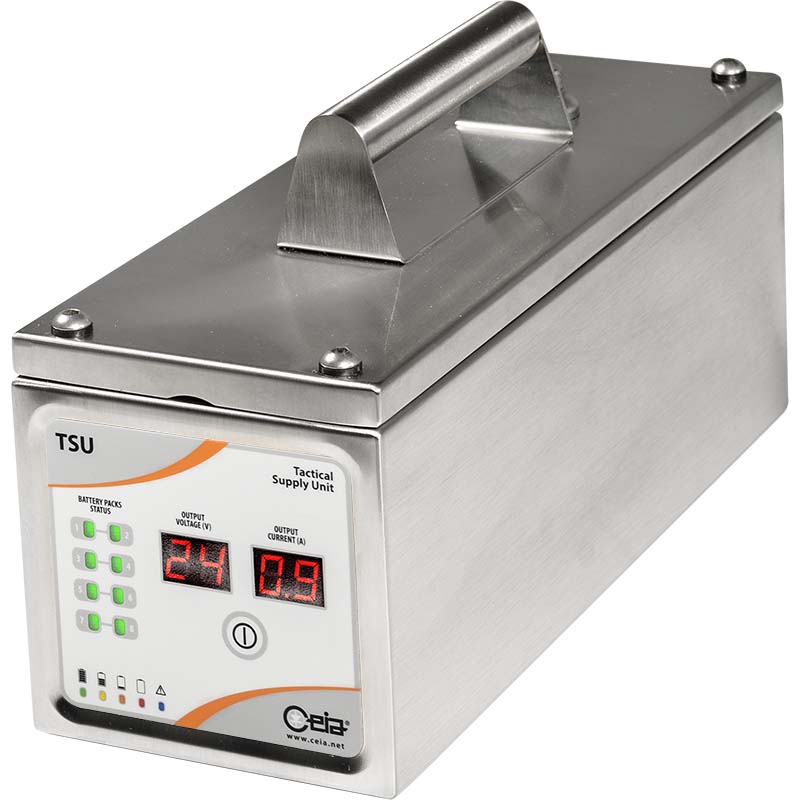

TSU
Código producto: # TSU
![Upper Connection Module CEIA Metal Detectors Upper Connection Module CEIA Metal Detectors](images/parts/a030.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Upper Connection Module
Este cable de alargue permite la conexión de la alimentación eléctrica y la comunicación serie con ordenadores personales o accesorios CEIA, como RCU-2.
Código producto: # 46650
![Wheel Kit - Long Range CEIA Metal Detectors Wheel Kit - Long Range CEIA Metal Detectors](images/parts/a043.jpg?random=cdccb3311f52423a9e15b2b0fe5722c9)
Wheel Kit - Long Range
Código producto: # 70796
