TE
The most advanced digital bar metal detector
- Ultra high Sensitivity to all magnetic and non-magnetic metals, including stainless steel
- Unbreakable detection surface due to Stainless Steel Bars protection
- Compact and robust construction
- Highest immunity and protection against electrostatic discharges
- Wide Detection Speed range, from 1 up to 600 m/min
- Complete selection range: more than 50 models available
- Easy installation and setting
- High product temperature working compliance
- Stand-alone and separate control unit version (RC) available

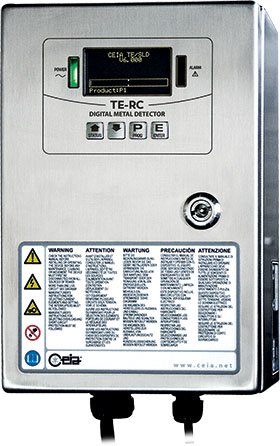

Separate control unit version (RC) available; IP65 high degree of protection
- Fully Digital Programming
- Internal data logging with data and timestamp for Quality Control
- Password protected with separate user and engineer level
- BT communication for setting and maintenance through external PC
- Autolearn function for automatic setting of the maximum sensitivity in dry and wet conditions
- Built-in function for automatic measurement of the external interferences
Download Specifications
Structures
Inputs / Outputs
- Voltage: 100-240 V~ 1ph - 50-60 Hz
- Current: 1,5 A max
Programming
- Type
- Local: through built-in keyboard
- Remote: Bluetooth
- Data capabilities
- Internal memory: 1000 events, 20 products
Signalling
- Audible
- Visual
- Graphic display with bar-graph indication
- Bright indicators on Control Panel
- RED: Alarm or fault
- GREEN: Line present
Security and safety
- Programming access: 2 access levels: Operator and Supervisor
- Galvanic isolation of line voltage
- Low operating voltage: No danger for the operator
- In compliance with international standards of safety and radio interference
Control inputs
- Connection for Alarm reset or Encoder input
- BT interface Incorporated
Outputs
- 1 programmable relay Alarm relay
Environmental data
- Temperature
- Operating -10 to +50 °C
- Storage -25 to +60 °C
- Relative humidity: 5 to 90 %, without condensation
