  • Ultra high sensitivity to all magnetic and non-magnetic metals, including stainless steel
  • Wide detection speed range: from 1 up to 1500 m/min
  • Durable detection surface
  • Internal data logging with data and timestamp for quality control
  • Compact and robust construction
  • Very high electrical and mechanical immunity
  • Remote display and keyboard unit available (RCU)
  • Continuous autotest and diagnostic
  • Automatic measurement of the installation quality and environmental compatibility
  • Wide operating temperature range
  • Stand-alone and separate control unit version (RC) available
TE

Depliant
Click To View English Brochure


The TE Digital Metal Detectors are the ideal means of protection and quality control for production lines against accidental damage caused by fragments of metal which can enter the manufacturing process along with the material under inspection.

TE - detail

IP65 high degree of protection

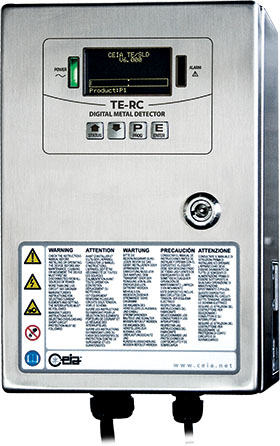

Separate control unit available (duplicate display and keyboard of control unit)

The TE Digital Metal Detectors are the ideal means of protection and quality control for production lines against accidental damage caused by fragments of metal which can enter the manufacturing process along with the material under inspection.

Digital signal analysis allows the user to optimize detection with respect to the product’s speed and the metals to be intercepted, thus obtaining the best possible immunity to any external interference.

The TE Metal Detector is tested and compliant with the applicable Electrical Safety and Electromagnetic Compatibility standards.

CEIA textile quality control

CEIA began the design and production of solid state metal detectors for textile machinery protection right from its foundation, in the 1960s, offering since then top performances in terms of sensitivity and immunity to environmental interference. To date, tens of thousands of CEIA TE devices, installed all over the world, protect textile machineries from possible damage caused by the presence of metal contaminants, with uninterrupted reliability and constant performance.

Metal fragments, in the form of small objects, such as pins, needles or staples, accidentally present in the fabric in the various processing phases, can cause scratches, dents, or gouges in the machinery, for instance on the calenders roller surfaces, leading to compromised fabric quality and permanent damage. In these cases, the loss of production and the repair operations involve significant costs.

By utilizing CEIA metal detectors, textile manufacturers can safeguard their machinery from metal contamination. CEIA TE detectors enable early detection of the metal contaminants and automatic shutdown of the machine, halting the roller rotation to prevent further contact with the metal object. This not only protects the machinery but also ensures fabric quality and uninterrupted operation of the textile production process.

Programming features

  • Internal data logging with data and timestamp for Quality Control
  • Password protected with separate user and engineer level
  • BT Communication for setting and maintenance through external PC
  • Autolearn function for automatic setting of the maximum sensitivity in dry and wet conditions
  • Built-in function for automatic measurement of the external interferences
