INDUSTRIAL Metal Detectors
THS/FFV21 series
Free-fall integrated system with Metal Detector for granular and powder products
Fully
HACCP and GMP
compliant

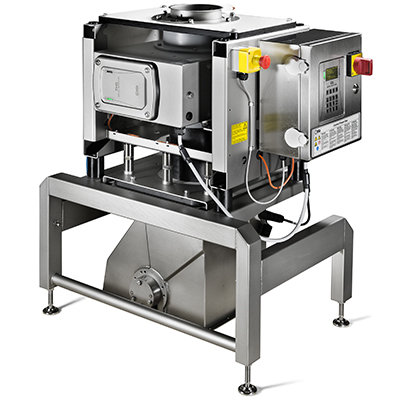

THS/FFV21 series
Free-fall integrated system with Metal Detector for granular and powder products
- THS/FFV21 Series Integrated System is especially designed for the inspection of powder products and the elimination of any contaminating metals, whether magnetic, non-magnetic or stainless-steel
- The carefully selected materials used in construction of the THS/FFV21-S do not interact with food products, and thus do not modify or alter their composition
- The design of the system incorporates a fast reject valve drive response time to detect and reject the contaminant without slowing down the product flow
- The construction guarantees quick, easy cleaning of the components that are in contact with the product. The technological choices made by CEIA allow the parts in contact with the product to be disassembled and maintained in a short time
- ATEX ZONE 21 available on demand
- Available inlet aperture diameters: 75-100-150-200 mm
- Advanced Autotest function
- Robust: AISI 316L stainless steel construction
- Fail-safe operations
- Fast detection and rejection speed
- Multi-spectrum technology: Unique metal detection technology that both optimizes sensitivity to all metal contaminants and minimizes product effect in a very wide range of possible products
Brochures
Manuals
CEIA THS/FFV21 Integrated System is especially designed for the inspection of granular and powder products and the elimination of any contaminating metals, whether magnetic, non-magnetic or stainless-steel.
AUTOTEST and AUTO-QC Test Functions
Industrial Metal Detectors for food application are usually equipped with basic diagnostic functions based on their emitter/receiver signals monitoring.
This type of diagnosis is not able to detect aging as well as thermal drift and other sources of minor deviations. Any of the above may result on a sensitivity reduction that could lead to non-detection of metal contamination.
THS/21 & THS/MS21 series Metal Detectors are natively equipped with an advanced AUTOTEST function ensuring the following features:- Continuous background real-time monitoring and stabilization of the amplitude and phase response for each working frequency
- Continuous compensation of environmental and age-related changes
- Immediate alerting in case of permanent out of standard conditions
In addition to the AUTOTEST function, THS/21 and THS/MS21 detectors can be programmed so that periodic verifications of the calibration are carried out automatically. This feature is called AUTO-QC TEST.
The AUTO-QC Test allows the manual verification of calibration by the operator to be reduced or eliminated.
The Metal Detector provides a programmable output that can be connected to the conveyor line stop during the AUTO-QC test to avoid product ejection and waste during automatic test.
CEIA AUTO-QC TEST provides an effective calibration check along with a programmable 0 ÷ 100 % reduction of the manual verifications, resulting in a corresponding reduction of:- Labour cost
- Accidental product contamination
- Product waste
