INDUSTRIAL Metal Detectors

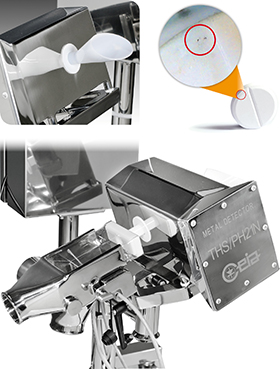

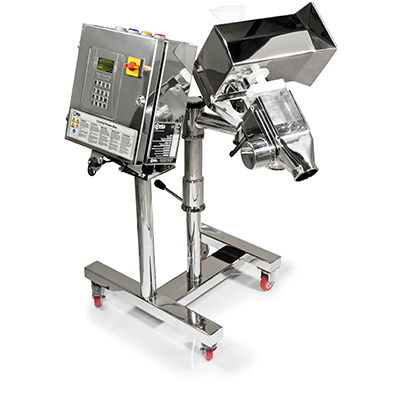

THS/PH21®N-D25
Specific inspection against tiny metal particle contamination
- Unsurpassed Detection
- Best Product Quality
- Round aperture
- Applications: R&D analysis; Rework confirmation; Root cause analysis assistance; New product specification
Description
Max Throughput Rates are related to the shape and to the size of the tablets
Examples of throughput
- Tilt Angle: 35°
- Max Throughput Rates are related to the shape and to the size of the tablets
Options

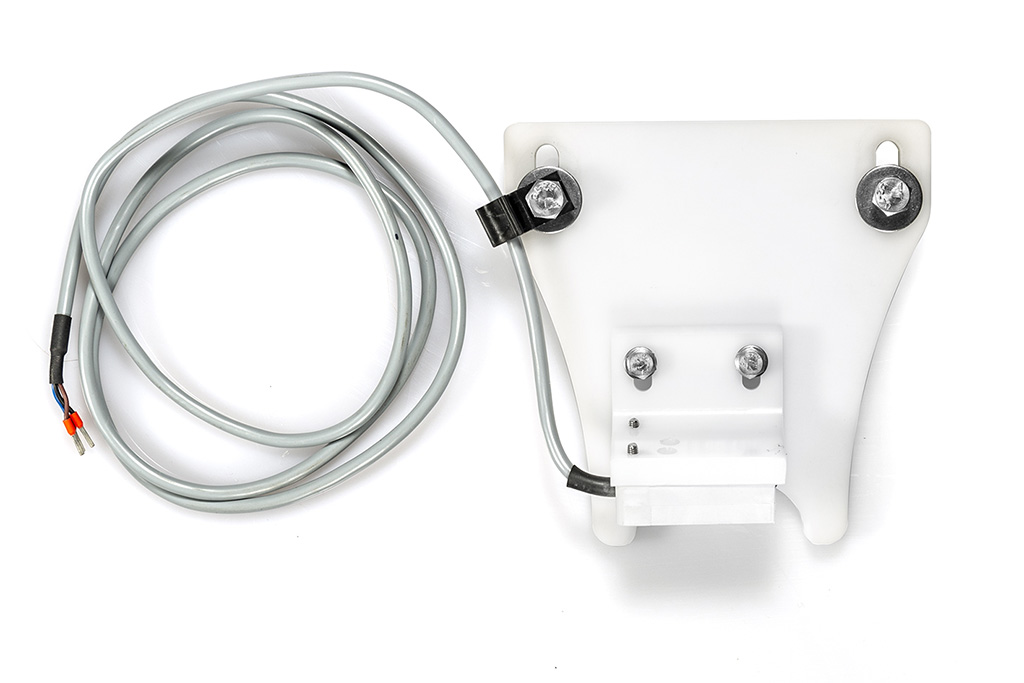

Bin full sensor
Added sensor that activates when the reject bin is full with rejected products. When activated, an alarm message on the detector’s display warns the operator of the full condition.
Part Code: Part #86905

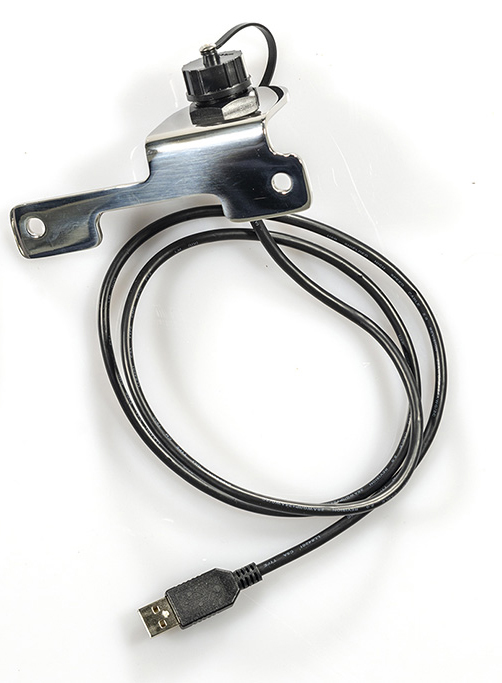

External USB plug kit
Allows USB connector of the IXC card to be mounted outside of the Power Control Box.
Part Code: Part #55613

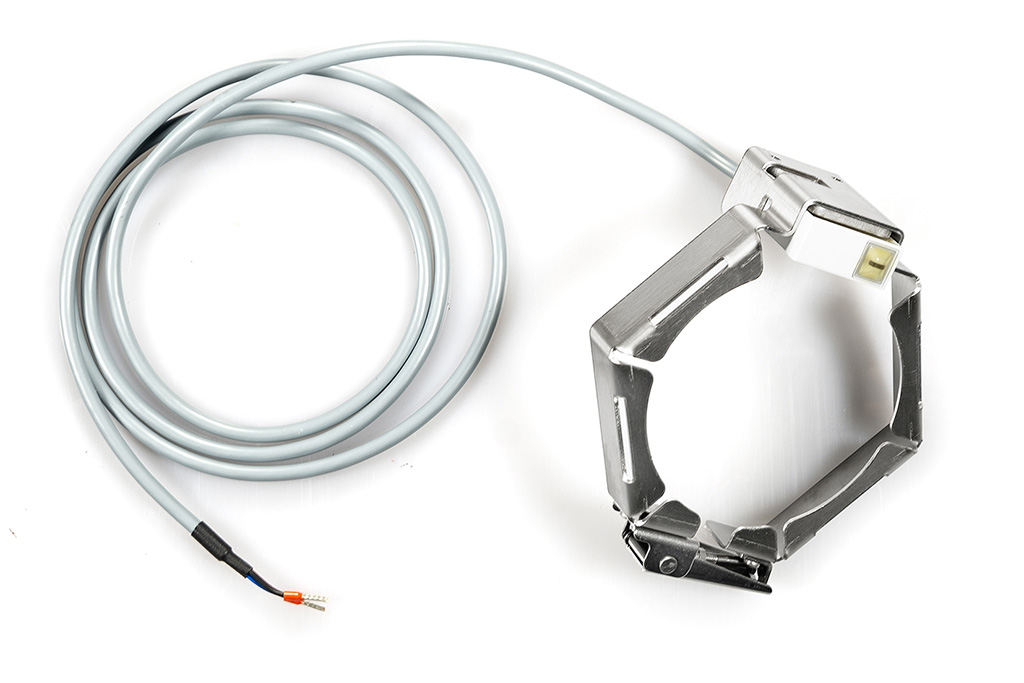

Infeed jam sensor
Added sensor installed between the infeed conveyor and the probe. Provides alarm message in case of product jamming.
Part Code: Part #63773

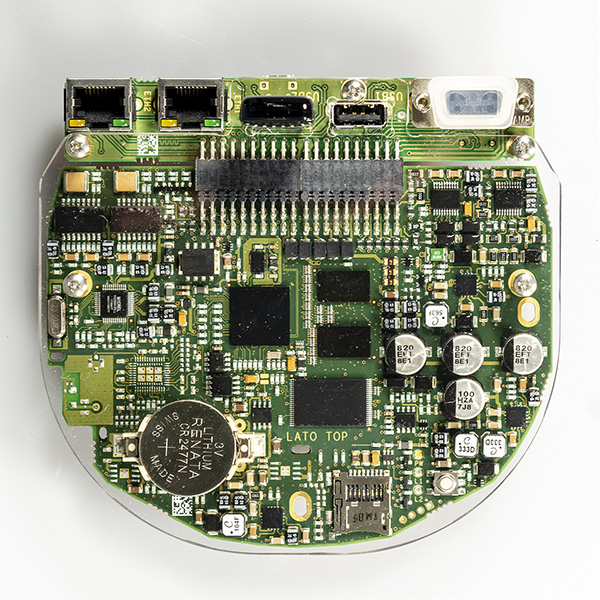

IXC Card with internal USB key
Additional card that provides the detector a network Interface, (Ethernet or WiFi), integrated Webserver and a USB interface to save or load data relevant to the products, configuration, and events. This option also includes internal memory up to 100.000 events.
Part Code: Part #57194
Accessories

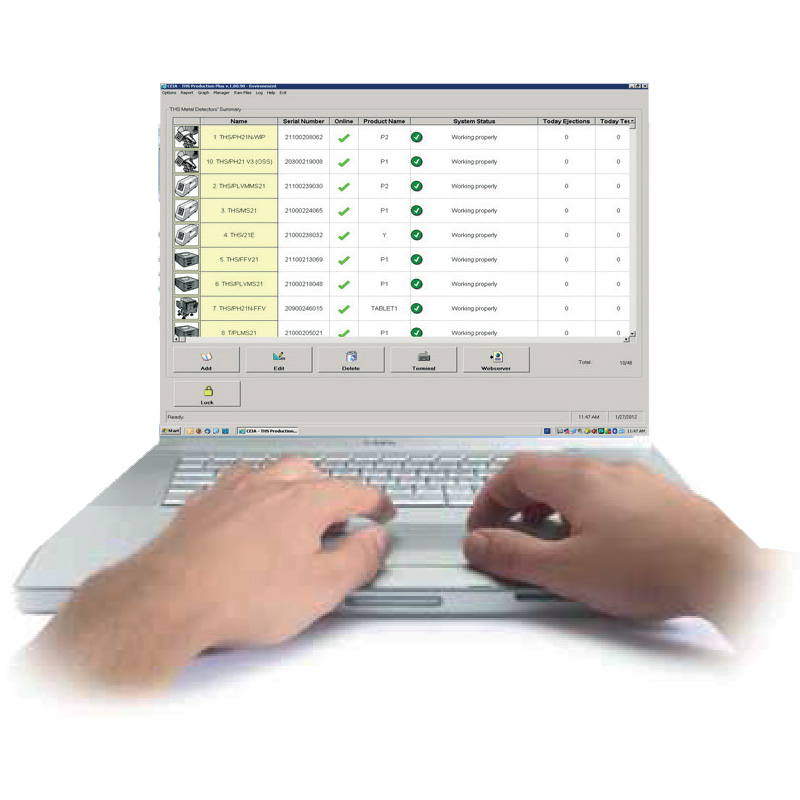

License for THS Production
License (enabling code) for each detector to be connected to THS Production software. Once enabled, it allows the operator to activate the THS Production functions.
Part Code: Part #LIC_THS_PROD

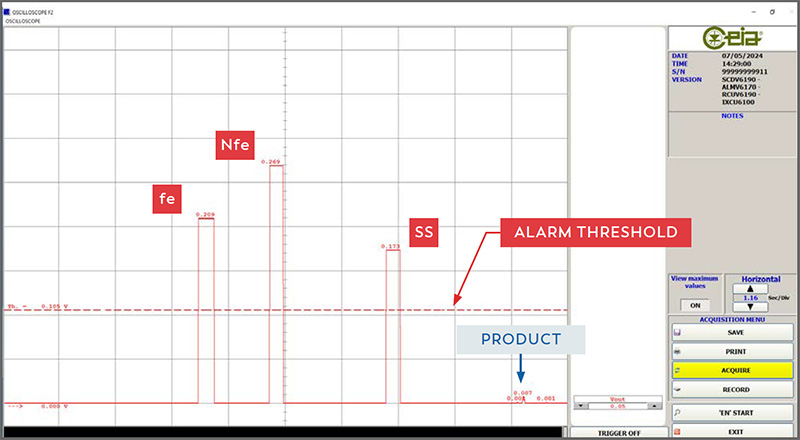

MDSCOPE
Software diagnostic tool (that can be installed on the user’s PC). Allows remote programming, signal input/output, review/analysis of alarms and amplitude of signal(s), and oscilloscope functionalities. Includes software, connector cable and a USB key.
Part Code: Part #MD-SCOPE2
Periodic Maintenance Kit
Kit includes:
- One (1) rejector flap
- One (1) Infeed Conveyor
- One (1) Intermediate Conveyor
Part Code: Part #58761

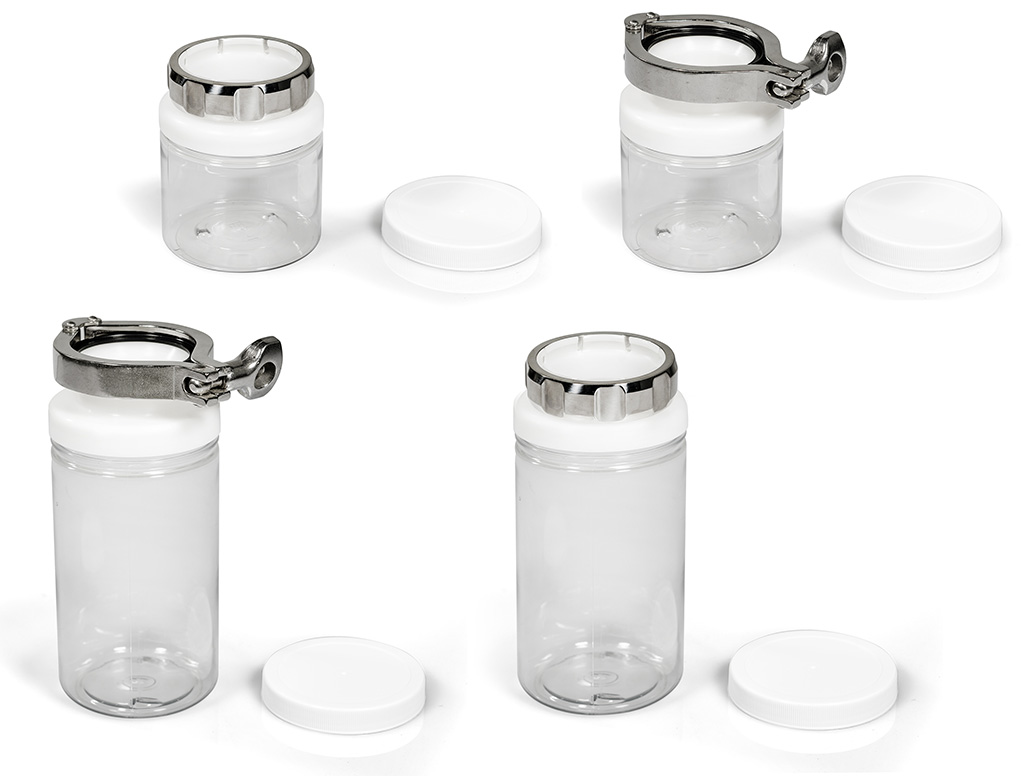

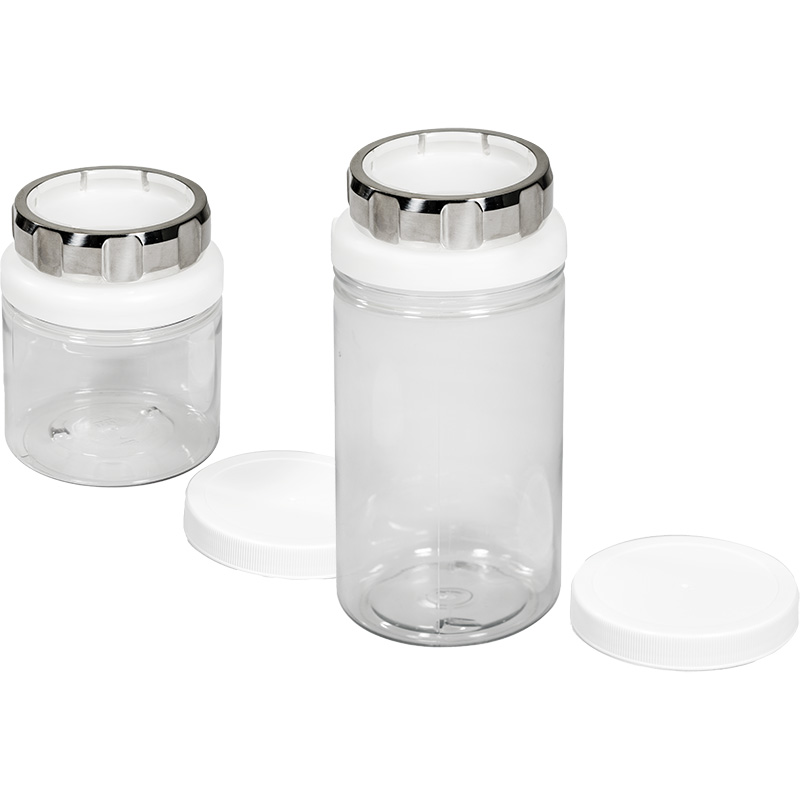

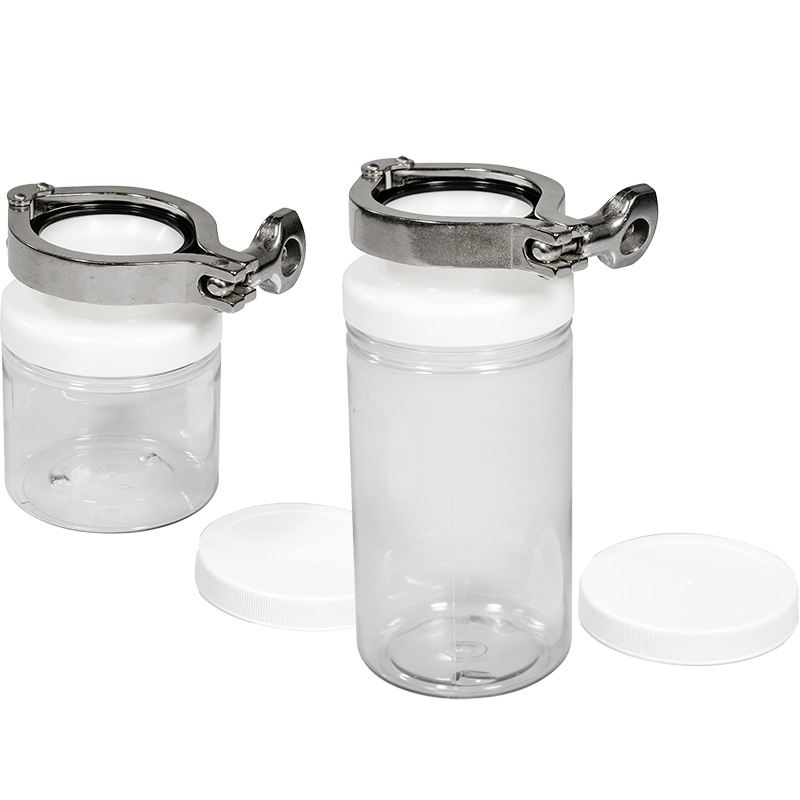

Set-aside material containers
Part Code: 500 ml Part #38699 STANDARD
950 ml Part #38700 STANDARD
500 ml Part #38110 TRICLAMP/DT/WIP
950 ml Part #38113 TRICLAMP/DT/WIP

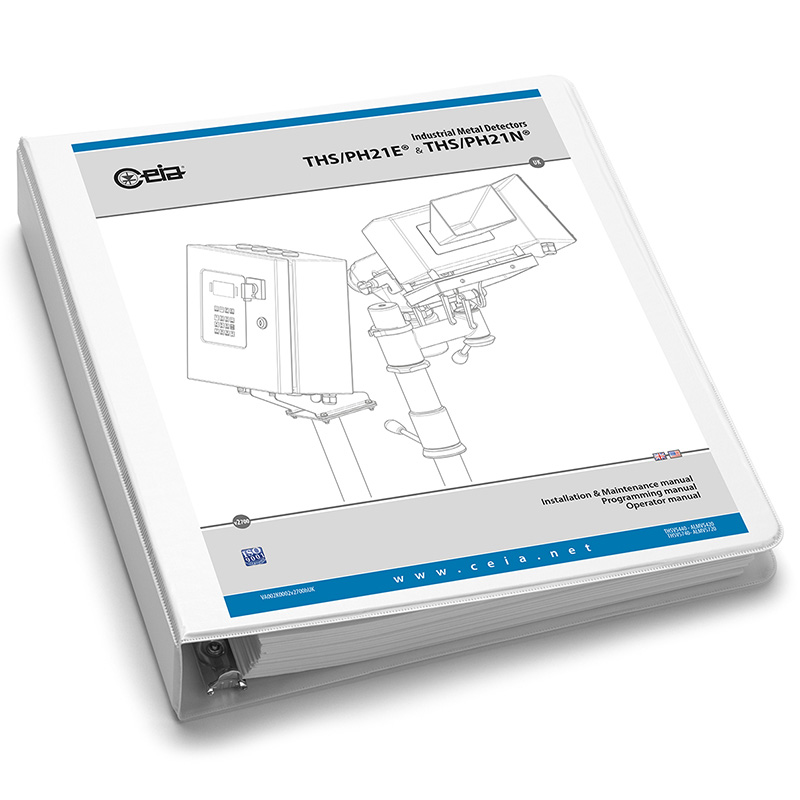

Technical Manual
Detailed hardcopy document(s) that includes:
- Installation Manual
- Operator Manual
- Programming Manual
Part Code: Part #45669
Technical Manual (Digital Document)
Detailed electronic document(S) that can be downloaded through a link provided by CEIA SpA. Package includes:
- Installation Manual
- Operator Manual
- Programming Manual
Part Code: Part #90674

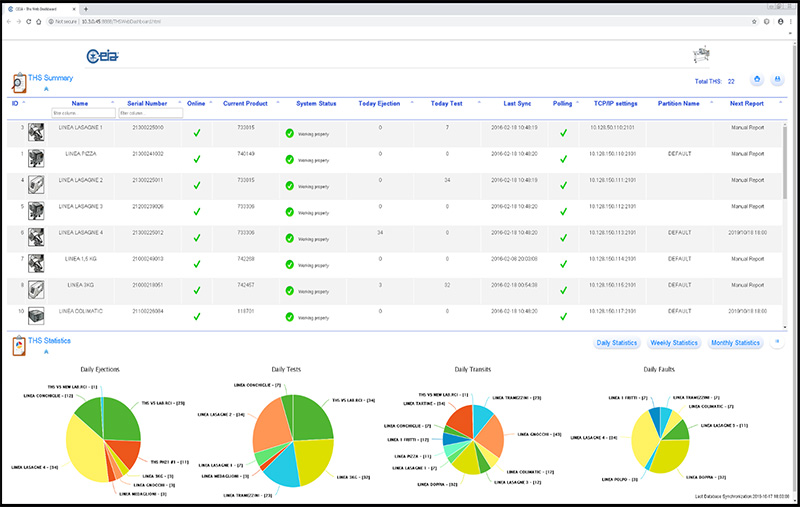

THS Production Software
Requires installation of IXC option
Software for the data management
Part Code: Part #33908
Validation Manual
Detailed hardcopy document for process/equipment validation of detector.
Part Code: Part #30839
Part #51698
Validation Manual (Digital Document)
Detailed electronic document that can be downloaded through a link provided by CEIA SpA for process/equipment validation of detector.
Part Code: Part #90672
Part #90673

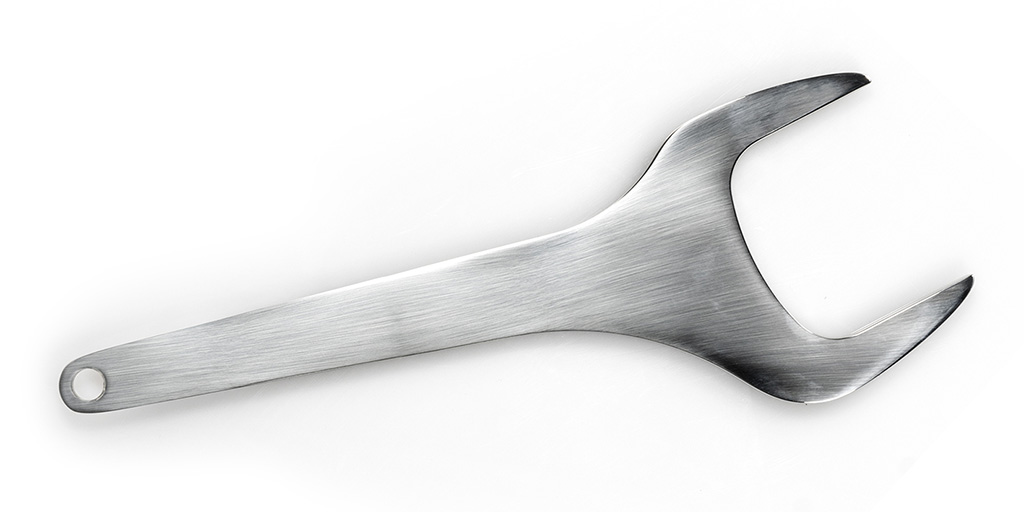

Wrench
Wrench for adjusting the height of the probe
Part Code: Part #30190
