CEIA EMVS

Electro Magnetic Vehicle Shield - IED & UXO Detector for vehicle protection




Presentazione Aziendale

  • The system is extremely compact and simple and made of four principal components: search antenna with embedded control electronics; frame of support; mounting adapter; remote display unit inside the vehicle
  • Assembly is very fast and does not require tools
  • The electromagnetic detection shield is not limited to the area below the antenna but includes also the space on the two sides of it
  • Electromagnetic Induction (EMI) technology, completely digital electronics design
  • Use of special materials (outstanding resistance to mechanical shocks)


Manuali

CEIA EMVS

CEIA EMVS is a complete system, aimed at the detection of metallic UXOs and ERWs, conceived in order to offer a deterministic result to the operator through its visual and audio signals.

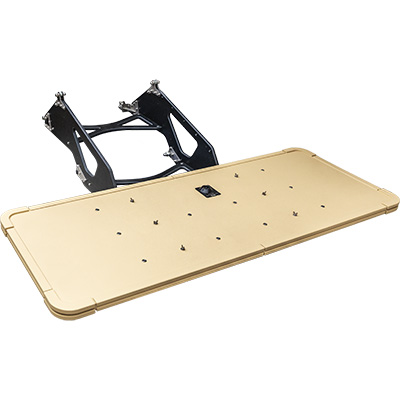

CEIA EMVS - detail

View of a EMVS detector installed on a Cougar vehicle

  • Device type: IED & UXO DETECTOR FOR VEHICLE PROTECTION
  • Device name: Electro Magnetic Vehicle Shield (EMVS)
  • Working principle: EMI – Electromagnetic Induction
  • Technology: Single piece detector with embedded electronics
  • External interface: Single connection cable with power supply and communication wires
  • Power supply: 20 – 30 VDC, 35 W max
  • Installation: Frontal at the distance of 2 m from the vehicle
  • Dimensions: Antenna and electronics 2500 mm x 1000 mm x 50 mm
  • Connection to the vehicle: Quick connection by means of high resistance light support hooked to the standard fixing points, usually no mechanical modifications for different vehicles are required
  • Total weight: 215 kg
  • Alarm type: Optical and acoustical in real time inside the vehicle by means of terminal provided by CEIA connected to the serial interface present in the sensor
  • Expected height of use: 840 mm from the roadbed
  • Detected targets: UXO and Metallic IED
  • Soil compensation: Automatic
  • Discrimination: High discrimination capacity against clutter and medium size metallic objects present in the soil.
  • Working temperature: from -20°C to +70°C
  • Degree of protection: IP68
  • Self-diagnosis: Automatic self-diagnosis system detection of components malfunctioning and connection cable breaking
