  • Effective Detection of all metal and minimum-metal content targets
  • Accurate pin-pointing of the target’s position
  • High discrimination capability for adjacent targets
  • Automatic Compensation for mineralized and high natural metal content soil
  • Balanced, lightweight design
  • Extremely high level of electrical and mechanical reliability
  • Integrated battery charger
  • Ease of operation with minimum training time required

Brochures
Click To View US Brochure



Manuals

CEIA CMD/DW

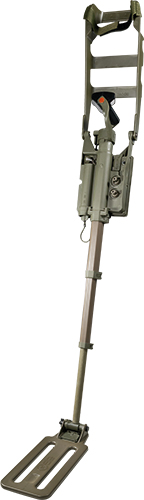

The CEIA CMD/DW is a very high performance, high sensitivity amphibious metal detector certified to detect metal and minimum-metal content targets from ground to fresh or salt water bodies down to 100 m depth.

Description

CEIA CMD/DW - detail

One piece retractable design

One-piece foldable design

The Metal Detector consists of a search head, a control unit, a telescopic pole and an elbow support jointed together in a one-piece design. The detection head is light and the wiring is designed to be protected from any possible damage.

The one-piece foldable design allows the CMD/DW Metal Detector to be operational in a very short time and to be carried easily everywhere.

The detector is equipped with a built-in Ni-MH battery charger which allows the batteries to be recharged (in 3 hour max) without the need to extract them from the unit.

This also allows full environmental protection of components and maximum operational speed for the user.

Ergonomic operation

Intentionally designed to be used easily and comfortably in every working condition, the CMD/DW can be set up for operation in less than twenty seconds.

The Metal Detector offers the best combination of functional and operational characteristics: it provides the highest ratio between overall dimensions, detection depth and operational weight.

The length of the telescopic pole can be adjusted for operation in upright, kneeling or prone positions.

The special shape of the CMD/DW search head gets simultaneously the fastest advance rate and inspection capability of narrow spaces.

Exclusive automatic soil compensation system

The CMD/DW does not require any manual calibration; in addition, optimum sensitivity is ensured over all types of terrain due to CEIA’s Exclusive Automatic Soil Compensation System.

Localization of metal objects is optimized by an Acoustic Modulation pinpointing system aided by a Visual LED bar graph, which allows the position of the detected mass to be identified accurately.

Complete support for technical and operational courses

CEIA provides complete support for technical and operational courses, given by certified personnel, either on site or at its own premises.

The curriculum includes first and second line maintenance, training for operators and a course for operator instructors:
  • In country training and assistance
  • Proprietary software tools for remote control and oscilloscope features
  • Multilingual telephone and online assistance
  • Hardware and software upgrade
  • Field Programming Key for in-the-field software Upgrade


Modern control unit: simple to operate

The watertight control unit and search head withstand the most stringent environmental requirements and Standards:
  • Volume adjustment
  • Sensitivity adjustment
  • Built-in speaker (internal)
  • Main switch and spring actuated reset switch
  • LED bar indicator of signal intensity
  • Snap-down cover
  • Battery charger status indicator
  • Single Multifunction Connector: Battery charge; Headphone; Accessories; Upgrade

Specifications

Power supply

  • Types of batteries (2x), ANSI Standard, type C
  • 1.2V Ni-MH rechargeable - 1.5V Alkaline (LR14)


Battery life at 20°C (default search program)

  • with Ni-MH (6000 mAh) rechargeable batteries: 8 hours
  • with alkaline batteries: 6 hours
  • Battery charge indicator


Metal alarm

  • Adjustable sensitivity
  • Audible alarm with adjustable volume and visual LED display (maskable with a snap-down infrared cover)


Dimensions

  • Search head: 350 mm x 140 mm
  • Folded: 387 mm x 157 mm x 76 mm
  • Fully extended: 1290 mm
  • Carry bag: 395 mm x 200 mm x 110 mm
  • Transport case: 475 mm x 350 mm x 175 mm


Weight

  • Metal Detector (batteries included): 800 g under water; 2.75 kg on land
  • Carry bag: 540 g
  • Transport case: 4 kg
  • Headphone: 170 g
  • CMD/DW Detecting Set: 7 kg


Operating temperature

  • -46 °C to +70 °C (land)
  • From freezing to +70 °C (under water)


Storage temperature

  • -55 °C to +85 °C


Diving depth

  • Certified in deep water down to 100 m
  • 10 bar


Set-up time

  • Twenty seconds typical (batteries already in place)


Accessories included

  • 90-260V~ power supply adapter for the built-in battery charger (for land use). Ordering code: GSMD-ACPSA1
  • 12/24Vdc power supply cable fitted with a vehicle cigarette lighter plug (for land use). Ordering code: GSMD-DCPSA1
  • Headphone (for amphibious use). Ordering code: GSMD-HP-DW
  • External loudspeaker (for amphibious use). Ordering code: GSMD-EXTSPK-DW
