GROUND SEARCH Metal Detectors


DSMD

Digital deep search Metal Detector

  • Effective detection of magnetic and non-magnetic UXO, cluster munitions and IEDs
  • Superior detection depth
  • High Discrimination against shallow metal clutter
  • Ease of operation with minimum training time required
  • Minimum set-up time
  • Completely digital electronics, with in-field program memory upgrade capability
  • Embedded GPS and inertial navigation system
  • Automatic position and detection data logging for Quality Control
  • Total immunity to environmental magnetic anomalies and heavily mineralized soil
  • Static and dynamic detection, independent of the detector’s rate of advance
  • Operation monitored by graphical interface and a microcomputer-controlled auto diagnostic system with audible, optical and vibration warning signals
  • Fast integrated battery charger


Manuals

DSMD

Digital deep search Metal Detector for UXO and cluster munitions detection

Description

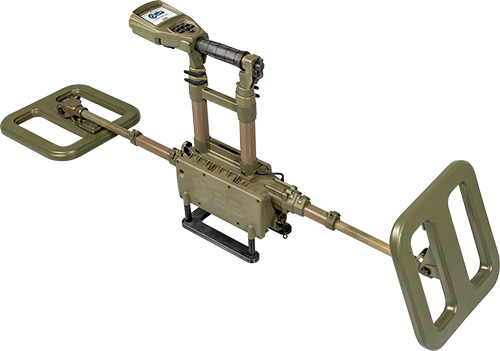

DSMD - detail

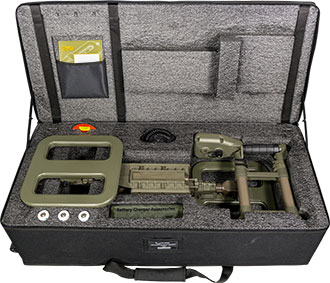

Transport case

The CEIA DSMD is an active electromagnetic induction (EMI) device based on the transmission of an alternated, low frequency magnetic fi eld and the reception of the variations caused by buried metal masses. It is designed for the accurate detection of deeply buried medium-large metal masses, including unexploded ordnance, whilst discriminating against ground magnetic anomalies and metal fragmentation.

The detector comprises a telescopic tube and two probe-antennae which transmit and receive the magnetic fi eld, mounted at the ends of the extensions. Target indication is by a high-readability colour TFT display on the front panel of the control unit and an acoustic warning signal with adjustable volume control.

The embedded GPS receiver allows real-time data logging capability during operations: GPS information (Date, Time, Latitude, Longitude) can be recorded along with signifi cant points and data, stored into a non-volatile memory at a rate of one event per second.

Applications

Documents
