CEIA CWD

Lightweight compact wire detector






Company Presentation






Visit us at
See all upcoming events >>

  • Effective detection (independent of wire orientation with respect to the Search Head) of: Command wires and connection wires of any diameter and type; Extremely thin up to large diameter wires; Shallow and buried wires
  • Accurate pin-pointing of the target’s position
  • High discrimination capability for adjacent targets
  • Extremely high level of electrical and mechanical reliability
  • Integrated battery charger
  • Long-Lasting battery life


Manuals

CEIA CWD

The CEIA CWD Lightweight Compact Wire Detector complements the CMD detectors range, providing overall superior performance in terms of sensitivity, direction-independent detection, portability and reliability.

Description

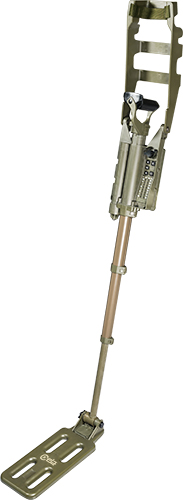

CEIA CWD - detail

The one-piece foldable design and ease-of-use allows the CWD Detector to be operational in a very short time.

The CEIA CWD is a lightweight and portable device featuring the capability of detecting command wires of any diameter and type with high sensitivity, in conductive and non-conductive soils, including laterite and magnetite. The Wire Detector comprises a search head, a control unit, a telescopic pole and an elbow support all jointed together in a one-piece foldable design that allows the CEIA CWD to be operational in a very short time and easily carried everywhere.

Detection is independent of wire orientation with respect to the Search Head. In addition, the CWD does not require any manual calibration: optimum sensitivity is ensured over all types of terrain due to CEIA's exclusive Automatic Soil Compensation System.

The detector is manufactured in compliance with the ISO-9001 standard and has been designed to meet and exceed the relevant Military Environmental Standard most stringent operational detection requirements (MIL-STD -810G).

The detector is equipped with a built-in Ni-MH battery charger which allows the batteries to be recharged (in 3 hours max) without the need to extract them from the unit.

Specifications

Promptness

  • Switch-on time: 5 sec.
  • Soil compensation: 16 sec.


Dimensions

  • Search head (W x L): 140 mm x 350 mm (5.5” x 13.8”)
  • Folded: 390 mm x 160 mm x 85 mm (15.3” x 6.3” x 3.3”)
  • Fully extended: 1300 mm (51.2”)

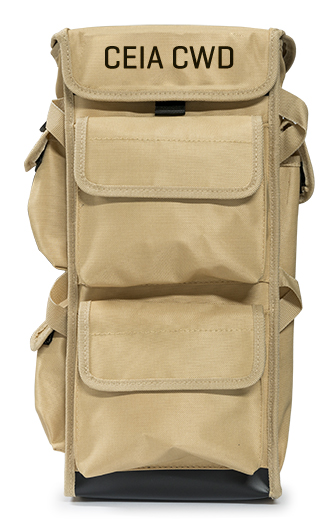

  • Carry bag: 395 mm x 205 mm x 130 mm (15.6” x 8.1” x 5.1”)


Weight

  • Detector (batteries included): 2,25 kg (4.96 lbs)
  • Carry bag: 600 g (1.32 lbs)
  • Earphone: 155 g (0.34 lbs)


Power supply

  • Battery: 3 x 1.2V Ni-MH C cells - HR14
  • Battery life: 8 h (continuous use)
  • Battery charge time 3.5: h (built-in battery charger)
  • Battery cycle life: 2 years of daily use (≥ 500 cycles)
  • External AC/DC adapter: 100-240 Vac (50/60Hz) - 25 W


Protection Degree

  • IP68 (IEC 529)


Storage Temperature

  • -55°C to +85°C (-67°F to 185°F)


Operating Temperature

  • -46°C to +70°C (-51°F to 158°F)


Conformity

  • Complies with the international standards on radio interference and human exposure to electromagnetic fields
