  • Plugs directly to the GSMD Headphone Connector
  • MIL-D1, MIL-D1/DS and CMD compatible
  • High acoustic intensity (76 dBA at 50cm)
  • CMD Detector can be folded without removing the GSMD-EXTSPK

Brochures
Click To View GB Brochure



Manuals

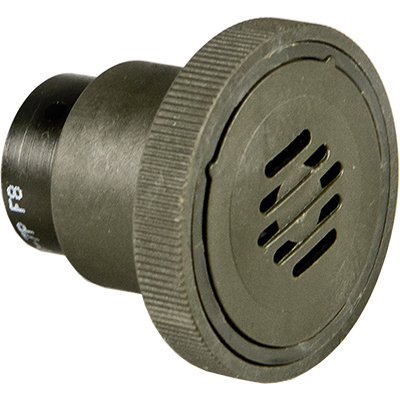

GSMD-EXTSPK

The external loudspeaker is a very high reliability, external alarm loudspeaker. It has the same operation of the headphone normally supplied with the detector.

Description

The external loudspeaker is a very high reliability, external alarm loudspeaker. It has the same operation of the headphone normally supplied with the detector.

Connection

As for the standard headphone, insert the external speaker into the HEADPHONE connector of the GSMD and rotate the locking ring until a click is heard.

Disconnection

Rotate the locking ring anti-clockwise and pull up.

Specifications

  • Operating Temperature: -46° C to +70°C (-50.8°F to 158°F)
  • Storage Temperature: -55°C to +85°C (-67°F to 179.6°F)
  • Relative humidity: 0 to 95 % (without condensation)
  • Overall dimensions: ø38mm x 35mm (ø1.50“ x 1.38“)
  • Weight: 27g (1 oz)
