GROUND SEARCH Metal Detectors


GSMD®-EXTSPK

External Speaker for CEIA GSMDs






Presentation

Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure






Visitez-nous
IDEF
Istanbul - Turkey
Aug 17 - 20, 2021
Exposant: Öztekin Technical Service Equipment and Defense Industry Commerce Ltd. Comp.

AEA Industry Exhibition
Fort Leonard Wood, MO - United States of America
Aug 23 - 26, 2021
Exposant: CEIA USA Ltd.

DSEI - Defence and Security Equipment International
London - United Kingdom
Sep 14 - 17, 2021
Exposant: CEIA S.p.A.

Événements à venir >>

  • Plugs directly to the GSMD Headphone Connector
  • MIL-D1, MIL-D1/DS and CMD compatible
  • High acoustic intensity (76 dBA at 50cm)
  • CMD Detector can be folded without removing the GSMD-EXTSPK

Dépliant
Click To View GB Brochure



Manuels

GSMD-EXTSPK

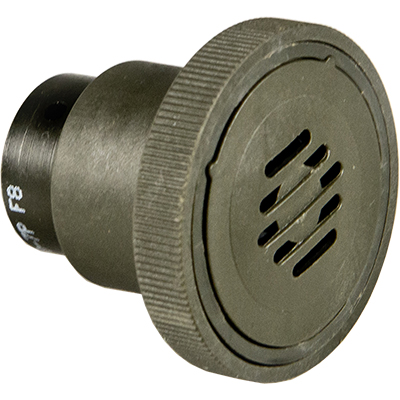

The external loudspeaker is a very high reliability, external alarm loudspeaker. It has the same operation of the headphone normally supplied with the detector.

Description

The external loudspeaker is a very high reliability, external alarm loudspeaker. It has the same operation of the headphone normally supplied with the detector.

Connection

As for the standard headphone, insert the external speaker into the HEADPHONE connector of the GSMD and rotate the locking ring until a click is heard.

Disconnection

Rotate the locking ring anti-clockwise and pull up.

Spécifications

Download Specifications



  • Operating Temperature: -46° C to +70°C (-50.8°F to 158°F)
  • Storage Temperature: -55°C to +85°C (-67°F to 179.6°F)
  • Relative humidity: 0 to 95 % (without condensation)
  • Overall dimensions: ø38mm x 35mm (ø1.50“ x 1.38“)
  • Weight: 27g (1 oz)

Documentation
