GROUND SEARCH Metal Detectors


GSMD-EXTSPK

Altoparlante Esterno per Metal Detector per la prospezione del sottosuolo CEIA






Presentazione Aziendale

Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure






Visitateci
Prossimi Eventi >>

  • Plugs directly to the GSMD Headphone Connector
  • MIL-D1, MIL-D1/DS and CMD compatible
  • High acoustic intensity (76 dBA at 50cm)
  • CMD Detector can be folded without removing the GSMD-EXTSPK

Depliant
Click To View GB Brochure



Manuali

GSMD-EXTSPK

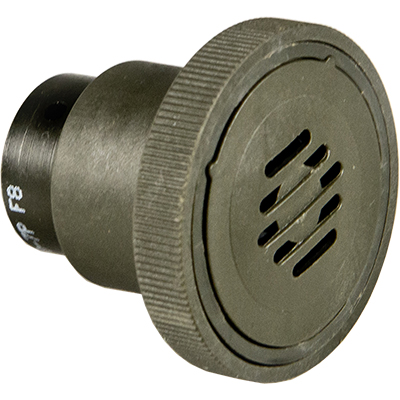

L’altoparlante esterno GSMD-EXTSPK è un segnalatore sonoro d'allarme esterno di alta affidabilità.

Descrizione

The external loudspeaker is a very high reliability, external alarm loudspeaker. It has the same operation of the headphone normally supplied with the detector.

Connection

As for the standard headphone, insert the external speaker into the HEADPHONE connector of the GSMD and rotate the locking ring until a click is heard.

Disconnection

Rotate the locking ring anti-clockwise and pull up.

Specifiche

  • Operating Temperature: -46° C to +70°C (-50.8°F to 158°F)
  • Storage Temperature: -55°C to +85°C (-67°F to 179.6°F)
  • Relative humidity: 0 to 95 % (without condensation)
  • Overall dimensions: ø38mm x 35mm (ø1.50“ x 1.38“)
  • Weight: 27g (1 oz)

Documenti


Depliant
Click To View GB Brochure



Manuali
