GROUND SEARCH Metal Detectors

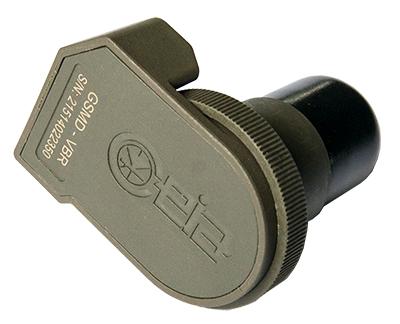

GSMD-VBR

Vibration Signaling Device for CEIA GSMDs






Company Presentation
Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure







Visit us at
DSEI Japan
Chiba - Japan
Nov 18 - 20, 2019
Exhibitor: CEIA S.p.A.

Defense & Security
Bangkok - Thailand
Nov 18 - 21, 2019
Exhibitor: Royal Defence Co., Ltd. - Booth K09

Milipol
Paris - France
Nov 19 - 22, 2019
Exhibitor: CEIA S.p.A. - Hall 5L Booth 083

See all upcoming events >>

  • Plugs directly to the GSMD Headphone Connector
  • MIL-D1 and CMD compatible
  • No removal needed when Detector is folded
  • No maintenance required
  • It allows the operator to turn the internal speaker off when the volume knob is at the minimum
  • Low Power Consumption
  • Embedded 32-bit microcomputer
  • Operating at Full Depth with CMD/DW

Brochures
Click To View GB Brochure



Manuals

GSMD-VBR

Plugs directly to the GSMD Headphone Connector

Specifications

  • Operating Temperature: -30°C to 70°C
  • Storage Temperature: -40°C to 80°C
  • MTBF: 200,000 cycles @ 20°C ambient temperature
  • Power Consumption:
    • GSMD Off: 0 mA
    • GSMD On: 14 mA
    • GSMD in alarm: 80 mA
  • Dimensions: 52.5 mm x 37 mm x 35.5 mm
  • Weight: 45 grams
  • Protection Degree (according to IEC 529): IP68
