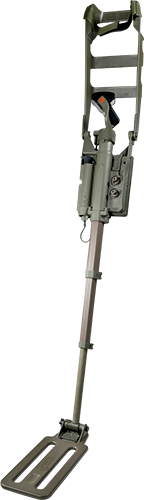

GROUND SEARCH Metal Detectors

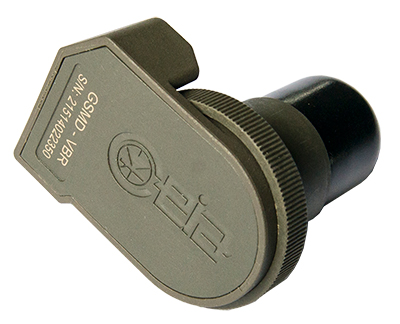

GSMD®-VBR

Vibration Signaling Device for CEIA GSMDs






Presentación

Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure






Visítenos
IDEF
Istanbul - Turkey
Aug 17 - 20, 2021
Expositor: Öztekin Technical Service Equipment and Defense Industry Commerce Ltd. Comp.

AEA Industry Exhibition
Fort Leonard Wood, MO - United States of America
Aug 23 - 26, 2021
Expositor: CEIA USA Ltd.

DSEI - Defence and Security Equipment International
London - United Kingdom
Sep 14 - 17, 2021
Expositor: CEIA S.p.A.

Exposiciones y Eventos >>

  • Plugs directly to the GSMD Headphone Connector
  • MIL-D1 and CMD compatible
  • No removal needed when Detector is folded
  • No maintenance required
  • It allows the operator to turn the internal speaker off when the volume knob is at the minimum
  • Low Power Consumption
  • Embedded 32-bit microcomputer
  • Operating at Full Depth with CMD/DW

Folleto
Click To View GB Brochure



Manuales

GSMD-VBR

Plugs directly to the GSMD Headphone Connector

Especificaciones

Download Specifications



  • Operating Temperature: -30°C to 70°C
  • Storage Temperature: -40°C to 80°C
  • MTBF: 200,000 cycles @ 20°C ambient temperature
  • Power Consumption:
    • GSMD Off: 0 mA
    • GSMD On: 14 mA
    • GSMD in alarm: 80 mA
  • Dimensions: 52.5 mm x 37 mm x 35.5 mm
  • Weight: 45 grams
  • Protection Degree (according to IEC 529): IP68

Documentación
