GROUND SEARCH Metal Detectors


GSMD®-GPS

Module for acquiring Metal Detector and GPS signals






Presentation

Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure






Visitez-nous
Future Force Capabilities Conference and Exhibition
Columbus, GA - United States of America
Oct 18 - 21, 2021
Exposant: CEIA USA Ltd.

Ideas Pakistan
Karachi - Pakistan
Nov 23 - 26, 2021
Exposant: Sage Tech International

MILENG COE Industry Day
Ingolstadt - Germany
Dec 8, 2021
Exposant: CEIA S.p.A.

Événements à venir >>

  • Compatible with MIL-D1/DS and CMD Metal Detectors.
  • Plugs directly to the GSMD Headphone Connector.
  • Powered by the GSMD, no external battery required.
  • No consumption when GSMD is turned off.
  • Low Power Consumption.
  • Embedded 32-bit microcomputer.
  • 72-channel GPS /GLONASS/Beidou high sensitivity receiver.
  • Up to 30 h data recording.
  • Status indication by multi-color LED.
  • High speed data download to a PC.
  • Data integrity is assured by certification.
  • Water resistant housing.

Dépliant
Click To View GB Brochure
Click To View I Brochure



Manuels

GSMD-GPS

Description

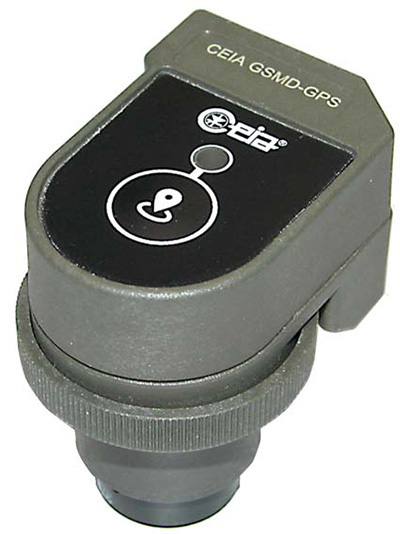

GSMD-GPS - detail

Push button for recording start/stop and for tagging a significant point

GSMD-GPS is a high performance compact accessory of compatible CEIA GSMDs designed to receive and record GPS data.
The device allows the operator to record the Metal Detector response and the GPS information (Date, Time, Latitude, Longitude) in real time during the search operations.
In addition, the module allows the operator to mark significant points.
Data are stored into a non-volatile memory at a rate of one event per second.
A connecting cable and a software utility are provided for downloading the memory content to a PC. Data are saved in .kml format (Google Earth compatible) and in .csv format.

Spécifications

Download Specifications



  • Operating Temperature: -46°C to 70°C
  • Storage Temperature: -55°C to 85°C
  • Power Consumption:
    • GSMD off: 0mA
    • GSMD on: 65mA @3V
  • Dimensions: 52.5mm x 37mm x 49.3 mm
  • Weight: 60g
  • Protection Degree (IEC 529): IP68 (down to 2 m)
  • GPS Receiver Technical Features:
    • 72-channel GPS/QZSS, GLONASS & BeiDou receiver
    • Accuracy: ±1,5m (typical); ± 1m (typical, with SBAS correction)
    • Sensitivity in navigation: -166dBm
    • Time to first Fix: 40 sec
  • Memory storage capacity: Up to approximately 30 hours of recording
