CEIA CWD

Lightweight compact wire detector






Presentazione Aziendale
Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure







Visitateci
Tutti gli eventi >>

  • Effective detection (independent of wire orientation with respect to the Search Head) of: Command wires and connection wires of any diameter and type; Extremely thin up to large diameter wires; Shallow and buried wires
  • Accurate pin-pointing of the target’s position
  • High discrimination capability for adjacent targets
  • Extremely high level of electrical and mechanical reliability
  • Integrated battery charger
  • Long-Lasting battery life

Depliant
Click To View GB Brochure



Manuali

CEIA CWD

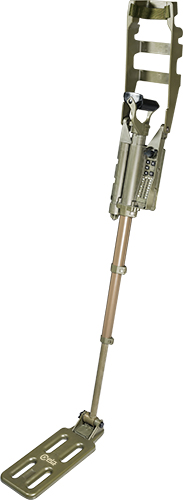

The CEIA CWD Lightweight Compact Wire Detector complements the CMD detectors range, providing overall superior performance in terms of sensitivity, direction-independent detection, portability and reliability.

Descrizione

CEIA CWD - detail

The one-piece foldable design and ease-of-use allows the CWD Detector to be operational in a very short time.

The CEIA CWD is a lightweight and portable device featuring the capability of detecting command wires of any diameter and type with high sensitivity, in conductive and non-conductive soils, including laterite and magnetite. The Wire Detector comprises a search head, a control unit, a telescopic pole and an elbow support all jointed together in a one-piece foldable design that allows the CEIA CWD to be operational in a very short time and easily carried everywhere.

Detection is independent of wire orientation with respect to the Search Head. In addition, the CWD does not require any manual calibration: optimum sensitivity is ensured over all types of terrain due to CEIA's exclusive Automatic Soil Compensation System.

The detector is manufactured in compliance with the ISO-9001 standard and has been designed to meet and exceed the relevant Military Environmental Standard most stringent operational detection requirements (MIL-STD -810G).

The detector is equipped with a built-in Ni-MH battery charger which allows the batteries to be recharged (in 3 hours max) without the need to extract them from the unit.

Specifiche

Promptness

  • Switch-on time: 5 sec.
  • Soil compensation: 16 sec.


Dimensions

  • Search head (W x L): 140 mm x 350 mm (5.5” x 13.8”)
  • Folded: 390 mm x 160 mm x 85 mm (15.3” x 6.3” x 3.3”)
  • Fully extended: 1300 mm (51.2”)

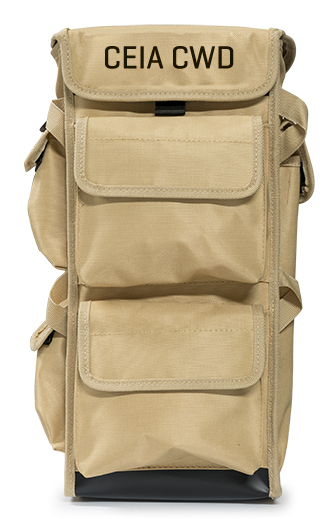

  • Carry bag: 395 mm x 205 mm x 130 mm (15.6” x 8.1” x 5.1”)


Weight

  • Detector (batteries included): 2,25 kg (4.96 lbs)
  • Carry bag: 600 g (1.32 lbs)
  • Earphone: 155 g (0.34 lbs)


Power supply

  • Battery: 3 x 1.2V Ni-MH C cells - HR14
  • Battery life: 8 h (continuous use)
  • Battery charge time 3.5: h (built-in battery charger)
  • Battery cycle life: 2 years of daily use (≥ 500 cycles)
  • External AC/DC adapter: 100-240 Vac (50/60Hz) - 25 W


Protection Degree

  • IP68 (IEC 529)


Storage Temperature

  • -55°C to +85°C (-67°F to 185°F)


Operating Temperature

  • -46°C to +70°C (-51°F to 158°F)


Conformity

  • Complies with the international standards on radio interference and human exposure to electromagnetic fields
