GROUND SEARCH Metal Detectors


CMD®3

Compact Triple-Sensor Metal, Carbon Rod and Command Wire Detector






Presentación

Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure






Visítenos
IDEF
Istanbul - Turkey
May 25 - 28, 2021
Expositor: Öztekin Technical Service Equipment and Defense Industry Commerce Ltd. Comp.

Sofins
Bordeaux - France
Jun 29 - Jul 1, 2021
Expositor: CEIA International S.A.S. - Sûreté

Exposiciones y Eventos >>

  • High detection sensitivity of magnetic and non-magnetic low metal content mines in all soil conditions
  • Enhanced IED detection of targets such as electrical conductive, non-metallic devices (i.e. graphite switches), short wires and high resistivity metals
  • Command wire detection of conductors of any diameter and type with no nuisance alarms due to other metal targets and clutter
  • Separate acoustic, visual and tactile alarm signalling for each class of target
  • High immunity against external interferences, (i.e. portable transceivers, power lines or generators) and capability to operate within the coverage of ECM Jammers
  • Compact and lightweight DESIGN ideal for rapid deployments with minimum storage space required
  • Superior adaption to all types of soils even if heavily mineralized and magnetic

Folleto
Click To View GB Brochure



Manuales

CMD3

High detection sensitivity of magnetic and non-magnetic low metal content mines in all soil conditions; enhanced IED detection of targets such as electrical conductive, non-metallic devices (i.e. graphite switches), short wires and high resistivity metals; command wire detection of conductors of any diameter and type with no nuisance alarms due to other metal targets and clutter

Descripción

CMD3 - detail

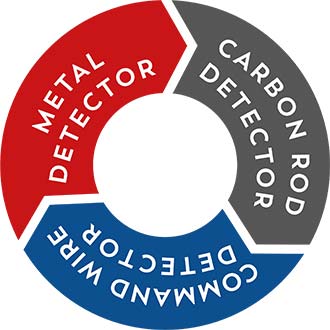

Triple-Sensor Technology

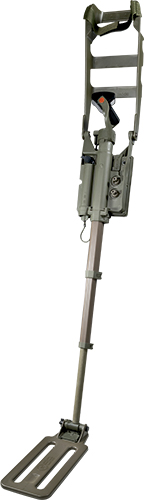

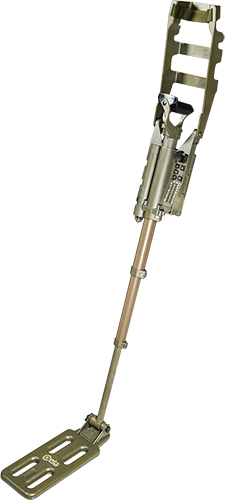

CMD3 consists of a search head, a control unit, a telescopic pole and an elbow support jointed together in a one-piece design. The detection head is light and the cabling is protected from any possible damage.

The one-piece foldable design allows the CMD3 to be operational in a very short time and easily carried everywhere.

The Detector offers the best combination of functional and operational characteristics: it provides the highest ratio between overall dimensions, detection performance and operational weight.

CMD3 does not require any manual calibration; in addition, optimum sensitivity is ensured over all types of terrain due to CEIA’s Exclusive Automatic Soil Compensation System.

Localization of the threats is assisted by an Acoustic Modulation pinpointing system aided by Visual LED bar-graphs, which allows the position of the detected item to be identified accurately.

Integrated GPS and data logging system for traceability and quality control of clearance operation.

Command Wire detection capability independent from the orientation of the search head.

Visual signalling selectable as visible or infrared mode (compatible with night vision devices).

Operable up to one meter distance from detector to detector.

Battery level monitoring with notice before complete discharge.

Especificaciones

Download Specifications



Promptness

  • Switch-on time: 5 sec.
  • Set-up time: less than 20 sec.
  • Soil Compensation: 16 sec.
  • Reset: 1.5 sec. with automatic reset feature


Dimensions

  • Search head (W x L): 140 mm x 350 mm

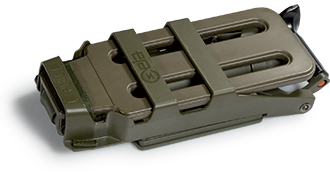

  • Folded: 390 mm x 160 mm x 85 mm
  • Fully extended: 1300 mm
  • Carry bag: 395 mm x 205 mm x 130 mm


Weight

  • Detector (batteries included): 2.25 kg
  • Carry bag: 0.6 kg
  • Earphone: 0.155 kg


Protection degree (IEC 60529)

  • IP 68 (waterproof to 2 m for 24 hours)


Environmental data
  • Storage temperature: -55°C to +85°C
  • Operating temperature: -46°C to +70°C


Conformity

  • Complies with the international standards on radio interference and human exposure to electromagnetic fields
  • MIL-STD-810 Compliant
  • STANAG 4370 Compliant


Battery

  • 3 x 1.2V Ni-MH C cells - HR14
  • 3 x IEC size LR14


Battery charge time

  • 3.5 h (with built-in battery charger)


Battery life

  • More than 8 h (continuous use) with the rechargeable batteries provided by CEIA


Battery cycle life

  • 2 years of daily use (= 500 cycles)


External ac/dc adapter

  • 100-240 Vac (50/60Hz) - 25 W


Embedded smart battery charger

  • Fast charging time: ‹ 3.5 hours full charge


Technical and operational courses

CEIA provides complete support for technical and operational courses, given by certified personnel, either on site or at its own premises:
  • First and second line maintenance
  • Operator training
  • Trainer-training programs
