GROUND SEARCH Metal Detectors


PD240CBM

Hand Held Urban Clearance & Body Screening Detector






Presentazione Aziendale

Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure






Visitateci
IDEF
Istanbul - Turkey
Aug 17 - 20, 2021
Espositore: Öztekin Technical Service Equipment and Defense Industry Commerce Ltd. Comp.

AEA Industry Exhibition
Fort Leonard Wood, MO - United States of America
Aug 23 - 26, 2021
Espositore: CEIA USA Ltd.

DSEI - Defence and Security Equipment International
London - United Kingdom
Sep 14 - 17, 2021
Espositore: CEIA S.p.A.

Prossimi Eventi >>

  • Effective detection of:
    • Crush Switches
    • Carbon Rods
    • Other conductive IED Components
  • Preprogrammed compensation of common building materials:
    • Tiles
    • Concrete
    • Cinder-blocks
  • Operable in close proximity to large metal masses
  • Metallic weapon detection for people screening

Depliant
Click To View GB Brochure



Manuali

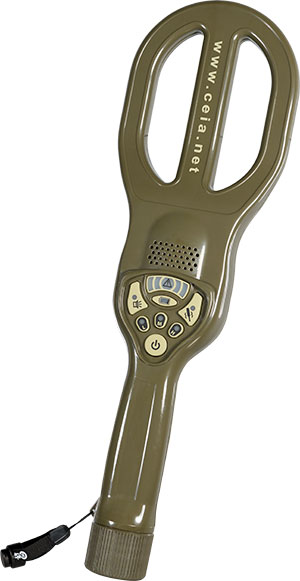

PD240CBM

Hand Held Urban Clearance & Body Screening Detector

Descrizione

PD240CBM - detail

Clear dual-tone pinpointing
Fully digital design
Data access plug for future software upgrades

The CEIA PD240CBM is the result of the intense research and development program required to achieve a solution to the problem of detecting minimum metal IED targets within an Urban metal contaminated environment for post-conflict clearance purpose.

This simple to operate detector reliably detects the smallest targets, such as Crush Switches and Carbon Rods with a clear dual-tone center cross over alarm, that easily identifies the center of the targets. Due to its specially designed Detection head this detector can identify and pin point minimum targets within very close proximity to large metal masses such as Metal doors, Frames or other large metal masses.

The detector has a start-up time of less than 2 seconds without a need for compensation as it has Preprogrammed Compensation Optimization for Urban Environments: this addresses common building materials, such as concrete, cinderblock and ceramic floor tiles.

Thanks to a Specific Sensitivity Setting, the CEIA PD240CBM allows the detection of weapons made of any metal for people screening.

Specifiche

Download Specifications



Promptness

  • Switch-on time: 2 sec.


Dimensions

  • PD240CBM: 405mm x 120mm x 40mm (10.6” x 3.7” x 2.4”)

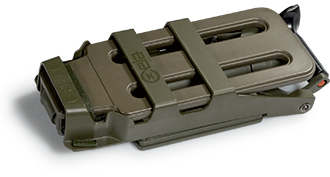

  • Belt Holster: 270mm x 95mm x 60mm (10.6” x 3.7” x 2.4”)
  • Carry Bag: 430mm x 145mm x 70mm (16.9” x 5.7” x 2.8”)


Weight

  • PD240CBM with batteries: 465g
  • Belt Holster: 100 g (0.22 lbs)
  • Carry Bag: 235 g (0.52 lbs)


Power supply

  • 2 x AA size alkaline batteries


Control panel

  • Optical, acoustic and vibratory alarm modes
  • 3-level sensitivity selection buttons


Battery

  • Battery life: 50+ hours
  • Low battery indicator


Environmental data

  • Operating Temp.: -40°C to 70°C (-35°F to 158°F)
  • Storage Temp.: -40°C to 80°C (-35°F to 176°F)
  • Relative humidity: 0 to 99% (without condensation)


Compliance

  • Conforms to international standards currently applicable for safety, EMC and to applicable CE regulations
