EBC

Battery Compartment

The MIL-D1 Metal Detector Set is usually powered by four 1.5V size D alkaline batteries which guarantee the operativeness for more than 65 hours (at 25°C) in continuous duty. Such a long operating time allows the use of the Metal Detector even in remote areas with a minimum requirement of battery replacement and a consequent strong reduction of the operating costs.

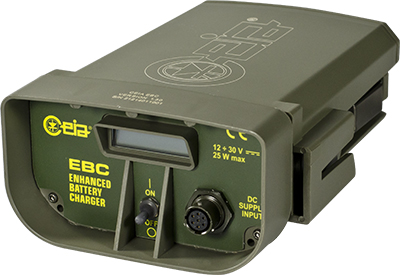

If required, the same unit can be supplied by means of four rechargeable batteries Ni-MH type. In this case CEIA proposes the CEIA EBC Battery Charger, designed to optimize both the process and the recharge speed, in different climatic conditions and environmental temperatures. It can be supplied from both direct and alternating current (DC/AC).

The CEIA EBC is housed in an insulating enclosure made of nylon, reinforced with glass, and characterized by a very high robustness against external mechanical shocks and is completely insulated from humidity and other external agents.

Main features

• Universal AC/DC external Power Supply Adapter
• Fully Microprocessor controlled
• Messages through 8 characters LCD display
• Pre-Charge, Fast Charge and Trickle Charge built-in functions
• Accepted rechargeable batteries: 4 x 1.2V NiMH from 7000 mA/h to 10000 mAh
• Charging current: 2.5A max.
• Charging time: 4.5 h max.

• Acoustical signalling
  • Batteries Not Inserted
  • Batteries Under Charge
  • Batteries Charged
  • Fault
• Visual signalling
  • Startup
  • Batteries Not Inserted
  • Batteries Under Charge
  • Batteries Charged
  • Wrong Polarity Detection
  • Battery Temperature Out of Range
  • Wrong Power Supply voltage
  • Fault

• Power Supply Input
  • 100 … 240 Vac – 47…63Hz 25 W max
  • 12 … 30 Vdc - 25 W max
• Operative Temperature: 0 … 45 °C (32 …113°F), according to the batteries specifications
• Storage Temperature
  • Electronic Unit: -55 … +75 °C (-67…167°F)
  • NiMH Batteries: -20 … +40 °C (-4 … 104°F)
• Relative humidity: 0 …95 % (without condensation)
• Weight
  • 950 gr (EBC unit without batteries)
  • 575 gr (AC/DC adapter with input cable)
  • 90 gr (DC power supply cord)
• Overall dimensions (H x W x L): 215 x 150 x 80 mm (8.5 x 5.9 x 3.2 in)
