Détecteurs pour le SOL
AMD
High Performance Hand-Held Metal Detector for Crime Scene Investigation and Stand-Off Screening
Présentation de la société
Certification ISO 9001
AMD

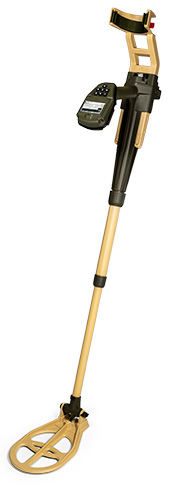

High Performance Hand-Held Metal Detector for Crime Scene Investigation and Stand-Off Screening
- Military-grade metal detector designed for professional and tactical operations
- High sensing depth with precision target pin-pointing in soil and air
- Visual and audio identification of magnetic and non-magnetic targets with notch discrimination
- Rugged IP68 waterproof one-piece construction with no assembly required
- NIJ 0602.02 compliant with advanced DSP technology and automated soil compensation
Dépliant
Manuels
The AMD is a military-grade metal detector built for professional and tactical operations. Featuring advanced DSP technology, automated soil compensation, and notch discrimination, it delivers deep, precise identification of magnetic and non-magnetic targets. Its rugged, IP68 waterproof, one-piece construction requires no assembly, ensuring reliable performance in demanding environments.

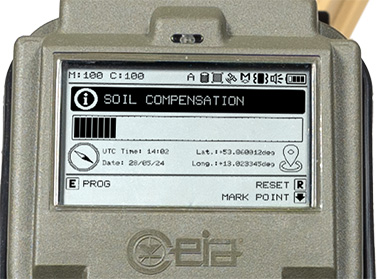

The AMD high resolution, high contrast, graphic display provides, during use, detailed indications on the status of the detector and guides the operator through the programming phase: status & sensitivity; alert messages; signal strength bar-graph; help function
Built for professional and tactical operations, this military-grade metal detector delivers exceptional detection performance with high sensing depth and precision target identification in both soil and air conditions. Its advanced DSP technology, automated soil compensation, and notch discrimination capability allow operators to accurately identify magnetic and non-magnetic targets while minimizing interference. Designed with a rugged one-piece waterproof structure, the detector is ready to use with no assembly required and offers reliable operation in demanding environments, including law enforcement and field applications.
Download Specifications
Promptness
- Start-up time: 4 sec.
- Soil Compensation: 20 sec.
- Reset: 1 sec.
Dimensions (W x L x H)
- Search head: 170 mm x 270 mm x 33 mm (6.7” x 11” x 1.3”)
- Folded equipment: 340 mm x 635 mm x 120 mm (13” x 25” x 4.7”)
- Length of the arm support-telescopic pole unit: adjustable from 670 mm to 1365 mm (26” to 54”)
- Transportation package: 400 mm x 800 mm x 150 mm (16” x 31” x 5.9”)
- Metal Detector with carry bag and accessories: 360 mm x 650 mm x 130 mm (14” x 26” x 5.1”)
Weight- Detector (batteries included): 1.7 kg (3.7 lb)
- Carry bag: 320 g (0.7 lb)
- Transportation package (equipment included): 4.4 kg (9.7 lb)
Protection degree (IEC 60529)- IP 68 (waterproof to 2 m for 24 hours)
Environmental data- Storage temperature: -33°C to +75°C (-28°F to 167°F)
- Operating temperature: -21°C to +63°C (-6°F to 145°F)
- Recharging temperature: 0°C to 40°C (32°F to 104°F)
Conformity- Complies with the international standards on radio interference and human exposure to electromagnetic fields
Indicators- Status, sensitivity setting, bar-graph signal strength and help functions are shown on a very high contrast, e-ink graphic display
- Built-in vibration signaling device
- Built-in speaker and external optional headphone with adjustable volume
Internal speaker- Acoustic pressure 84dBA @30cm (volume set to maximum)
Power supply- Internal batteries
- Ni-MH CEIA rechargeable battery pack
- Operational time (after start-up at 25°C (77°F)): = 18 hrs. (continuous use, no alarm)
- Self-discharging: residual charge of 70% when stored for 28 days at 25°C (77°F)
- Acoustic and graphic warning message before complete battery discharge: about 1 hour of operation (during this time the detection capability and all the other performance of the unit are not affected)
