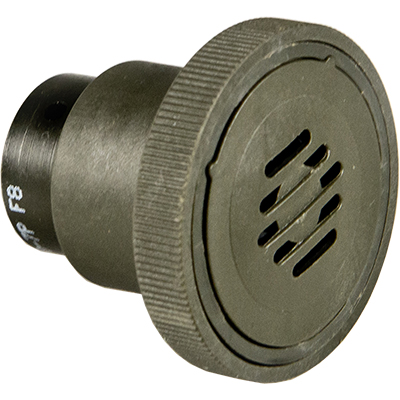

GSMD-EXTSPK
External Speaker for CEIA GSMDs
GSMD-EXTSPK
External Speaker for CEIA GSMDs
- Plugs directly to the GSMD Headphone Connector
- MIL-D1, MIL-D1/DS and CMD compatible
- High acoustic intensity (76 dBA at 50cm)
- CMD Detector can be folded without removing the GSMD-EXTSPK
Manuels
The external loudspeaker is a very high reliability, external alarm loudspeaker. It has the same operation of the headphone normally supplied with the detector.
The external loudspeaker is a very high reliability, external alarm loudspeaker. It has the same operation of the headphone normally supplied with the detector.
Connection
As for the standard headphone, insert the external speaker into the HEADPHONE connector of the GSMD and rotate the locking ring until a click is heard.
Disconnection
Rotate the locking ring anti-clockwise and pull up.
Download Specifications
- Operating Temperature: -46° C to +70°C (-50.8°F to 158°F)
- Storage Temperature: -55°C to +85°C (-67°F to 179.6°F)
- Relative humidity: 0 to 95 % (without condensation)
- Overall dimensions: ø38mm x 35mm (ø1.50“ x 1.38“)
- Weight: 27g (1 oz)
