The system allows the Head of Security to set Security Level quickly, reliably and without having to program the device in any way.
Most powerful and versatile security features
Up to 50 built-in Security Programs:- Up to 30 International Standards
- Up to 20 Customizable Levels
Setting the Security Levels could not be easier and more versatile than in the PMD2 Plus.
Users can choose directly from the known International Standards or request implementation of a Standard personalized to their own requirements. Users can also create their own program and save it in internal memory for later use.
Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc. and security level selection.
One unique characteristic of the CEIA metal detectors is the chip-card system, which allows Security Management to set the Security Level quickly, reliably and without having to program the device in any way.
Any security standard can be enhanced with selectable random alarm probability.
Detection of all metallic threat items
- Capability to detect the full range of metal weapon threats even within body cavities
- Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
- Guaranteed coverage for all orientations and locations, never in need of calibration
- Met-Identity technology for Identification of Threat Composition
High discrimination & throughput
- Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
- No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
- Better Discrimination = Shorter Lines and/or Less Staffing
The PMD2 Plus has a very low nuisance alarm rate even at the strictest Security Standards requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.
Immunity to external interferences
Exceptional immunity to environmental interferences makes the Metal Detector easy to use even when electrical noise is encountered.
New Certified IP66 Control Unit
- New integrated design
- Total compatibility with IP20 (plastic) and IP65 (stainless steel) control units
- Robust structure through the use of high-performance polymers for the construction of housing
- Waterproof / Dustproof: IP66 compliant (IEC 60529)
- Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
- Display made with specifi c polymer to improve the visibility of the LEDs by increasing the defi nition and clarity
Unique alarm signalling
- High visibility of the control unit and the zone indication independent from the operator position and the installation environment
- Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
- 10 Alarm Volume Levels
- Very High Precision Transit Counter
Accurate signaling is essential for best operation and flow management. The detector provides the user with fully-programmable signaling. Both entry-points can indicate with a high level of accuracy, even simultaneously, the vertical and lateral areas of transit of the threats detected, and can also be configured as ’traffic lights’ to control transits through the detector.
Rapid installation
- One touch guided automatic installation (OTS)
- Innovative function assisting the installation through an automatic step-by-step procedure
- Continuous self diagnostics assures monitored performance reliability

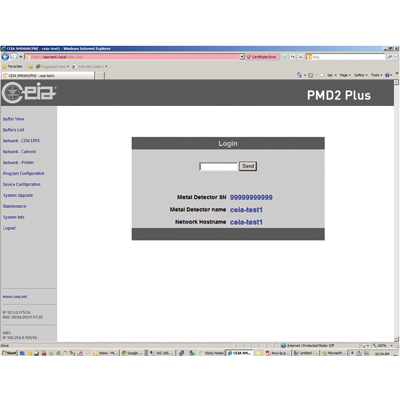

Integrated Web-Server & Logger
- Monitor the status of Metal Detector network in real time
- Centralized Setting of the Metal Detectors’ working parameters
- Transits flow monitoring
- Report on number of people screened and alarm rates automatically
- Detailed reporting of the transits data and the Security Device configuration data
- Remotely control and verify the security level
- No server or specific client software required, only a web browser
- Zero configuration network for simple setup
- 2 x Ethernet 100base-TX
Download Specifications

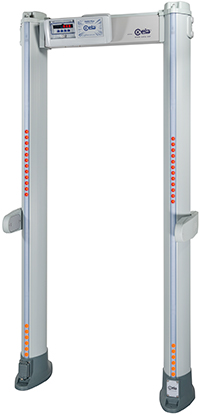

Gate structure
- State-of-the-art, robust and washable panels or compact elliptical columns
- Protected against aging, weather and wear
Operational features
- High discrimination and transit flow rates five or more times greater than other metal detection systems
- Quick reset time as short as 0.2 seconds for high throughput rate
- Very high detection speed (up to 50" ft/sec.)
- Built-in operational functional verification
- One-touch key reading of inbound, outbound and Security Level Data
Quality
- Continuous self diagnostic system
- Proven reliability
- No periodic re-calibration and preventive maintenance required
- No scheduled maintenance
- Fully digital design
Alarm signaling
- Multi-zone display bar for “height on person” localization
- 4 light bars with selectable entry/exit and pacing indication
- Green and red metering signals proportional to the mass of the detected target
- 10 selectable continuous and pulsed tone plus 34 special tones
- 10 selectable sound intensities ranging from 0 to 90 dbA at 3.3 ft
Type of signaling
- Fixed or proportional to the mass in transit - visible from 19.7 ft under lighting of 4000lux
- 60 distinct zones (20 vertical x 3 lateral) entry and exit side
Programming
- Up to 50 built-in Security Programs
- Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
- Security level: International Standard (IS) command / Chip card
- Local by Control Unit alphanumeric display and keyboard
- Programming and chip card access protected by user and super-user passwords
Environmental data
- Power Supply : 100…277V~ }10%, 47…63Hz, 40 VA typical consumption
- Operating temperature: -4°F to 149°F (-34°F to 158°F upon request)
- Storage temperature: -34°F to 158°F
- Relative humidity: 0 to 95% (without condensation)
Installation data
- Automatic synchronization between two or more metal detectors with distance of down to 2" without the use of external cablesAutomatic Installation function (OTS)
Certification and compliance
- Compliant with and certified to the applicable Standards for Enhanced Metal Detectors (EMD)
- Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
- Compliant with all Airport Security Standards worldwide
- Compliant with applicable International Standards for electrical safety and EMC
Comprehensive support
- CEIA USA provides full operational and technical training support by certified personnel either at CEIA facility or at customer location.

APSiM2Plus
Integrated web-server & logger
Part Code: APSiM2Plus/E

High Precision Transit Counter

Anti-vandalism, anti-tampering threat protection
Part Code: 55659

IP65 Configuration
Outdoor sheltered permanent or non-sheltered short-term installations (single event entrance).

32.3” useful passage width

Metal Detector Divesting Table
Part Code: 610mm # 18074
1200mm # 39491
Outdoor version 1200 mm # 67021

RCU2
Advanced Remote Control Unit
Part Code: # RCU2

MBSU-2
Mains & Battery Supply Unit
Part Code: # MBSU-2

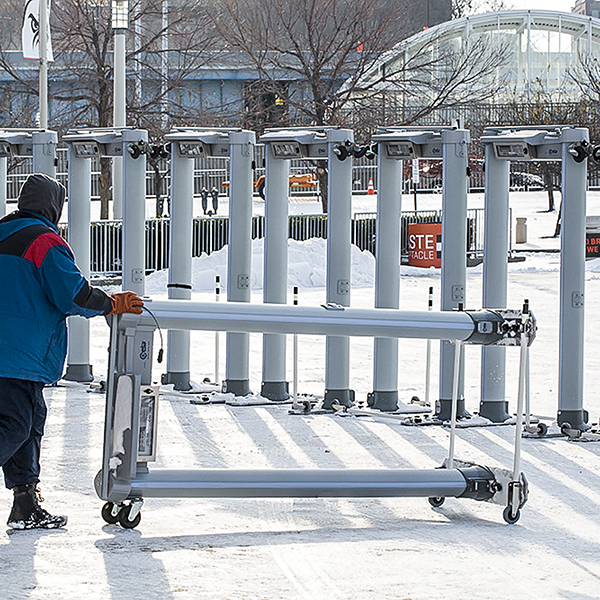

Wheel Kit - Long Range
For Elliptic Walk-Through Metal Detectors
For heavy duty, longer range movement of the walk-through metal detectors
Part Code: # 70569

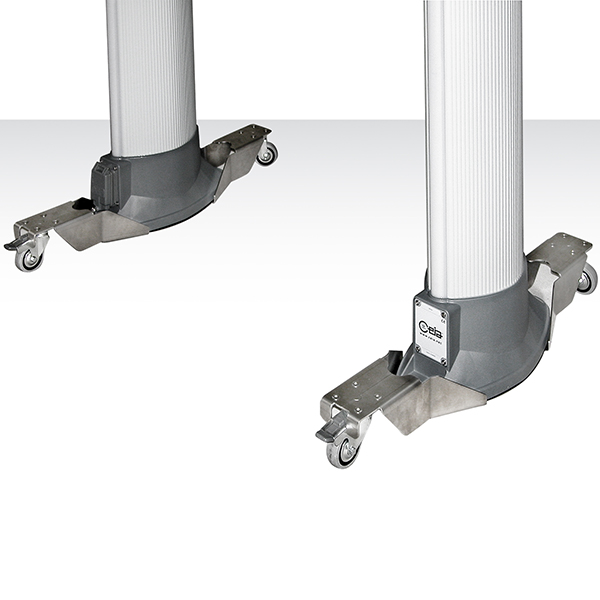

Wheel Kit - Short Range
For short range movement of the walkthrough metal detectors
Part Code: # 77318

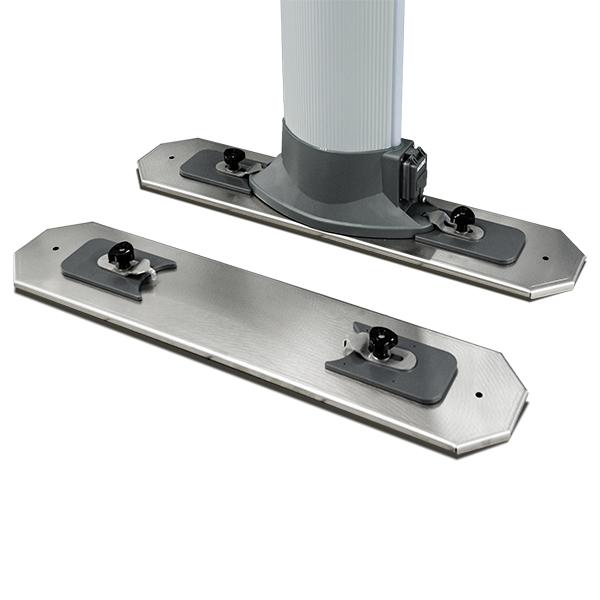

Stabilizing Plates
Comfortable alternative to direct floor mounting for uneven floor and mobile applications
Part Code: Standard version # 46705
Plastic stabilizing plates # 46938
Anti-tilting metal plates # 70914

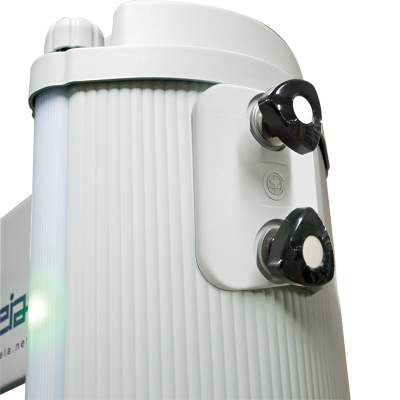

Tool-free assembly kit
Part Code: # 55699

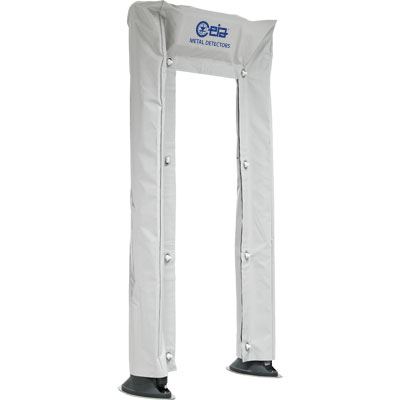

Elliptic Gate Protective Cover
Protects the gate in permanent outdoor installations during periods of inactivity
Part Code: # 64395

Chip cards
Chip cards for simple and secure selection of Security Levels and parameter setting
List of chip-cards available on request

IRC-1
Infrared Remote Controller for wireless remote programming of the control unit
Part Code: # 47180

MD-Scope
Powerful, PC based installation and service Software
Includes oscilloscope and terminal functionality
The connection is performed via BT (standard) or via cable connection
Part Code: # MD-SCOPE2

Kit OFV
Operator-level functionality test

Test samples kit Gun assembled
Test samples kit for threat detection accuracy
Part Code: # EMD-SK-GAL

Test samples kit Gun Disassembled
Test samples kit for threat detection accuracy
Part Code: # EMD-SK-GDML

Upper Connection Module
Part Code: # 46650

RRU
Remote Relay Unit
Part Code: # RRU

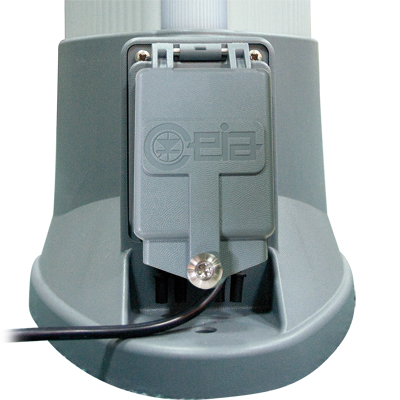

Waterproof Mains Power Supply
Part Code: # 43564

MD-WHK
Wireless repeater of acoustic indications for WTMDs
Part Code: MD-WHK
