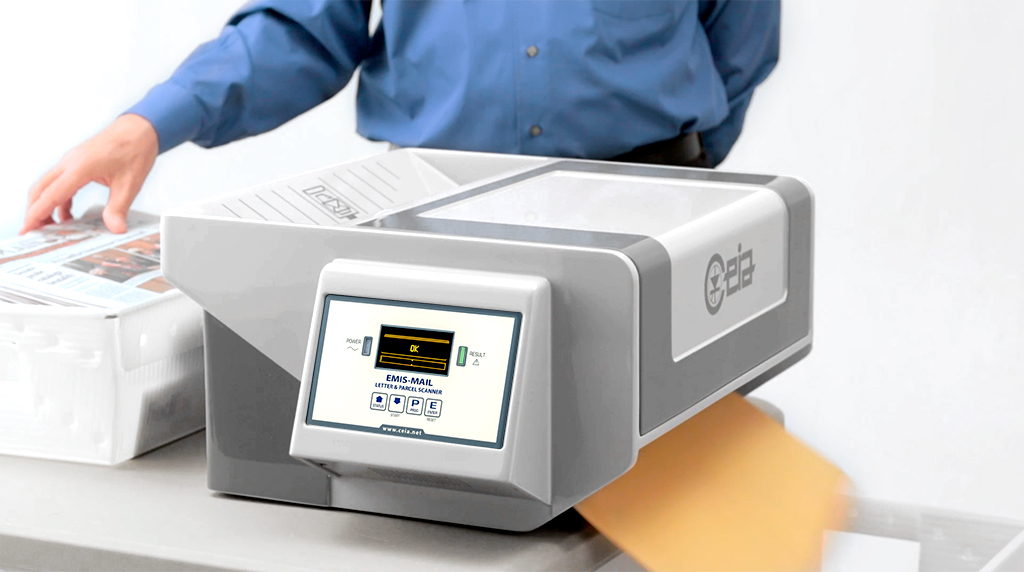

EMIS®-MAIL

Mail scanner for the detection of letter bombs and IEDs in small parcels


Certified by Governmental Laboratories
  • Automatic inspection of parcels and letters up to 18” in width and 3” thickness
  • Detection of detonators, batteries, trigger circuits and other metallic components of letter bombs
  • No alarm on metal staples, paper-clips and metal binding spirals
  • Ergonomic, compact design

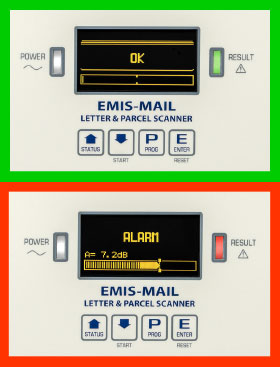

  • Confirmation of signal (OK/ALARM) for each package inspected
  • Operates on mains power supply and with NiMH rechargeable batteries (opt.)
  • No calibration or periodic maintenance required
  • Integrated battery charger
  • Optional embedded radioactive material detector

Brochure
Click To View US Brochure

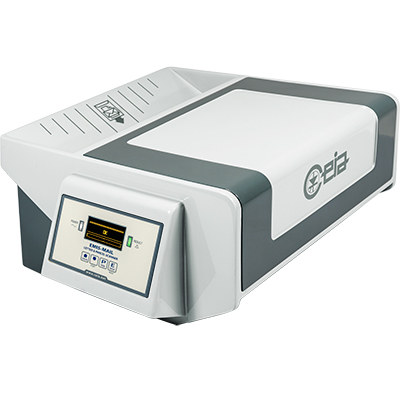

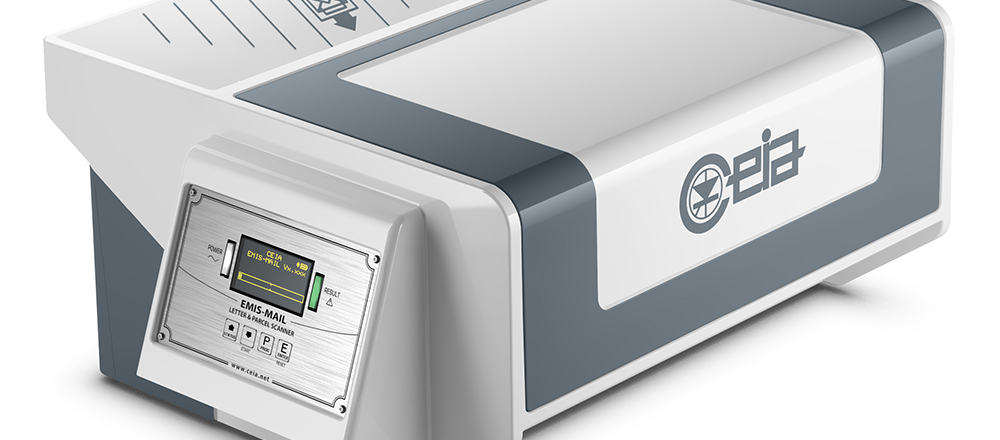

EMIS<sup>&reg;</sup>-MAIL

Mail scanner for the detection of letter bombs and IEDs in small parcels

Description

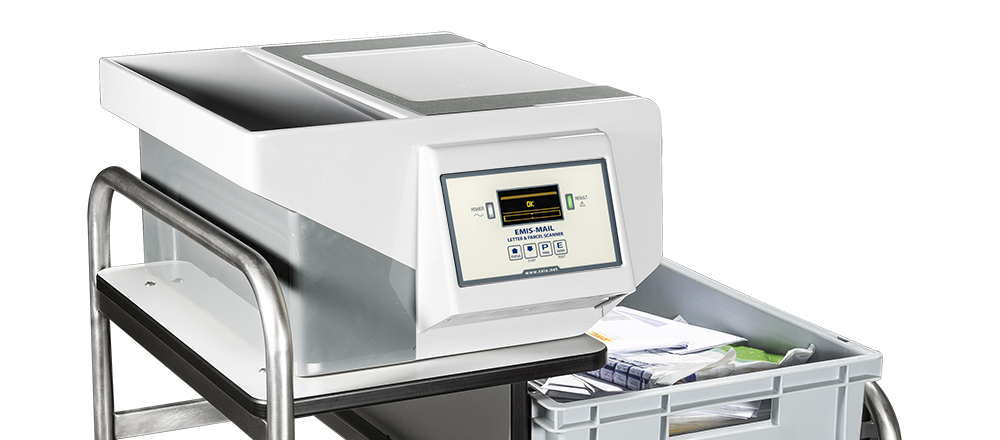

EMIS<sup>&reg;</sup>-MAIL - detail

Easy installation and use

The EMIS®-MAIL is designed to detect a wide variety of metal threat items including detonators, batteries, trigger circuits and other metal components of parcel bombs without false alarms for non-threat items such as metal staples, paper clips and metal binding spirals.

The EMIS®-MAIL is very easy to use and provides a fast and automatic alarm/no alarm signal confirmation per each inspected package. Its compact, ergonomic design along with the electric and built-in NiMH rechargeable battery power supply allows for independent operation in a variety of locations. An optional embedded radioactive detector is also available for radioactive material threat detection.

The EMIS®-MAIL is uniquely qualified to operate in a prison or correctional facility environment with specific settings available for prison parcel inspection. Along with meeting the strictest safety and security standards, EMIS®-MAIL is also compliant with the NIJ-0602.02 Department of Justice Detection requirement standard.

Key features of the CEIA EMIS®-MAIL include:

  • Ease of Installation and Setup
  • Ease and Speed of System Use with Limited Screener Training Required
  • Automatic Inspection of Parcels and Letters up to 18” Wide and 3” Thick
  • No Calibration or Periodic Maintenance Required
  • Independent Operation with Mains Power Supply or Built-in NiMH Rechargeable Batteries

Specifications

Download Specifications



Key features

  • High inspection speed
  • No alarm on metal staples, paper-clips and metal binding spirals
  • Digital programming with high-resolution OLED graphic display
  • Visual and audible alarm signalling
  • Built-in Self-Test System
  • Permanent memory storage of operating parameters without back-up batteries
  • Independent operation, with mains power supply or batteries (opt.)
  • Specific Settings available for Prison parcels inspection (Dept. of Justice requirements)
  • Compliant with NIJ-0602.02 Dept. of Justice Detection requirements


Structure

  • Transit opening: 18” x 3”
  • Degree of protection: IP40


Dimensions

  • 18.1” x 22” x 10” (WxDxH)


Weight

  • 35 lbs


Power supply

  • Voltage: 100-277 V~±10%, 47-63Hz with external AC/DC adapter
  • Current: 1.3 A max
  • Battery operation (optional)
    • 6 x 1.2V NiMH size D
    • Battery life: 12 hours
    • Battery-charger incorporated: recharging time 6 h


Programming

  • Type
    • Local: via integrated keypad
    • Remote: via Bluetooth, RS232
  • Data Logger Memory capacity: 10.000 events


Signalling

  • Audible
    • Internal buzzer
  • Visual

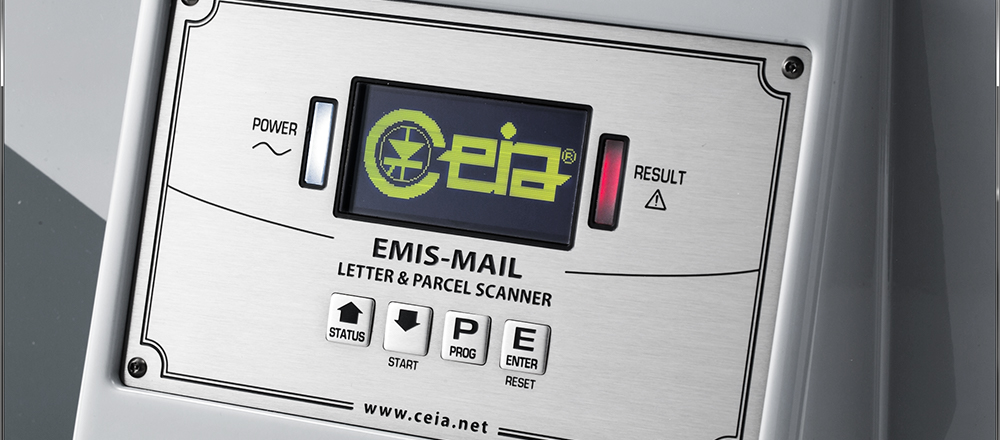

    • High-contrast OLED graphic display with bar-graph indication/zone location (pinpointing)
    • LED indicators on the control panel:
      • White: Power supply
      • Green: OK
      • Red: Alarm,Autodiagnosis
      • Blue: Alarm, detection of radioactive substances


Security / Safety

  • Access to programming protected by password
  • Galvanic isolation: operates on Low DC voltage


Communication

  • Incorporated Bluetooth (FCC ID: QOQWT12 - IC:5123A-BGTWT12A) interface, RS232


Environmental data

  • Temperature
    • Operating: 14°F to 122°F
    • Storage: -13°F to 140°F
  • Relative humidity: 5 to 90 %, without condensation


Conformity (Test Reports available upon request)

  • SAFETY
    • EN61010-1
    • ACGIH, 2014 Threshold Limit Value (TLV)
    • IEEE C95.1-2005
    • EC-Rec. 1999/519/EC
    • EN 50364:2010
  • EMC
    • EN61000-6-1
    • EN61000-6-3
  • RED
    • EN300330: Short Range Devices (SRD)


NATO stock number

  • 6665150105807


Gamma radiation detection

  • Optional upgrade for the detection of radioactive sources is available on demand. The gamma alarm indication includes the activity level (low/medium/high) and the CPS value (counts per second). Analysis time: 5 seconds

Applications

The EMIS-Mail devices are designed to be used in:
  • Government buildings
  • Diplomatic Missions
  • Public Authorities
  • Critical Infrastructures
  • Private Corporations Mailrooms
For the security screening of:
  • Letters
  • Small Parcels
