Chip Card System: The system allows the Head of Security to set the Security Level quickly, reliably and without having to program the device in any way.
Accurate detection of all metallic threat items
- Capability to detect the full range of metal weapon threats even within body cavities
- 60 localization zones: 20 vertical; 3 lateral
- Met-Identity technology for Identification of Threat Composition
The most advanced Security Standards require detection of all ferrous and non-ferrous metal weapons and of those constructed in special non-magnetic alloys. The HI-PE Plus detects firearms and knives of this type, even when they are hidden within body cavities, and accurately indicate the position of the threat, its intensity and its prevalent composition. Inspection personnel thereby acquire thorough knowledge of the metal item and can act, according to procedures, with maximum effectiveness and security.
Most powerful and versatile security features
Up to 50 built-in Security Programs:- Up to 30 International Standards
- Up to 20 Customizable Levels
Setting the Security Levels could not be easier and more versatile than in the HI-PE Plus.
Users can choose directly from the known International Standards or request implementation of a Standard personalized to their own requirements. Users can also create their own program and save it in internal memory for later use.
Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc. and security level selection.
One unique characteristic of the CEIA metal detectors is the chip-card system, which allows Security Management to set the Security Level quickly, reliably and without having to program the device in any way.
Any security standard can be enhanced with selectable random alarm probability.
High discrimination and throughput
- Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
- No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
- Better Discrimination = Shorter Lines and/or Less Staffing
The transit volume magnetic scanning system, invented by CEIA and applied since production of the first zonal Metal Detectors in 1986, allows state-of-the-art detection and discrimination results.
The HI-PE Plus has a very low nuisance alarm rate even at the strictest Security Standards requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.
New WTMDs IP66 Control Unit
- New integrated design
- Total mechanical compatibility with IP20 (plastic) and IP65 (stainless steel) control units:
- Dimensional
- Installation
- Wiring
- Chip card
- Robust structure through the use of high-performance polymers for the construction of housing
- Waterproof / Dustproof: IP rating IP66 compliant
- Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
- Display made with specific polymer to improve the visibility of the LEDs by increasing the defi nition and clarity
Unique alarm signalling
- High visibility of the control unit and the zone indication independent from the operator position and the installation environment
- Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
- 10 Alarm Volume Levels
- Very High Precision Transit Counter
Accurate signaling is essential for best operation and flow management. The detector provides the user with fully-programmable signaling. Both entry-points can indicate with a high level of accuracy, even simultaneously, the vertical and lateral areas of transit of the threats detected, and can also be configured as ’traffic lights’ to control transits through the detector.
Rapid installation
- One touch guided automatic installation (OTS)
- Innovative function assisting the installation through an automatic step-by-step procedure
- Continuous self diagnostics assures monitored performance reliability
Download Specifications
Key features
- Wide range of threat detection from guns to ½ cutter blade
- Excellent discrimination of personal metal effects
- 60 localization zones (20 vertical x 3 lateral) with left, center and right indication
- Met-Identity technology identifies and signals the metal type in real time
- High precision bidirectional counter with automatic rescreening compensation
- Random alarm capability programmable from 0% to 100%
- Exceptional Immunity to external interferences
- Standard Interfaces: BT wireless communication, Infrared
- Other available interfaces: Ethernet, USB
Quality
- Continuous self diagnostic system
- Proven reliability
- No periodic re-calibration and preventive maintenance required
- No scheduled maintenance
- Fully digital design

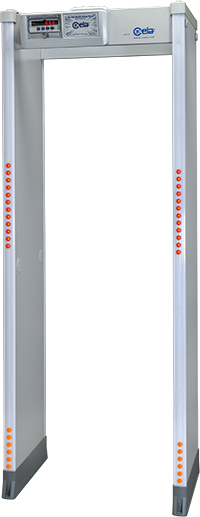

Gate structure
- State-of-the-art, robust and washable panels
- Protected against aging, weather and wear
Central control unit
- Ergonomic and robust design
- High visibility alphanumeric display and programming keyboard
- Made of advanced plastics or stainless steel and anti-vandalism construction (option)
- Access to the front panel protected by hardware key and 3 levels of passwords
Alarm signaling
- Visual signals
- Multi-zone display bar for “height on person” localization
- 4 light bars with selectable entry/exit and pacing indication
- Green and red metering signals proportional to the mass of the detected target
- Audio signals
- 10 selectable continuous and pulsed tone plus 34 special tones
- 10 selectable sound intensities ranging from 0 to 90 dbA at 1m
Type of signaling
- Visual: Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
- Visual zone indication: 60 distinct zones (20 vertical x 3 lateral) entry and exit side
Programming
- Up to 50 built-in Security Programs
- Remote via Infrared Remote Control Unit, BT wireless communicationTM or Ethernet 10/100 base T (option) interface
- Security level
- International Standard (IS) command
- Chip card
- Local by Control Unit alphanumeric display and keyboard
- Programming and chip card access protected by user and super-user passwords
Operational features
- High discrimination and transit flow rates five or more times greater than other metal detection systems
- Quick reset time as short as 0.2 seconds for high throughput rate
- Very high detection speed (up to 15 m/sec.)
- Built-in operational functional verification
- One-touch key reading of inbound, outbound and Security Level Data
Installation data
- Automatic synchronisation between two or more metal detectors with distance of down to 5 cm without the use of external cables
- Automatic Installation function (OTS)
Environmental data
- Power supply: 100…277V~ ±10%, 47…63Hz, 40 VA typical consumption
- Operating temperature: -20°C to +65°C (-37°C to +70°C upon request)
- Storage temperature: -37°C to +70°C
- Relative humidity: 0 to 95% (without condensation)
Certification and compliance
- Complies with the applicable Standards for Law Enforcement and Correctional Facilities
- Compliant with and certified to the applicable Standards for Enhanced Metal Detectors (EMD)
- Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
- Compliant with applicable International Standards for electrical safety and EMC
- Harmless to magnetic media (CD, tapes, etc.)
Comprehensive support
- CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer location

APSiM2Plus
Integrated web-server & logger, battery back-up and charger
Part Code: APSiM2Plus/P

Anti-vandalism, anti-tampering threat protection
Part Code: 55629

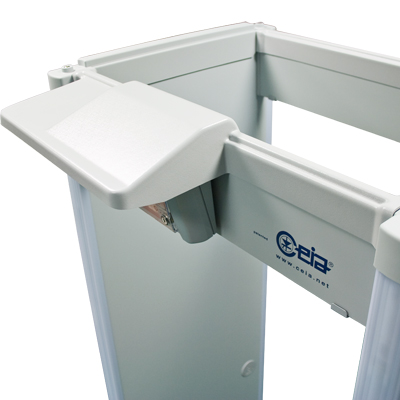

Weather Resistant Protection
Part Code:
- 720 mm passage width (part # 55630)
- 820 mm passage width (part # 55633)

APSM
Embedded battery back-up and charger

Crossbar battery back-up
Crossbar battery back-up in stainless steel case.
Part Code:
- 55681
- Protection cover: 75122

Metal Detector Divesting Table
Part Code: 610mm # 18074
1200mm # 39491
Outdoor version 1200 mm # 67021

RCU2
Advanced Remote Control Unit
Part Code: # RCU2

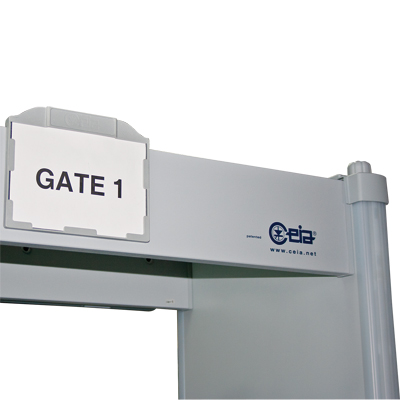

ID-Holder
Part Code: # 54095

MBSU-2
Mains & Battery Supply Unit
Part Code: # MBSU-2

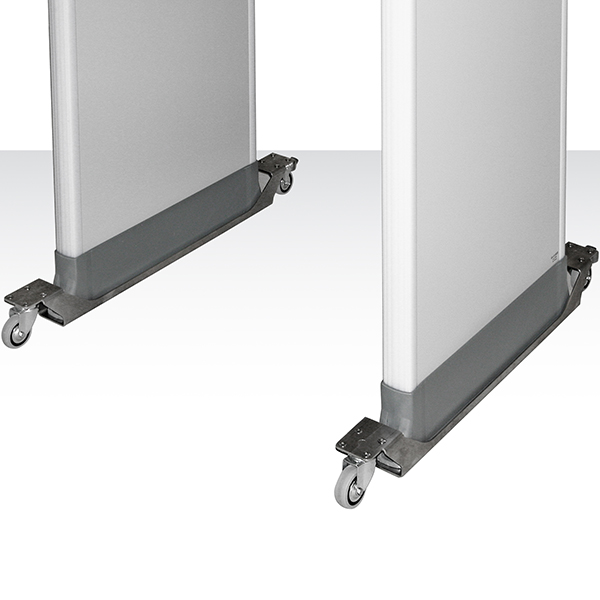

Wheel Kit - Long Range
For Panel Walk-Through Metal Detectors
For heavy duty, longer range movement of the walk-through metal detectors
Part Code: # 70796

Wheel Kit - Short Range
For short range movement of the walkthrough metal detectors
Part Code: # 75459

Chip cards
Chip cards for simple and secure selection of Security Levels and parameter setting
List of chip-cards available on request

IRC-1
Infrared Remote Controller for wireless remote programming of the control unit
Part Code: # 47180

MD-Scope
Powerful, PC based installation and service Software
Includes oscilloscope and terminal functionality
The connection is performed via BT (standard) or via cable connection
Part Code: # MD-SCOPE2

Kit OFV
Operator-level functionality test

Test samples kit Gun assembled
Test samples kit for threat detection accuracy
Part Code: # EMD-SK-GAL

Test samples kit Gun Disassembled
Test samples kit for threat detection accuracy
Part Code: # EMD-SK-GDML

Kit FGA and TFV
Functionality test and adjustment of gain at ground level

Upper Connection Module
Part Code: # 46650

RRU
Remote Relay Unit
Part Code: # RRU

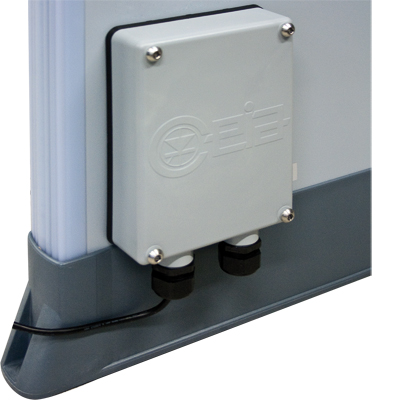

Waterproof Mains Power Supply
Part Code: # 43564

MD-WHK
Wireless repeater of acoustic indications for WTMDs
Part Code: MD-WHK
