  • Fully automatic detection of detonators and metal components of explosive devices
  • Low-intensity electromagnetic field: uses no ionizing radiation
  • Available in different sizes for inspection of single packages or entire pallets
  • No dedicated operator needed
  • Complete data logging and traceability
  • No periodic maintenance or calibration required

Brochures
Click To View GB Brochure
Click To View F Brochure
Click To View E Brochure



Manuals

EMIS 130160 - EMIS 130200

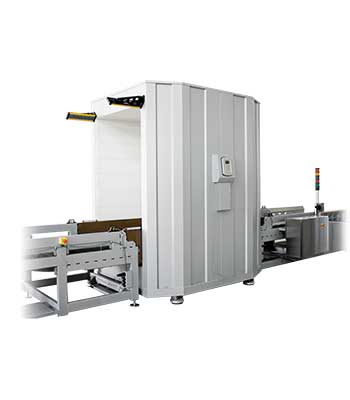

EMIS models 130160 and 130200 are the first available automatic e.m. scanners for inspection of entire pallets of non-metallic cargo. Moreover, the CEIA EMIS Series are the first e.m. scanners that have been qualified according to the TSA Air Cargo Screening Program. They are also the first devices that have been tested under the ECAC Common Evaluation Process Framework and meet the ECAC performance standard for Metal Detection Equipment (MDE).

Description

Fully automatic detection

The EMIS is designed to automatically detect detonators and metal components of explosive devices inside paper, newspaper, perishable goods such as produce, fish and meat (fresh or frozen) and organic material in general. Electromagnetic inspection is the most suitable and quickest method for checking non-metallic cargo. The advanced technology employed in the EMIS minimizes the interaction with the goods themselves and does not depend on visual interpretation of an image by an operator.

Efficiency and low cost of ownership

The EMIS offers the ability to automatically screen complete pallets, helping to avoid the need for breakdown and ensuring the highest throughputs are maintained when compared to other approved technologies. The automatic electromagnetic analysis offers a superior level of detection performance guaranteeing the safety of all shipments.
The automated screening process does not require the use of an operator for image interpretation and no regular staff rotation periods for constant operation. Peak periods can be helped by the increased throughput EMIS offers, combined with the ability to redeploy staff normally associated with image interpretation to areas where they are most needed.
The solidstate construction requires no periodic maintenance or calibration ensuring a substantial reduction in the life-cycle costs of the equipment.

Specifications

Detection functions

  • Analysis of containers of perishable goods and paper without metal content
  • CEIA electromagnetic-profile analysis technology
  • 0.5 ppm by weight Detection Sensitivity at maximum load (130160, 130200 models)
  • Tunnel useful area: 130160 model: 1300 mm x 1700 mm; 130200 model: 1300 mm x 2000 mm
  • Height of the conveyor belt: 735 mm min / 755 mm max
  • Maximum Conveyor Load: 1500 Kg
  • Maximum pallets height 130160 model: 1650 mm - 130200 model: 1950 mm
  • Speed/Inspection Time: Less than 1 min per pallet


Structure

  • Material AISI 316L Stainless Steel
  • Protection degree IP65
  • Weight: 130160 model: 5000 kg; 130200 model: 5150 kg


Power supply

  • Supply voltage 200-240 V, 50-60 Hz
  • Maximum current 20 A


Programming and communications

  • Modern, rugged and user friendly interface
  • Easy to read, high-contrast (3000:1) graphic display
  • Rugged, anti-vandalism stainless steel keyboard
  • Programming access protected by multiple password levels
  • Selection of the operative program
  • Programming type: Local, through the built-in keyboard
  • Memory: 125 programs, 100000 storable events
  • USB Storage device connection


Alarm functions

  • Automatic slowing and stopping of the conveyor
  • Manual alarm reset and consequent restarting of the conveyor
  • Visible and audible alarms


Control inputs

  • Connection of: following conveyor authorization, emergency button
  • Serial interface RS232: Built-in
  • Bluetooth connection: Built-in (deactivable)
  • USB Interface: Built-in
  • Ethernet interface: Built-in 10 - 100 Base-T
  • Video Camera: Built-in IP camera


Outputs

  • 5 programmable relays (30Vca – 2.5A) for the activation of external devices
    • Ready to load relay
    • Ready relay
    • Ejector relay
    • Preceding conveyor relay
    • Item clear relay


Environmental data

  • Operating temperature: -10°C to +50°C
  • Storage temperature: -25°C to +70°C
  • Relative humidity: 0 to 95% (without condensation)


Conformity

  • Conforms to the international standards currently applicable for electrical safety and EMC, and to the applicable EC Regulations
  • Complies with Regulations relating to pacemakers, defibrillators or other vital support systems, pregnant women and magnetic storage media (floppy disks, audio cassettes, video cassettes and similar)


Applicable commodity groups

  • Grains and animal feed, produce, perishables, bakery goods, dry goods
  • Seafood and Meat
  • Textiles and Clothing (without metallic accessories)
  • Paper products, plastic, rubber
  • Printed Material
  • Flowers and herbs


For the following CCSF

  • Shipping facilities
  • Freight Forwarding Facilities
  • Third Party Logistics Providers
  • Manufacturing Facilities
  • Warehouses
  • Distribution Centers
  • Growers of produce
