  • Most Sensitive WTMD, fully compliant with the NIJ-0601.02 and NIJ-0601.03 Standards
  • Very Accurate Pinpointing of individual and multiple metal targets
  • Integrated Correctional Profiling System (optional)
  • Exceptional Immunity to environmental interferences
  • Unmatched Reliability

Click To View US Brochure

SMD<sup>&reg;</sup>601 Plus

The new SMD®601 Plus extends the detection sensitivity of the SMD®601 to metal threats previously considered undetectable due to their minimal dimensions and metal composition similar to the ones specified in the new NIJ-0601.03 Standard.


SMD<sup>&reg;</sup>601 Plus - detail

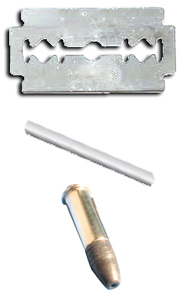

Ultra-High Sensitivity capability. Examples of additional detectable targets: Disposable Razor Blades; Special metal items (e.g. AISI 300 series Stainless Steel); Bullets

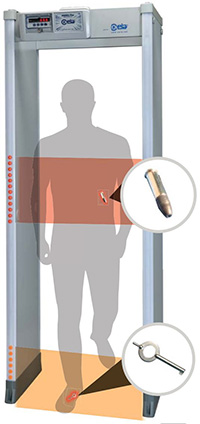

SMD®601 Plus detects even the smallest metal items anywhere on or in the body

The SMD®601 Plus is a very high sensitive Walk-Through Metal Detector.
An absolute must when the detection of extremely small metal masses is required on the body or even if hidden in body cavities.
A full-height light bar displays the location of the detected metal masses in transit. This results in rapid identification of threats and a reduction or elimination of the need for manual searches.
  • Very accurate pinpointing of individual and multiple metal targets
  • Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
  • Built-in programs to screen visitors and staff for weapons and contraband

Advanced Alarm Indication

  • Entrance and Exit Multi-Zone Display Bars each programmable as entry pacing and/or localization lights
  • Flexible Acoustic Alarm Signaling System:
    • 10 Continuous and Pulsed Tones
    • 34 Special Sounds
  • 10 Acoustic Intensity Levels programmable from 0 up to 90 dBA at 1 m
  • High Precision Transit Counter:
    • In-Bound Transits
    • Out-Bound Transits
    • Alarm Rate
An accurate and comprehensive alarm system allows the best use of Metal Detector. Optical indicators are fully programmable, both gate sides can indicate either separately or simultaneously vertical transit zones of detected threats and also be configured as traffic lights to regulate the access of the people being screened.

Comprehensive Security Features

  • Over 40 built-in Security Programs
    • Up to 22 pre-programmed Security Programs
    • Up to 20 user programmable Security Programs

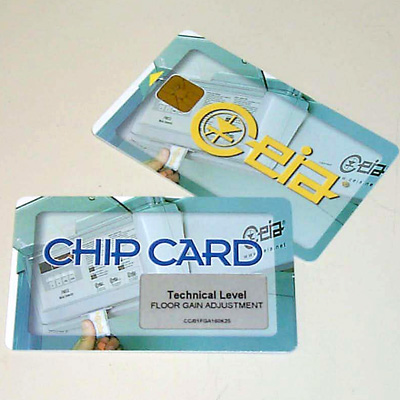

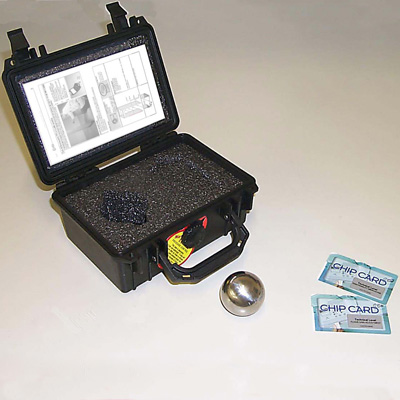

  • Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc...) and Security Level Selection. A feature of CEIA’s Metal Detectors is a chip-card system that allows the Head of Security to set the Security Level quickly, reliably and discreetly, without any programming operation on the detector itself.


Download Specifications

Key features

  • Ultra High Sensitivity
  • Fully compliant with the NIJ-0601.02 and NIJ-0601.03 Standards
  • 20 High Precision localization zones
  • High precision bidirectional counter with automatic rescreening compensation
  • Chip Card capability for fast, simple, and secure programming
  • Random alarm capability programmable from 0% to 100%
  • Exceptional Immunity to external interferences
  • Can be combined with the Network based CEIA Profiling System for further sensitivity enhancement by compensating non-removable personal metal items
  • Powered by safe low voltage DC

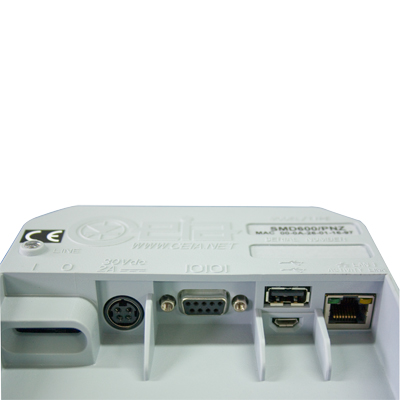

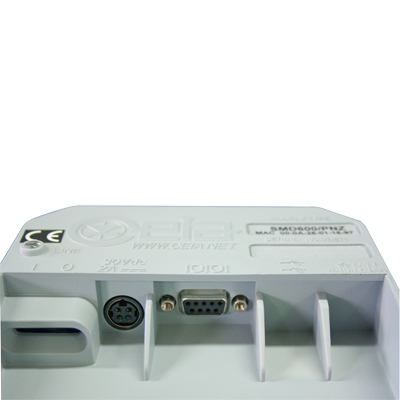

  • Standard Interfaces: RS-232, BT wireless communication, Infrared
  • Other available interfaces: Wi-Fi, Ethernet, USB
  • Continuous self diagnostic system
  • Proven reliability
  • No periodic re-calibration and preventive maintenance required
  • No scheduled maintenance
  • Fully digital design

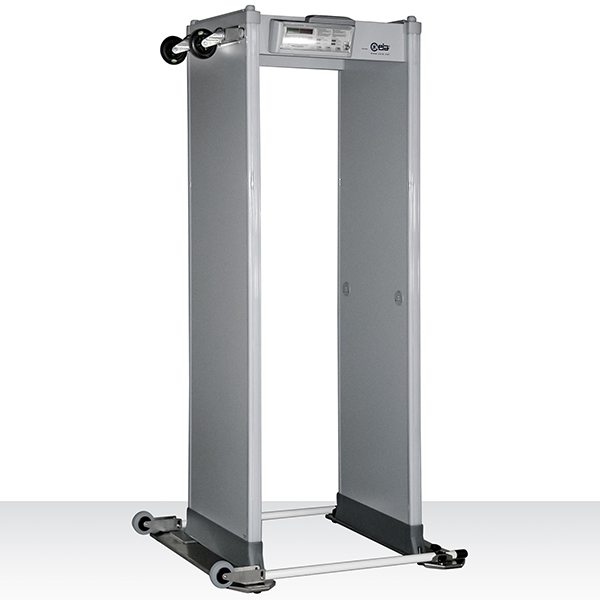

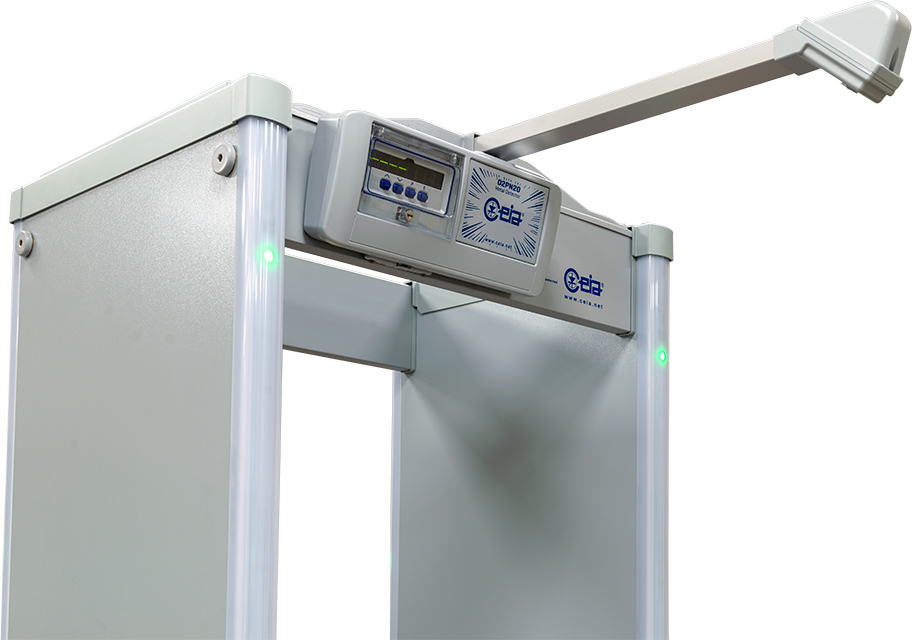

Walk-Through gate structure
  • State-of-the-art, robust and washable panels
  • Protected against aging, weather and wear

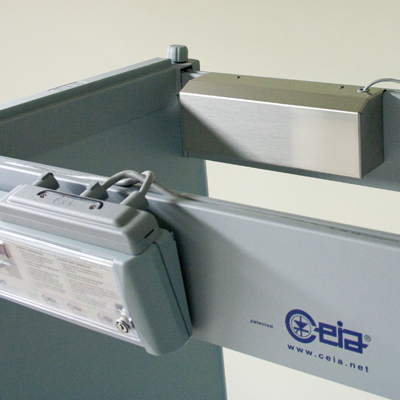

Central Control Unit
  • Ergonomic and robust design
  • High visibility alphanumeric display and programming keyboard
  • Made of advanced plastics or stainless steel and anti-vandalsim construction (option)
  • Access to the front panel protected by hardware key and two levels of passwords
Alarm signaling
  • Visual signals
    • Multi-zone display bar for “height on person” localization
    • 2 light bars with selectable entry/exit and pacing indication
    • Green and red metering signals proportional to the mass of the detected target
  • Audio signals
    • 10 selectable continuous and pulsed tone plus 34 special tones
    • 10 selectable sound intensities ranging from 0 to 90 dbA at 1m
Type of signaling
  • Visual: Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
  • Visual zone indication: 20 distinct zones
  • Over 40 built-in security programs

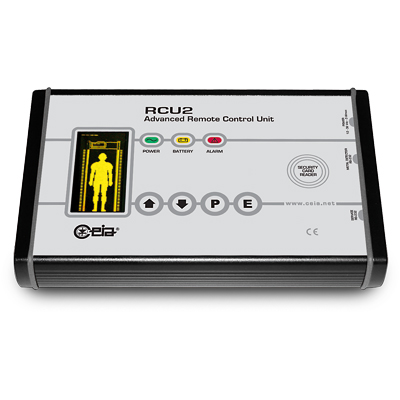

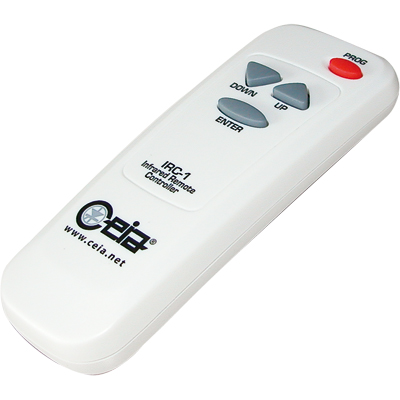

  • Remote via RS-232, Infrared Remote Control Unit, BT wireless communication(™) or Ethernet 10/100 base T interface
  • Security level
    • International Standard (IS) command
    • Chip card
  • Local by Control Unit alphanumeric display and keyboard
  • Programming and chip-card access protected by user and super-user passwords
Operational features
  • Quick reset time as short as 0.2 seconds for high throughput rate
  • Very high detection speed (up to 50 ft/sec.)
  • Built-in operational and technical functional verification
  • One-touch key reading of inbound, outbound and Security Level Data
Installation data
  • Automatic synchronisation between two or more metal detectors with distance as close as 30 cm without the use of external cables
  • Built-in floor sensitivity adjustment function
  • Automatic Installation function (OTS)
Shipping data
  • Dimensions (mm): 2340 x 290 x 800 (WxDxH)
  • Weight: 74 kg
Environmental Data
  • Power Supply: 100…240V~ -10/+15%, 47…63Hz, 70 VA max
  • Operating temperature: -20°C to +70°C (-37°C to +70°C upon request)
  • Storage temperature: -37°C to +70°C
  • Relative humidity: 0 to 95% (without condensation)
Certification and Compliance
  • Complies with and exceeds the applicable
  • Standards for Law Enforcement and Correctional Facilities
  • Fully compliant with, and exceeding, the NIJ-0601.02 Standard
  • Compliant with the applicable electromagnetic Standards on Human Exposure and
  • Pacemaker Safety
  • Compliant with applicable International Standards for electrical safety and EMC
  • Harmless to magnetic media (floppy disks, tapes, etc.)
