SECURITY Detection

02PN20v3 Elliptic

Anti-Covid compliant security checkpoint for the automatic inspection of people in transit

Company Presentation

Visit us at
VenuesNow Conference
Seattle, WA - United States of America
Oct 21 - 22, 2021
Exhibitor: CEIA USA Ltd.

NCS4 National Sports Safety and Security Conference and Exhibition
Phoenix, AZ - United States of America
Nov 9 - 10, 2021
Exhibitor: CEIA USA Ltd.

See upcoming events >>

  • 1 - Detection of metallic threats with minimum contact
    • Low rate of nuisance alarms and secondary checks
    • High localization accuracy
    • Display of individual and multiple targets
  • 2 - Automatic detection of high body surface temperature
    • Infrared, visible and multispectral images
    • Automatic identification of maximum temperature zones
    • Exclusive integrated thermal calibration system with double reference
    • Selective measurement on one person only in transit
  • 3 - Throughput control with check of transit direction and completion
    • Multiple optical barriers
    • Automatic count of transits and alarms
  • Optimised touchscreen user interface for managing checks and displaying alerts
    • Metal and high temperature alarms
    • Recording of transit and alert data
    • Integrated tools for advanced search of alarm events
  • Stainless steel and technical polymer construction
  • Integrated radioactive material detector (radiation sensor optional)
  • Integrated cell phone ferromagnetic detector (MI2 sensor optional)
  • Patent pending

Click To View US Brochure

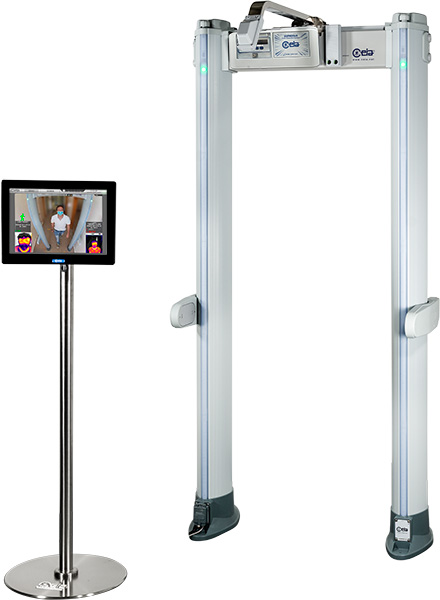

02PN20<sup>&trade;</sup>v3 Elliptic

The 02PN20v3 Elliptic is a security checkpoint station, compliant with COVID containment requirements which offers state-of-the-art features for the security and protection of inspection personnel and inspected persons.


02PN20<sup>&trade;</sup>v3 Elliptic - detail

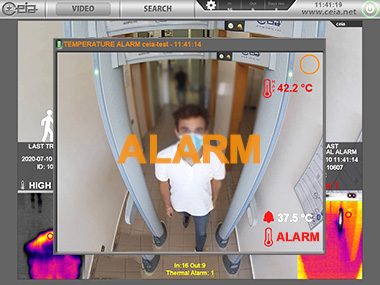

Optimised touchscreen user interface for managing checks and displaying alerts

The rapid spread of COVID-19 infections has required the introduction of containment measures at all levels. Measures include the use of face masks, social distancing and also the measurement of body temperature as an indicator of possible virus infections.

Security checkpoints at the entries to airports and other sensitive buildings should now be equipped with security systems compliant with the new measures. This means detecting target threats with the minimum rate of nuisance alarms in order to:

  • Limit the number of secondary checks necessary
  • Reduce contacts between checkpoint operators and persons in transit
  • Reduce waiting times upstream from the system.
All in all, this requires a metal detector with a very low nuisance alarm rate.

In order to comply with COVID containment measures, screening operations should also include the measurement of body surface temperature to intercept fever temperatures.

This has to be done without adding any extra manual operations and avoiding any contact between screeners and the persons screened.

Anti-Covid compliant security checkpoint

  • Detection of metallic threats in accordance with security level settings. This is done by a next-generation inductive detector with high range uniformity and excellent discrimination of metal personal effects thereby reducing the number of secondary checks necessary
  • High accuracy detection zone display for individual and multiple objects to speed up screening operations
  • Body surface temperature measurement using a combined visible-infrared multispectral system which automatically indicates the maximum value and signals an alarm when the legal threshold is exceeded
  • Continuous calibration of the thermal measuring system using two grey stabilised bodies
  • Transit direction and count verification with synchronization of the temperature measurement of the inspected person inside the gate. This ensures maximum accuracy and unique signalling
  • Display of alarm signals on a standard operator interface on a kiosk fitted with a PC monitor
  • Additional optional sensors for detecting radioactive material or cell phones

Checkpoint monitoring and recording

  • Detailed reporting of the transits data and the security device configuration data
  • Data collection from each gate detailing the information on every single transit including body temperature, metal alarms and gamma alarms (optional)
  • Monitoring of the functionality of each gate
  • Setting of the gate working parameters
  • Metal and high temperature alarms
  • Gamma alarms (optional)
  • Cell phone alarms (optional)
  • High security data encryption
  • Transits flow monitoring

Software features

  • Wide capability of data storage: 100,000+ transits
  • Programmable data retention time
  • Videos include time/date stamp, alarm, and all details on the alarm type
  • Filters video results by alarm, date, and time
  • Exports full video or still images of any frame


Download Specifications

Gate structure

  • State-of-the-art, robust and compact elliptical columns
  • Protected against aging, weather and wear

Operational features

  • High discrimination and transit flow rates five or more times greater than other metal detection systems
  • Quick reset time as short as 0.2 seconds for high throughput rate
  • Very high detection speed (up to 50 ft/sec.)
  • Built-in operational functional verification
  • One-touch key reading of inbound, outbound and Security Level Data


  • Continuous self diagnostic system
  • Proven reliability
  • No scheduled maintenance
  • Fully digital design

Alarm signaling

  • Multi-zone display bar for “height on person” localization
  • 4 light bars with selectable entry/exit and pacing indication
  • Green and red metering signals proportional to the mass of the detected target
  • 10 selectable continuous and pulsed tone plus 34 special tones
  • 10 selectable sound intensities ranging from 0 to 90 dbA at 3ft

Type of signaling

  • Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
  • 60 distinct zones (20 vertical x 3 lateral) entry and exit side


  • Up to 50 built-in Security Programs
  • Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
  • Security level
    • International Standard (IS) command
    • Chip card
  • Local by Control Unit alphanumeric display and keyboard
  • Programming and chip card access protected by user and super-user passwords

Environmental data

  • Power Supply : 100…277V~ ±10%, 47…63Hz, 40 VA typical consumption
  • Operating temperature: -4°F to 149°F (-34°F to 158°F upon request)
  • Storage temperature: -34°F to 158°F
  • Relative humidity: 0 to 95% (without condensation)

Multispectral image

  • Visible, 0.4 μm – 0.7 μm
  • Infrared 8 μm – 14 μm

Visible technology

  • Resolution 1280 x 800

Infrared technology

  • Bolometric
  • Measurement sensitive elements: 19.200

Thermal alarm threshold

  • Programmable from 93°F to 108 °F


  • +/- 0.54°F

Measurement height

  • 39.5” (minimum)
  • 81” (maximum)


  • Automatic, by exclusive integrated thermal calibration system with double reference (patented)
  • Each reference is constantly controlled by a sensor device that is 100% tested on a production setup that is NIST traceable and verified with equipment that is calibrated to ISO/IEC 17025 accredited standards.

Working environment conditions

  • Indoor, 59°F – 86°F
  • Relative humidity < 80%



Click To View US Brochure

CE Certificate
