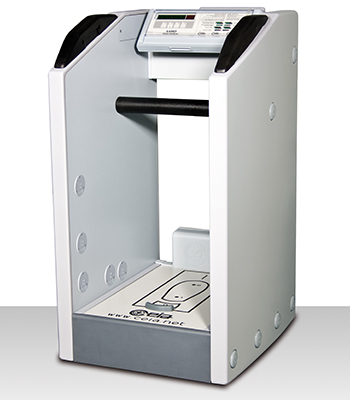

The CEIA SAMD^® Shoe Metal Detector is designed to overcome the inconvenience currently experienced in examining passengers’ shoes.

Faster security checks at airports

The dramatic events of 11th September 2001 caused the Airport Security Authorities to strengthen checks on passengers and their personal effects.

Notwithstanding the extremely high discrimination capability of last-generation CEIA walk-through Metal Detectors, a certain percentage of shoes containing significant metal masses still cause alarms during transit, and so have to be examined by security staff with another inspection system - usually the X-ray scanner - to ensure that there are no metal weapons hidden in them. This obviously causes inconvenience to the passengers in transit.

In the light of this new operational scenario, CEIA has developed the SAMD^® Shoe Analyzer to check shoes worn by passengers without having to remove them, employing low-frequency electromagnetic fields which are non-ionizing and completely harmless.

The SAMD^® Shoe Analyzer, which complies with the most recent, stringent security requirements, reduces by up to 10 times or more the number of shoes that must be examined manually.

Download Specifications

Special Features

Professional high-integration, optimum reliability electronics
D.S.P. analysis with numeric filter of the signal received
High immunity demodulation of the signals
Exceptional discrimination
Immediately-available display of security level

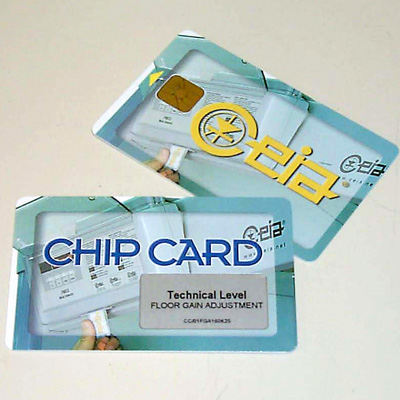

Chip card system for direct selection of the operating mode, according to International Security Standards or customer requirements. The use of the card may be protected by password
Programmability of all the parameters protected by passwords
Very reduced analysis time for a rapid flow-rate (2 seconds)
Automatic synchronisation between 2 or more devices with a reciprocal distance of down to 1 m without the use of cables

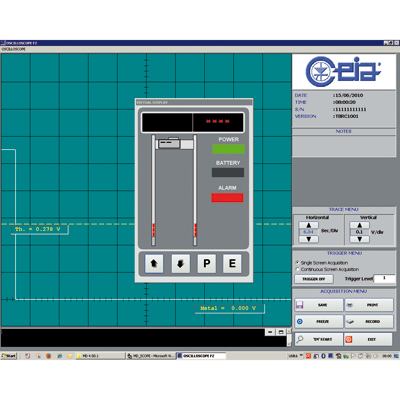

Capacity for total remote control through an RS-232C serial line
Automatic adjustment to environmental parameters and absence of initial or periodic calibrations.
Proper environmental installation checked by means of a read-out of the general noise “GN” and electromagnetic noise “EN”.
Complete interchangeability of electronics units and antennae thanks to the repeatability of the manufacturing processes

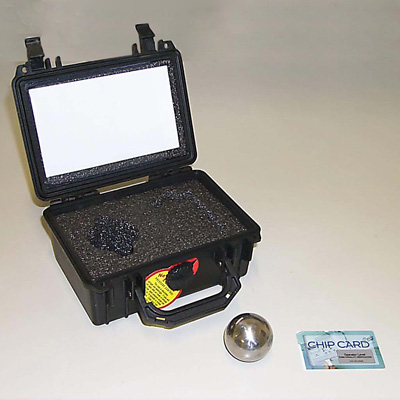

Functionality tests can be carried out using accessory kit

Central Electronics Unit

Degree of protection: IP 20 (IEC 529), with standard casing
Dimensions and weight: IP 20: 380 x 157 x 82 mm; 1,5 kg

Installation Data

Power supply: 115/230V ˜ ±15%, , 50 … 60 Hz, 30 VA

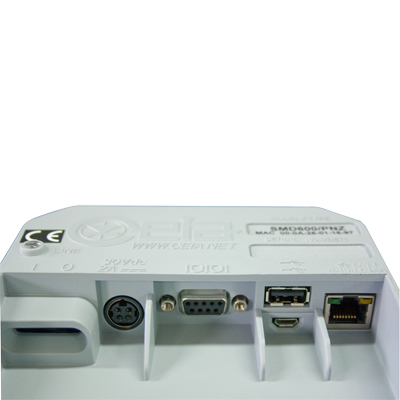

Serial interface: RS-232C type with low impedance for connection to terminal, computer or external modem at a distance of up to 100 m
Working temperature: -20 to +70°C
Storage temperature: -35 to +70°C
Relative humidity: 0 to 95%, without condensation
Designed and built using advanced technological criteria, the probe is extremely robust and stable, yet elegant and fully protected against the effects of weather and wear-and-tear
Total weight: 60 kg

Signalling

Display of use instructions
Detection of metallic masses
Sabotage or internal self-diagnosis
Visual: fixed or proportionate to the mass in transit - visible from 6m under lighting of 4000lux.
Audio: programmable up to 90 dB(A) at 1m

Certification and Conformity

Certified as harmless to wearers of pacemakers, invalids, pregnant women and so forth.
Harmless to magnetic media
Conforms to the detection requirements of EU Reg. N°1862/2006
Conforms to the provisions of EU Reg N°857/2005 for Airport Security
Conforms to the international standards currently applicable for electrical safety and EMC, and to the applicable EC Regulations.
Conforms to all Airport Security Standards worldwide
