  • Superior Detection and Throughput
  • High Discrimination of Non-Threat Items
  • Exceptional Immunity to external interferences
  • Compliant with the strictest Security Standards for weapons detection
  • New mechanical structure with IP66- IP65 protection degree
  • Unmatched Reliability
  • Aesthetic, Unobtrusive and Light Weight

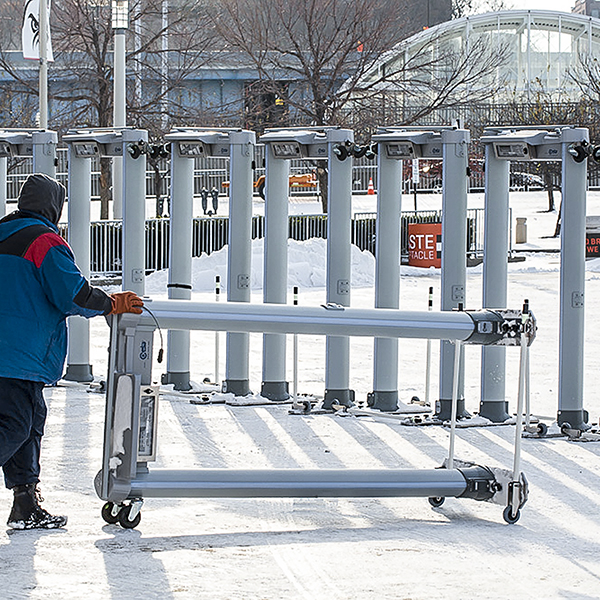

  • Rapid Installation

Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View JP Brochure

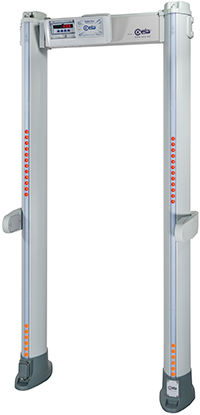

PMD2 Plus Elliptic<sup>&reg;</sup>

This is a zonal model featuring modern, elegant lines, and can be inserted into the most prestigious surroundings with the minimum visual impact. Easy to assemble and transport, the PMD2 Plus Elliptic® is also recommended for portable use in temporary or itinerant installations. The technology employed allows high discrimination to be achieved even at stringent security levels.

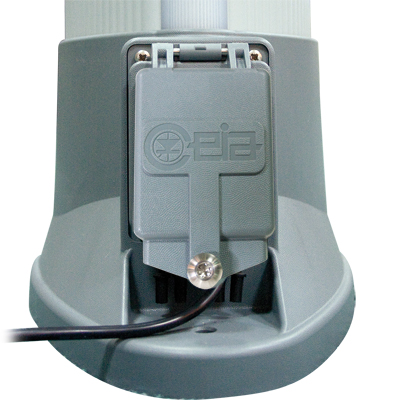

PMD2 Plus Elliptic<sup>&reg;</sup> - detail

With Met-Identity technology, the PMD2 Plus allows you to know where, how much and what type of metal is being brought into the secure area.

Most powerful and versatile security features

Up to 50 built-in Security Programs:
  • Up to 30 International Standards
  • Up to 20 Customizable Levels
Setting the Security Levels could not be easier and more versatile than in the HI-PE Plus.

Users can choose directly from the known International Standards or request implementation of a Standard personalized to their own requirements. Users can also create their own program and save it in internal memory for later use.

Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc. and security level selection.

One unique characteristic of the CEIA metal detectors is the chip-card system, which allows Security Management to set the Security Level quickly, reliably and without having to program the device in any way.

Any security standard can be enhanced with selectable random alarm probability.

Detection of all metallic threat items

  • Capability to detect the full range of metal weapon threats even within body cavities
  • Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
  • Guaranteed coverage for all orientations and locations, never in need of calibration
  • Met-Identity technology for Identification of Threat Composition

High discrimination & throughput

  • Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
  • No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
  • Better Discrimination = Shorter Lines and/or Less Staffing
The PMD2 Plus has a very low nuisance alarm rate even at the strictest Security Standards requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.

Immunity to external interferences

Exceptional immunity to environmental interferences makes the Metal Detector easy to use even when electrical noise is encountered.

New WTMDs IP66 Control Unit

  • New integrated design
  • Total mechanical compatibility with IP20 (plastic) and IP65 (stainless steel) control units:
    • Dimensional
    • Installation
    • Wiring
    • Chip card
  • Robust structure through the use of high-performance polymers for the construction of housing
  • Waterproof / Dustproof: IP rating IP66 compliant
  • Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
  • Display made with specifi c polymer to improve the visibility of the LEDs by increasing the defi nition and clarity

Unique alarm signalling

  • High visibility of the control unit and the zone indication independent from the operator position and the installation environment
  • Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
  • 10 Alarm Volume Levels
  • Very High Precision Transit Counter
Accurate signaling is essential for best operation and flow management. The detector provides the user with fully-programmable signaling. Both entry-points can indicate with a high level of accuracy, even simultaneously, the vertical and lateral areas of transit of the threats detected, and can also be configured as ’traffic lights’ to control transits through the detector.

Rapid installation

  • One touch guided automatic installation (OTS)
  • Innovative function assisting the installation through an automatic step-by-step procedure
  • Continuous self diagnostics assures monitored performance reliability


Download Specifications

Key Features

  • Elliptic column shape or traditional panel versions available
  • Wide range of threat detection from guns to ½ cutter blade
  • Excellent discrimination of personal metal effects
  • 60 zones with left, center and right indication
  • Met-Identity technology identifies the metal type in real time
  • High precision bidirectional counter with automatic rescreening compensation
  • Chip Card capability for fast, simple, and secure programming
  • Random alarm capability programmable from 0% to 100%
  • Exceptional Immunity to external interferences
  • One touch automatic self installation (OTS)
  • Powered by safe low voltage DC
  • Standard Interfaces: RS-232, BT wireless communication, Infrared
  • Other available interfaces: Ethernet, USB
  • Continuous self diagnostic system
  • Proven reliability
  • No periodic re-calibration and preventive maintenance required
  • No scheduled maintenance
  • Fully digital design
Walk-Through Gate Structure
  • State-of-the-art, robust and washable panels or compact elliptical columns
  • Protected against aging, weather and wear
Central Control Unit
  • Ergonomic and robust design
  • High visibility alphanumeric display and programming keyboard
  • Made of advanced plastics or stainless steel and anti-vandalism construction (option)
  • Access to the front panel protected by hardware key and two levels of passwords
Alarm Signalling
  • Visual Signals
    • Multi-zone display bar for “height on person” localization
    • 4 light bars with selectable entry/exit and pacing indication
    • Green and red metering signals proportional to the mass of the detected target
  • Audio Signals
    • 10 selectable continuous and pulsed tone plus 34 special tones
    • 10 selectable sound intensities ranging from 0 to 90 dbA at 1m
Type of Signalling
  • Visual
    • Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
  • Visual Zone Indication
    • 60 distinct zones (20 vertical x 3 horizontal)
  • Over 40 built in security programsRemote via RS-232, Infrared Remote Control Unit, BT wireless communicationTM or Ethernet 10/100 base T (option) interface
  • Security Level
    • International Standard (IS) command
    • Chip card
  • Local by Control Unit alphanumeric display and keyboard
  • Programming and chip card access protected by user and super-user passwords
Operational Features
  • Very high discrimination and transit flow rates five or more times greater than other metal detection systems
  • Quick reset time as short as 0.2 seconds for high throughput rate
  • Very high detection speed (up to 50 ft/sec.)
  • Built-in operational functional verification
  • One-touch key reading of inbound, outbound and Security Level Data
Installation Data
  • Automatic synchronisation between two or more metal detectors with distance of down to 5 cm (2”) without the use of external cables
  • Automatic Installation function (OTS)
Certification and Compliance
  • Compliant with the applicable Standards for Enhanced Metal Detectors
  • Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
  • Compliant with all Airport Security Standards worldwide
  • Compliant with applicable International Standards for electrical safety and EMC
  • Harmless to magnetic media (floppy disks, tapes, etc.)
