  • Detektion von Geraten mit magnetisierten Teilen (Mobiltelefone, Funkgerate, Empfangsgerate, Funkschlüssel), die an der Person oder in Körperhöhlen Verborgen sind, mit oder ohne Batterien
  • Genaue Ortung des Targets dank Multizonen-Alarm
  • Diskrete Kontrollmöglichkeit über Bluetooth-Kopfhörer
  • Wasserdichtes Schutzgehäuse für die Installation in Außenbereichen
  • Integrierte Batterie für 26 Stunden Dauerbetrieb
  • Hervorragende Eignung für den Einsatz in verschiedenen Umgebungen
  • Robuste und elegante Konstruktion
  • Keine Einstellung erforderlich
  • Sehr niedriges Gewicht

Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View JP Brochure



The illegal use of cell phones is a growing and dangerous problem in correctional institutions worldwide. These devices are a significant threat to prison security and circumvent the monitoring processes in prisons, while allowing inmates to commit new crimes both inside and outside the facility. The MSD was specifically designed to detect all cell phones and ferrous contraband concealed on the person or in body cavities (including key fob cell phones, smart phones, radio transceivers, etc.) quickly and easily. The one-piece design allows the MSD to be easily transported and operational in 10 seconds.

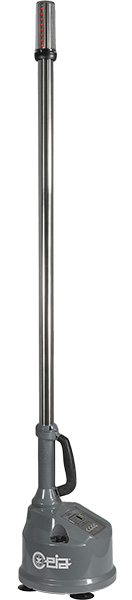

MSD - detail

The one-piece design allows the CEIA MSD to be easily transported and operational in 10 seconds


  • Detection of magnets and ferromagnetic metals
  • Full-height, 360° detection (horizontal & vertical)
  • 5 individual zones for pinpointing locations of contraband on the body
  • Covert operation through use of BT wireless headset (included)
  • Fully weather proof for outdoor use
  • 24 hours typical / 26 hours max. of continuous battery operation with 4.5 hours charge
  • One-piece and lightweight design (total weight only 9,5 kg with batteries included) easily transportable by one person
  • Unmatched detection in all environments without adjustment
  • Extremely durable design using stainless steel and high impact reinforced plastics
  • Anti-tip suction cups for securing to smooth floor surfaces (included)
  • Non-emitting device: safe for use for pace-makers and other medical implants
  • Throughput: 60+ people per minute (based on uninterrupted flow, separately alarms resolution)

Carrying case for personal transport and storage

  • Heavy-duty lightweight carry system
  • Custom fit to the MSD shape
  • Dedicated pocket for accessories
  • Space–saving
  • Included parts:
    • MSD Ferromagnetic Detector unit
    • Test sample
    • External AC/DC battery charger adapter
    • Carrying case

MSD EVO™ Option

Even though the MSD is typically used as a stand-alone single pole, the new MSD Pass-through configuration with EVO option defines now the possibility to operate on a transit width up to 180 cm with constant detection sensitivity from pole to pole. Moreover, this new uniform solution allows the reliable screening of in-mates transiting through a corridor, the surveillance of large transit openings and an extremely accurate investigation of mattresses and other objects that could hide contraband.


Controls and indicators

  • ON/OFF push-button
  • 4-key keypad, for programming and status readout
  • Programming of operational parameters and downloading of data logger by smartphone or portable PC
    • Password protected programming at User and Supervisor level
      • Normal operation, no alarm
      • Detection of ferromagnetic object below alarm threshold
      • Detection of ferromagnetic object above alarm threshold:
        • Full height alarm indication
        • Indication proportional to signal intensity
        • Alarm indication with 5 different localization zones
        • Full height alarm indication, followed by zonal signalling
      • Blinking light: diagnostics alarm
      • Connecting BT wireless device in progress
    • Alarm indication for target over the alarm threshold:
      • Fixed tone
      • Tone proportional to signal intensity
      • Single pulse for pinpointing target
    • Alarm tone can be selected, continuous and intermittent
    • Self-diagnostics signal: intermittent tome
    • Copies all acoustic indications, with the addition of checking BT connection

Power supply

  • AC/DC external power adapter: 100 … 240 V~ , 47…63Hz, 40W
  • Embedded rechargeable battery
    • 16h typical / 17h max. of continuous operation with 3 h battery charge
    • 24h typical / 26h max. of continuous operation with 4.5 h battery charge

Detector environmental conditions

  • Working temperature: -10°C to +65°C
  • Storage temperature: -37°C to +70°C
  • Relative humidity: 0 to 95%, non-condensing


  • MSD: 9,5 kg
  • AC/DC adapter: 0,7 Kg
  • BT wireless communication kit: 0,2 Kg (includes battery charger)
  • Carrying case: 0,6 Kg
  • Installation kit: 0,3 Kg

MSD dimensions

  • Height: 1900 mm; Width: 330 mm

Shipping information

  • Dimensions (WxDxH) 400 mm x 2000 mm x 480 mm
  • Weight 24 Kg

Degree of protection

  • Fully weather proof for outdoor use (IP65)

Available accessories

  • EVO function activation; code 88918

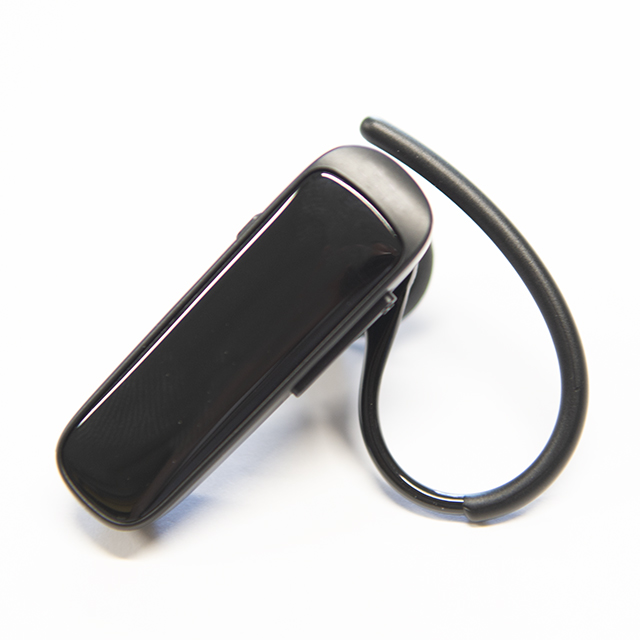

  • BT wireless audio function activation. Includes a headset with AC/DC charger; code 88919

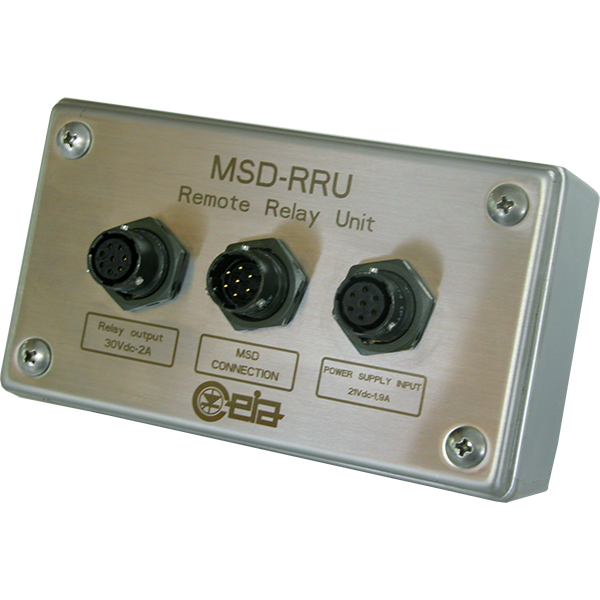

  • MSD-RRU Remote Relay Unit; code MSD-RRU

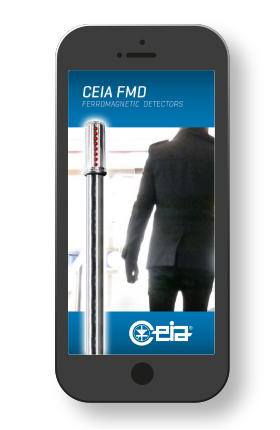

  • App CEIA FMD: the application allows monitoring of the device, adjustment of the settings and downloading of data logger. Available on Google Play Store. REQUIREMENTS: Android 7.0 or later, BT interface available

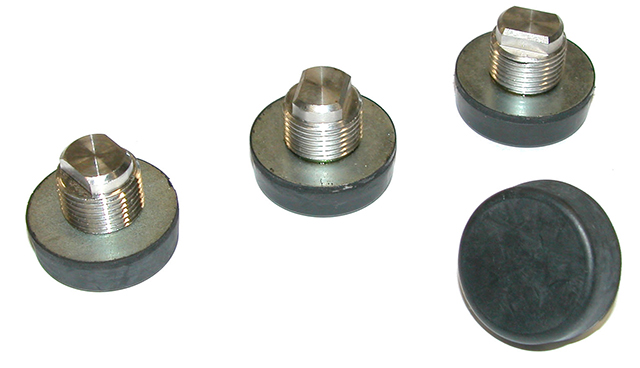

  • Solid rubber feet; code 88917

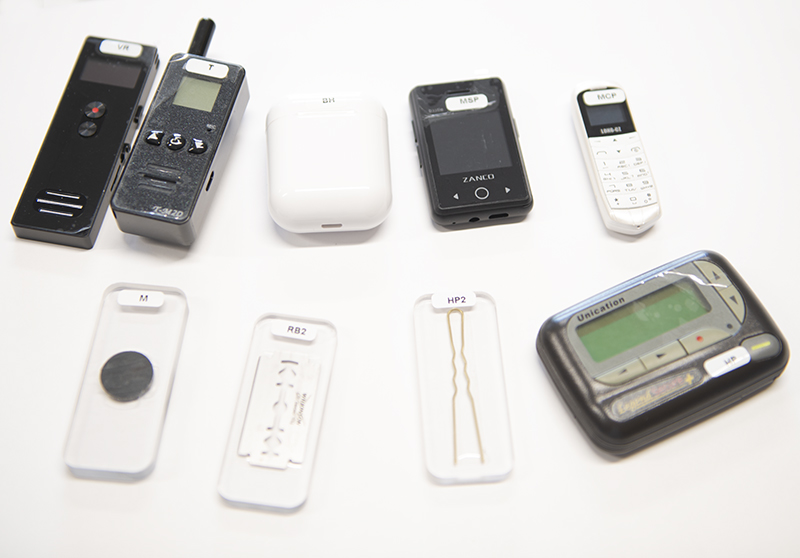

  • MSD Demo Kit - Kit of demonstration objects, consisting of: BT wireless headset • Hair pins • Hospital pager • Magnet • Medical scissors • Micro cell phone • Micro smartphone • Needle • Razor blades • Transceiver • Voice recorder; code 89052

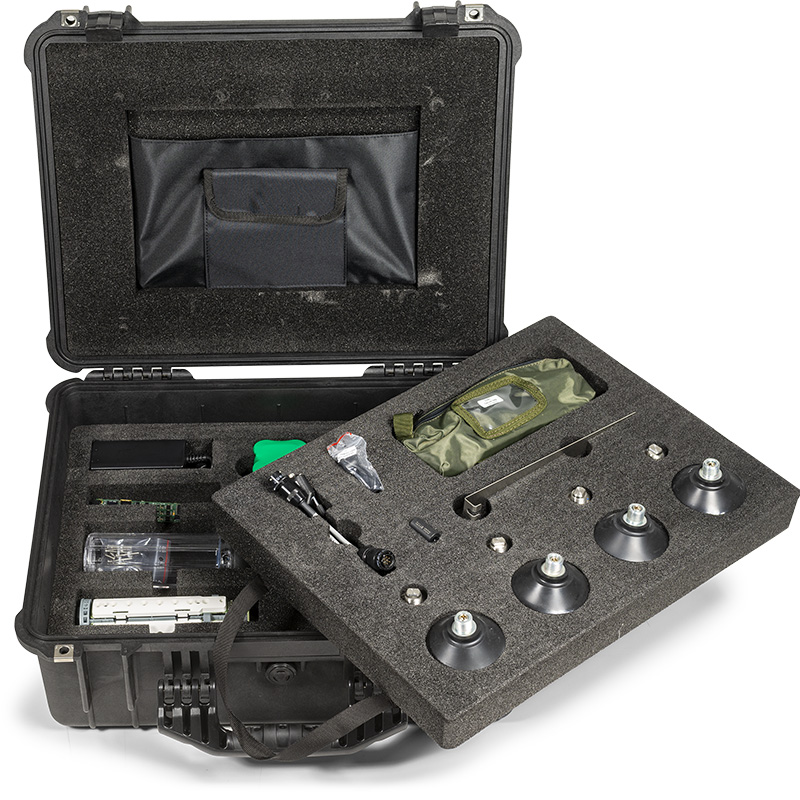

  • MSD Maintenance Kit: Set of main spare parts and necessary tools; code 89051

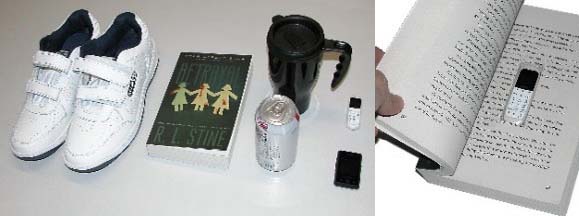

  • MSD Training Kit: Set of innocuous items tampered creating a concealed space for hiding small size threat objects; code 89054
  • MSD EVO™ Connecting
    • Cable Length 2.7 m; code 95376
    • Length custom, up to 25 m code 95494
  • Standing mat: self-adhesive mat with indication of position and rotation; code 94590

Certification and compliance

  • Safe for use for pace-makers and other medical implants
  • Compliant and certified to the applicable electromagnetic Standards on Human Exposure and pacemaker safety
  • Compliant with and certified to the applicable International Standards for electrical safety and EMC
