Detector sumamente portátil de teléfonos celulares, armas ferrosas y contrabando







Presentación
Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure







Visítenos
Intersec
Dubai - United Arab Emirates
Jan 19 - 21, 2020
Expositor: CEIA S.p.A.

NAIS National Airport Infrastructure Show & Civil Aviation
Moscow - Russian Federation
Feb 5 - 6, 2020
Expositor: NeoScan LLC

Exposiciones y Eventos >>

  • Detección de todo tipo de teléfonos celulares y contrabando ferroso escondido en la persona o en las cavidades del cuerpo (incluidos los telefonos celulares con control remoto tipo llavero, telefonos inteligentes, transmisores-receptores de radio, etc.)
  • Sensibilidad constante en toda el área de deteccion durante las operaciones de acceso
  • La indicación del objetivo de zonas múltiples identifica la localizacion de contrabando en el cuerpo
  • Funcionamiento encubierto mediante el uso de auriculares BT wireless communication
  • Completamente resistente a la intemperie para uso en exteriores (certificado IP65)
  • Funcionamiento continuo de 26 horas
  • Detección inigualable en cualquier ambiente sin ajuste
  • Diseño extremadamente durable
  • No requiere montaje: configuración en menos de 10 segundos

Folleto
Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View JP Brochure



Manuales

MSD

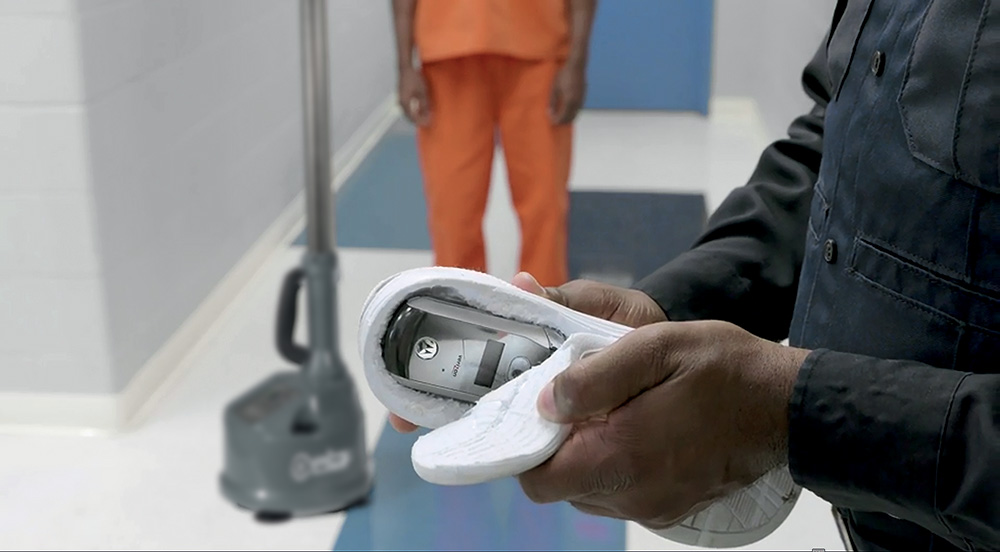

El uso ilegal de los teléfonos celulares es un problema peligroso y en aumento en las instituciones penitenciarias de todo el mundo. Estos dispositivos son una amenaza significativa para la seguridad de la prisión puesto que eluden los procesos de monitorización en las cárceles, permitiendo que la población carcelaria cometa delitos tanto dentro como fuera de los centros. El MSD ha sido diseñado específicamente para detectar de forma fácil y rápida teléfonos celulares y contrabando ferroso escondido en la persona o en las cavidades del cuerpo (incluidos los teléfonos celulares con control remoto tipo llavero, teléfonos inteligentes, transmisores-receptores de radio, etc.). El diseño de una sola pieza permite que el MSD se transporte fácilmente y sea operativo en 10 segundos.

Descripción

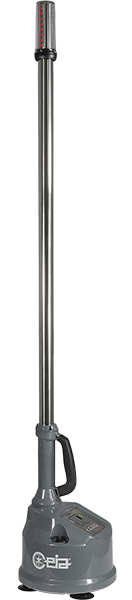

MSD - detail

El diseño de una sola pieza permite que el MSD se transporte fácilmente y sea operativo en 10 segundos.

Benefits

  • Detection of magnets and ferromagnetic metals
  • Full-height, 360° detection (horizontal & vertical)
  • 5 individual zones for pinpointing locations of contraband on the body
  • Covert operation through use of BT wireless headset (included)
  • Fully weather proof for outdoor use
  • 24 hours typical / 26 hours max. of continuous battery operation with 4.5 hours charge
  • One-piece and lightweight design (total weight only 9,5 kg with batteries included) easily transportable by one person
  • Unmatched detection in all environments without adjustment
  • Extremely durable design using stainless steel and high impact reinforced plastics
  • Anti-tip suction cups for securing to smooth floor surfaces (included)
  • Non-emitting device: safe for use for pace-makers and other medical implants
  • Throughput: 60+ people per minute (based on uninterrupted flow, separately alarms resolution)

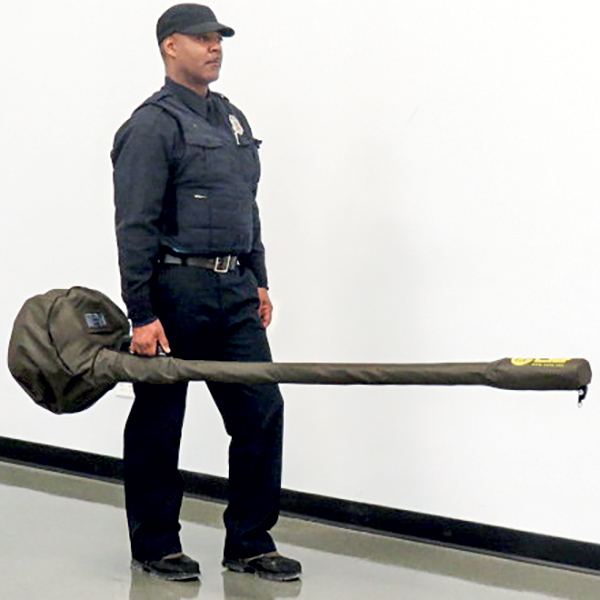

Carrying case for personal transport and storage

  • Heavy-duty lightweight carry system
  • Custom fit to the MSD shape
  • Dedicated pocket for accessories
  • Space–saving
  • Included parts:
    • MSD Ferromagnetic Detector unit
    • Test sample
    • External AC/DC battery charger adapter
    • Carrying case


MSD EVO™ Option

Even though the MSD is typically used as a stand-alone single pole, the new MSD Pass-through configuration with EVO option defines now the possibility to operate on a transit width up to 180 cm with constant detection sensitivity from pole to pole. Moreover, this new uniform solution allows the reliable screening of in-mates transiting through a corridor, the surveillance of large transit openings and an extremely accurate investigation of mattresses and other objects that could hide contraband.

Especificaciones

Controls and indicators

  • ON/OFF push-button
  • 4-key keypad, for programming and status readout
  • Programming of operational parameters and downloading of data logger by smartphone or portable PC
  • SECURITY
    • Password protected programming at User and Supervisor level
  • MULTI-COLOR STATUS AND ALARM WARNING LIGHT
    • GREEN LIGHT
      • Normal operation, no alarm
    • YELLOW LIGHT
      • Detection of ferromagnetic object below alarm threshold
    • RED LIGHT
      • Detection of ferromagnetic object above alarm threshold:
        • Full height alarm indication
        • Indication proportional to signal intensity
        • Alarm indication with 5 different localization zones
        • Full height alarm indication, followed by zonal signalling
      • Blinking light: diagnostics alarm
    • BLUE LIGHT
      • Connecting BT wireless device in progress
  • ALARM SOUNDER
    • Alarm indication for target over the alarm threshold:
      • Fixed tone
      • Tone proportional to signal intensity
      • Single pulse for pinpointing target
    • Alarm tone can be selected, continuous and intermittent
    • Self-diagnostics signal: intermittent tome
  • BT HEADSET (ACCESSORY)
    • Copies all acoustic indications, with the addition of checking BT connection

Power supply

  • AC/DC external power adapter: 100 … 240 V~ , 47…63Hz, 40W
  • Embedded rechargeable battery
    • 16h typical / 17h max. of continuous operation with 3 h battery charge
    • 24h typical / 26h max. of continuous operation with 4.5 h battery charge

Detector environmental conditions

  • Working temperature: -10°C to +65°C
  • Storage temperature: -37°C to +70°C
  • Relative humidity: 0 to 95%, non-condensing

Weight

  • MSD: 9,5 kg
  • AC/DC adapter: 0,7 Kg
  • BT wireless communication kit: 0,2 Kg (includes battery charger)
  • Carrying case: 0,6 Kg
  • Installation kit: 0,3 Kg

MSD dimensions

  • Height: 1900 mm; Width: 330 mm

Shipping information

  • Dimensions (WxDxH) 400 mm x 2000 mm x 480 mm
  • Weight 24 Kg

Degree of protection

  • Fully weather proof for outdoor use (IP65)

Available accessories

  • EVO function activation; code 88918

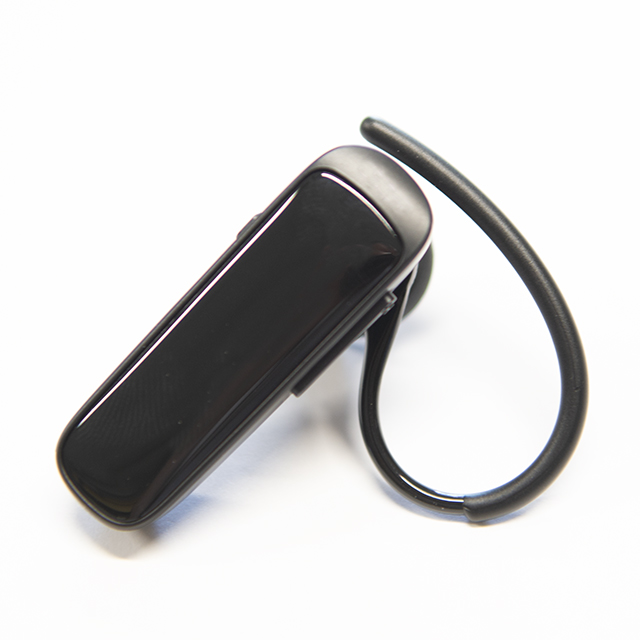

  • BT wireless audio function activation. Includes a headset with AC/DC charger; code 88919

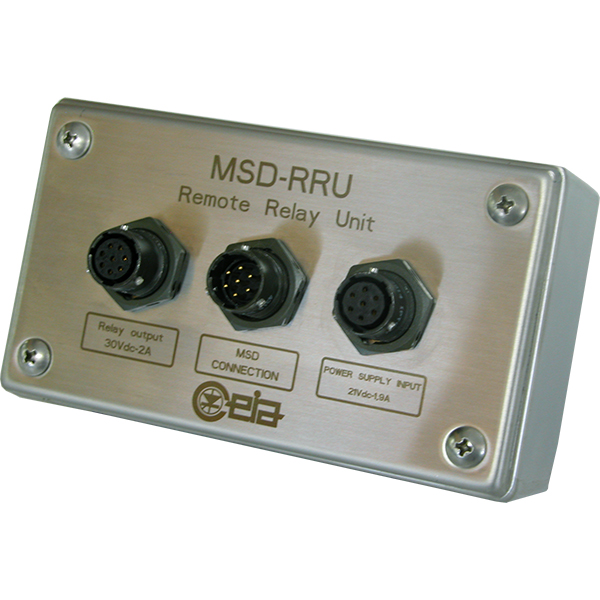

  • MSD-RRU Remote Relay Unit; code MSD-RRU

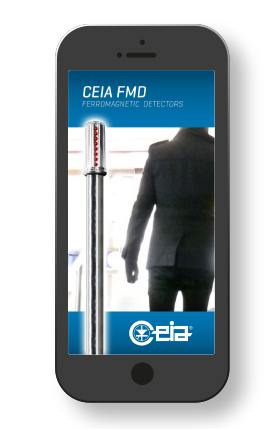

  • App CEIA FMD: the application allows monitoring of the device, adjustment of the settings and downloading of data logger. Available on Google Play Store. REQUIREMENTS: Android 7.0 or later, BT interface available

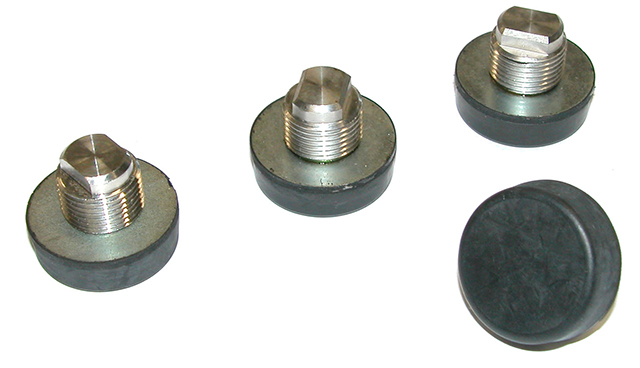

  • Solid rubber feet; code 88917

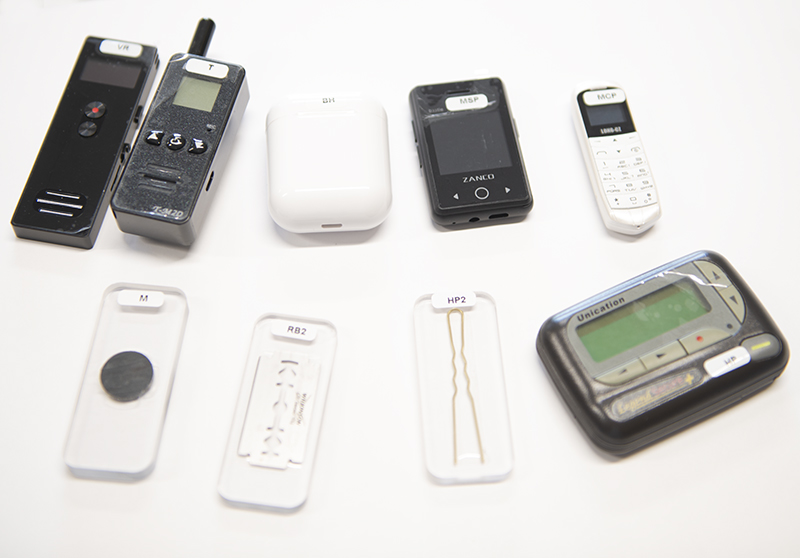

  • MSD Demo Kit - Kit of demonstration objects, consisting of: BT wireless headset • Hair pins • Hospital pager • Magnet • Medical scissors • Micro cell phone • Micro smartphone • Needle • Razor blades • Transceiver • Voice recorder; code 89052

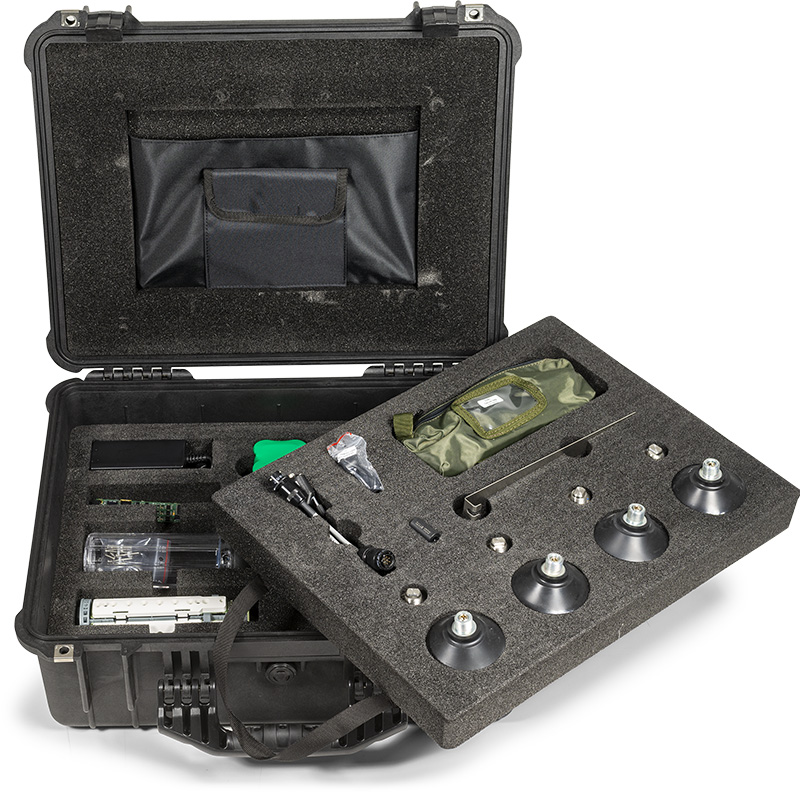

  • MSD Maintenance Kit: Set of main spare parts and necessary tools; code 89051

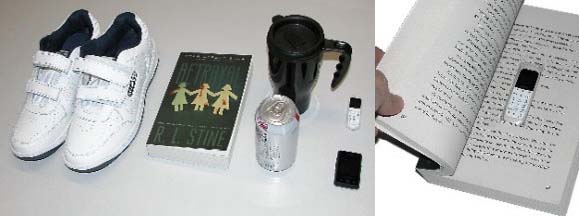

  • MSD Training Kit: Set of innocuous items tampered creating a concealed space for hiding small size threat objects; code 89054
  • MSD EVO™ Connecting
    • Cable Length 2.7 m; code 95376
    • Length custom, up to 25 m code 95494
  • Standing mat: self-adhesive mat with indication of position and rotation; code 94590

Certification and compliance

  • Safe for use for pace-makers and other medical implants
  • Compliant and certified to the applicable electromagnetic Standards on Human Exposure and pacemaker safety
  • Compliant with and certified to the applicable International Standards for electrical safety and EMC
