Metal Detector per la SICUREZZA


MSD

Rivelatore Ferromagnetico Portatile ad alte prestazioni







Presentazione Aziendale
Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View d Brochure







Visitateci
Sicurezza
Milan - Italy
Nov 13 - 15, 2019
Espositore: CEIA S.p.A.

Defense & Security
Bangkok - Thailand
Nov 18 - 21, 2019
Espositore: Royal Defence Co., Ltd. - Booth K09

Milipol
Paris - France
Nov 19 - 22, 2019
Espositore: CEIA S.p.A. - Hall 5L Booth 083

Tutti gli eventi >>

  • Rivelazione di dispositivi contenenti parti magnetizzate (cellulari, radio ricetrasmittenti, ricevitori, chiavi telecomando) nascosti sulla persona o all'interno di cavità corporee con o senza batterie
  • Accurata localizzazione del target mediante segnalazione di allarme multizona
  • Superiore capacità di impiego in ambienti diversi
  • Protezione a tenuta stagna per installazioni all’aperto (IP65)
  • Robusta ed elegante costruzione
  • Rivelazione sull’intera altezza del dispositivo
  • Rivelazione omnidirezionale
  • Batteria integrata per 26 ore di funzionamento continuo
  • Controllo discreto tramite auricolare BT wireless communication
  • Nessuna regolazione richiesta

Depliant
Click To View GB Brochure
Click To View I Brochure
Click To View E Brochure
Click To View JP Brochure



Manuali

MSD

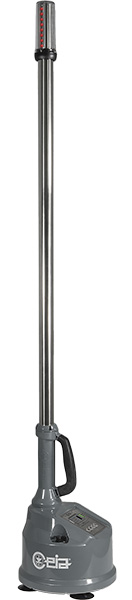

CEIA MSD è un rivelatore passivo di oggetti metallici magnetici e magnetizzati che combina la struttura monoblocco e il design compatto e ultraleggero con avanzate caratteristiche di rivelazione

Descrizione

MSD - detail

Elevata Portabilità

Benefits

  • Detection of magnets and ferromagnetic metals
  • Full-height, 360° detection (horizontal & vertical)
  • 5 individual zones for pinpointing locations of contraband on the body
  • Covert operation through use of BT wireless headset (included)
  • Fully weather proof for outdoor use
  • 24 hours typical / 26 hours max. of continuous battery operation with 4.5 hours charge
  • One-piece and lightweight design (total weight only 9,5 kg with batteries included) easily transportable by one person
  • Unmatched detection in all environments without adjustment
  • Extremely durable design using stainless steel and high impact reinforced plastics
  • Anti-tip suction cups for securing to smooth floor surfaces (included)
  • Non-emitting device: safe for use for pace-makers and other medical implants
  • Throughput: 60+ people per minute (based on uninterrupted flow, separately alarms resolution)


Carrying case for personal transport and storage

  • Heavy-duty lightweight carry system
  • Custom fit to the MSD shape
  • Dedicated pocket for accessories
  • Space–saving
  • Included parts:
    • MSD Ferromagnetic Detector unit
    • Test sample
    • External AC/DC battery charger adapter
    • Carrying case


MSD EVO™ Option

Even though the MSD is typically used as a stand-alone single pole, the new MSD Pass-through configuration with EVO option defines now the possibility to operate on a transit width up to 180 cm with constant detection sensitivity from pole to pole. Moreover, this new uniform solution allows the reliable screening of in-mates transiting through a corridor, the surveillance of large transit openings and an extremely accurate investigation of mattresses and other objects that could hide contraband.

Specifiche

Controls and indicators

  • ON/OFF push-button
  • 4-key keypad, for programming and status readout
  • Programming of operational parameters and downloading of data logger by smartphone or portable PC
  • SECURITY
    • Password protected programming at User and Supervisor level
  • MULTI-COLOR STATUS AND ALARM WARNING LIGHT
    • GREEN LIGHT
      • Normal operation, no alarm
    • YELLOW LIGHT
      • Detection of ferromagnetic object below alarm threshold
    • RED LIGHT
      • Detection of ferromagnetic object above alarm threshold:
        • Full height alarm indication
        • Indication proportional to signal intensity
        • Alarm indication with 5 different localization zones
        • Full height alarm indication, followed by zonal signalling
      • Blinking light: diagnostics alarm
    • BLUE LIGHT
      • Connecting BT wireless device in progress
  • ALARM SOUNDER
    • Alarm indication for target over the alarm threshold:
      • Fixed tone
      • Tone proportional to signal intensity
      • Single pulse for pinpointing target
    • Alarm tone can be selected, continuous and intermittent
    • Self-diagnostics signal: intermittent tome

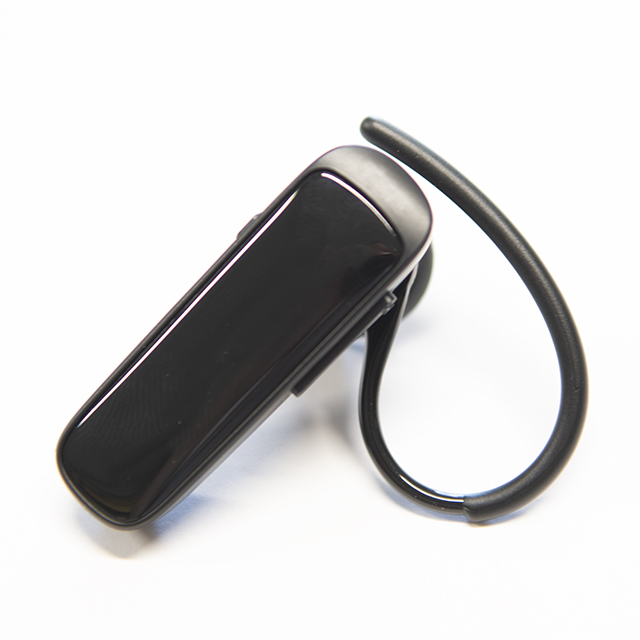

  • BT HEADSET (ACCESSORY)
    • Copies all acoustic indications, with the addition of checking BT connection

Power supply

  • AC/DC external power adapter: 100 … 240 V~ , 47…63Hz, 40W
  • Embedded rechargeable battery
    • 16h typical / 17h max. of continuous operation with 3 h battery charge
    • 24h typical / 26h max. of continuous operation with 4.5 h battery charge

Detector environmental conditions

  • Working temperature: 14 to 149°F
  • Storage temperature: -35 to 158°F
  • Relative humidity: 0 to 95%, non-condensing

Weight

  • MSD: 21 lbs
  • AC/DC adapter: 1.6 lbs
  • BT wireless communication kit: 0.5 lbs (includes battery charger)
  • Carrying case: 1.5 lbs
  • Installation kit: 0.6 lbs

MSD dimensions

  • Height: 75”; Width: 13”

Shipping information

  • Dimensions (WxDxH) 16” x 79” x 19”
  • Weight 53 lbs

Degree of protection

  • Fully weather proof for outdoor use (IP65)

Available accessories

  • EVO function activation; code 88918
  • BT wireless audio function activation. Includes a headset with AC/DC charger; code 88919

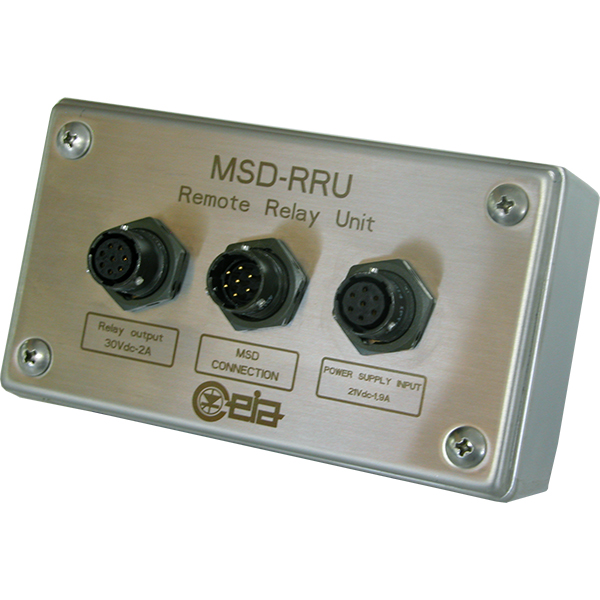

  • MSD-RRU Remote Relay Unit; code MSD-RRU

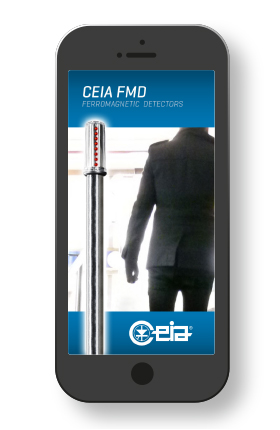

  • App CEIA FMD: the application allows monitoring of the device, adjustment of the settings and downloading of data logger. Available on Google Play Store. REQUIREMENTS: Android 7.0 or later, BT interface available

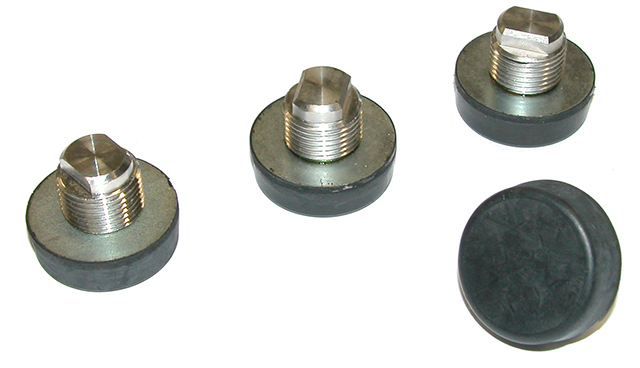

  • Solid rubber feet; code 88917

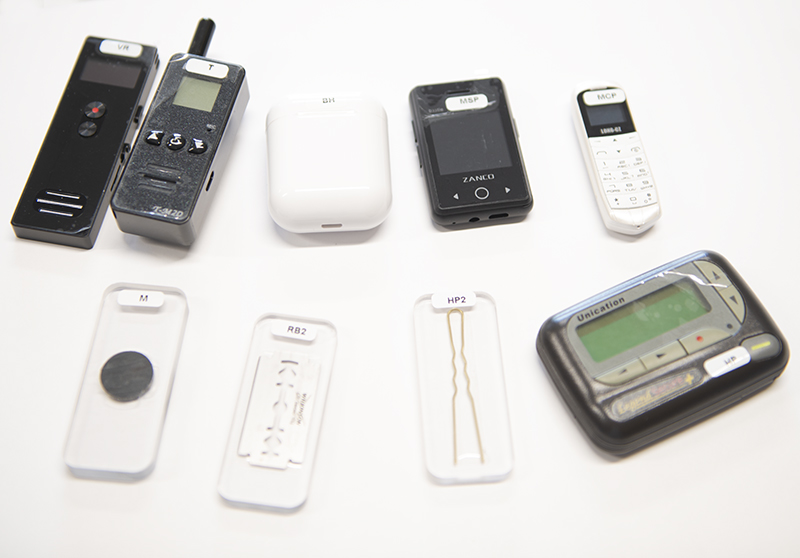

  • MSD Demo Kit - Kit of demonstration objects, consisting of: BT wireless headset • Hair pins • Hospital pager • Magnet • Medical scissors • Micro cell phone • Micro smartphone • Needle • Razor blades • Transceiver • Voice recorder; code 89052

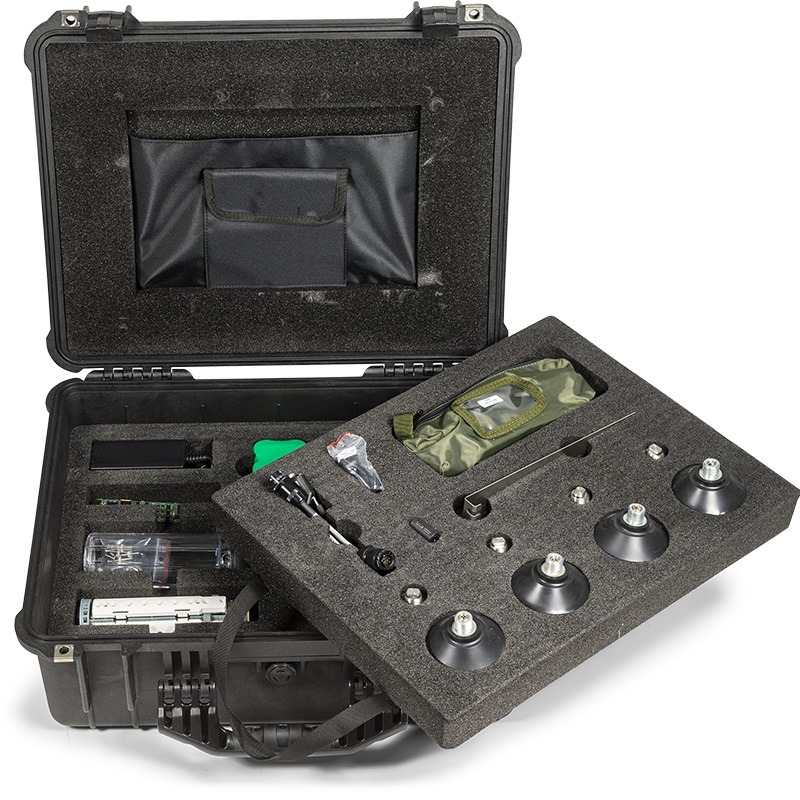

  • MSD Maintenance Kit: Set of main spare parts and necessary tools; code 89051

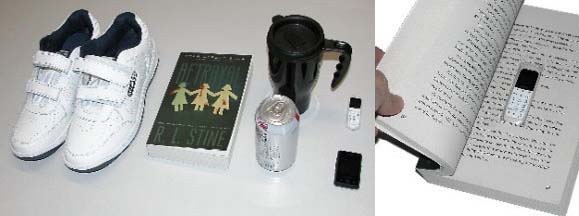

  • MSD Training Kit: Set of innocuous items tampered creating a concealed space for hiding small size threat objects; code 89054
  • MSD EVOTM Connecting
    • Cable Length 2.7 m; code 95376
    • Length custom, up to 25 m code 95494
  • Standing mat: self-adhesive mat with indication of position and rotation; code 94590

Certification and compliance

  • Non-emitting device: safe for use for pace-makers and other medical implants
  • Compliant and certified to the applicable electromagnetic Standards on Human Exposure and pacemaker safety
  • Compliant with and certified to the applicable International Standards for electrical safety and EMC
