Wide search area Hand-Held Metal Detector
- Wide search area for faster and accurate screening operations
- High immunity to floor rebars allows lower-body screening without Sensitivity Reduction
- Uniform detection of magnetic and non-magnetic targets
- Full digital design: consistent performance and calibration-free operations
- Programmable sensitivity
- Detection of radioactive substances and materials (option)
- Elegant, robust and ergonomic
- Indoor and outdoor operations
The PD240 is a Hand Held Metal Detector that combines high reliability and ergonomics with advanced detection and operator signaling features. Effective sensitivity to all metals, full compliance with the latest Security Standards and high immunity to external metal masses are among the main peculiarities of this new device.
The PD240 incorporates innovative technical solutions which make it possible to operate much closer to floors with steel reinforcement bars than was previously possible with conventional hand-held detectors. All this without any reduction in sensitivity.
Advantages & benefits
- Programmable Sensitivity
- Long Detection Range
- Extended Continuous Operation Time
- Automatic Low Power Mode during Screening Pauses
- Embedded Long Life Rechargeable Batteries are renewable energy and eliminate the Operation Cost of Alkaline Batteries
- Embedded Fast and Reliable Battery Charger: no need for removal of batteries

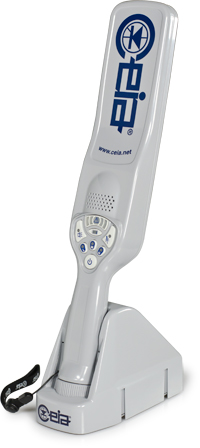

- Dedicated Docking Station acts as Table Stand and Mains connection for Battery Charge
- Operator Functions can be standard or customized by the user through PC GUI and USB connection
Elegant, robust and ergonomicThe PD240 features a special ergonomic design consisting of an offset hand grip which ensures that the operator’s hand does not interfere with the sensitive detection area. Special care has gone into the mechanical design of the detector.
Absence of sharp edges or corners allows the detector to be passed smoothly over the inspected area without getting caught in buttons, buckles, folds or other parts of clothing.
Advanced control panelThe control panel with buttons and warning lights is made from high-thickness silicon guaranteeing a high degree of protection to make the PD240 suitable for indoor and outdoor use.
NIJ Standard 0602.02 compliantThe technical features of the detector comply with the NIJ standard 0602.02 and the new NIJ draft standard 0602.03. The PD240 has uniform sensitivity to magnetic and non-magnetic targets including those made of stainless steel.
At the same time the detector offers excellent body-effect compensation and has high immunity to external disturbance from electromagnetic and mechanical sources.
Extended continuous operation timeThe PD240 is powered by two AA-size NiMH batteries with a battery life of over 100 hours. A Low Power Mode is automatically activated during periods of inactivity, extending the battery life up to 200 hours. An internal circuit optimizes battery recharging which takes less than five hours.
Full digital designThe PD240 is fully digital. Electronic functions include an inspection field transmitter-receiver based on Digital Signal Processing (DSP) technology, a digital operator interface and external communications over the incorporated USB port. This design combined with a special printed antenna ensures top reliability and very high repeatability.
Sophisticated communication capabilitiesThe digital design of the new metal detector also enables the maximum flexibility in selecting how detection alarms are signalled. Users can keep the factory settings or connect the detector over its USB to a PC and then personalize the settings with a dedicated graphic interface.
- 2x AA size NiMH, rechargeable batteries
|Fully customizable control panel|
- Optical, acoustic and vibratory alarm modes
- 3-level sensitivity selection buttons
|Detection and operational functions|

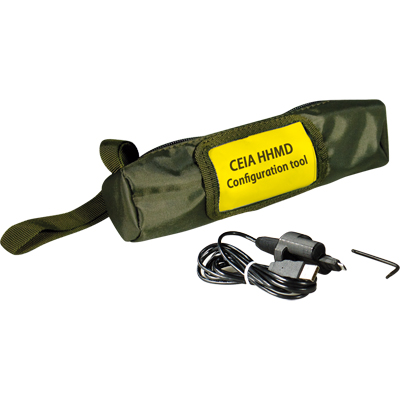

- Customizable via HHMD Configuration tool
- Battery life: 100 + hours (AA NiMH batteries 2500 mAh); up to 200 hours with automatic sleep mode
- Low battery indicator
- Built-in fast battery charger in combination with the HHDS Docking station
- 0 to 98% (without condensation)
- 430 mm x 80 mm x 40 mm
- HHDS Docking station: 175 mm x 115 mm x 85 mm
- Carry Bag: 430 mm x 340 mm x 105 mm
- With battery: 470 g
- HHDS Docking station (with power adapter): 755 g
- Carry Bag: 1,3 kg
- Light grey RAL 7040
- Carry Bag: Green RAL 7013
- In grey shock-resistant technical polymers
- Conforms to the NIJ 0602.02 and the new NIJ 0602.03 Standards for metal detection
- Conforms to the international standards currently applicable for safety, EMC and to the applicable CE regulations
|NATO stock number|
Part Code: # 64614
Part Code: # 64081 (PD240C # 64082)

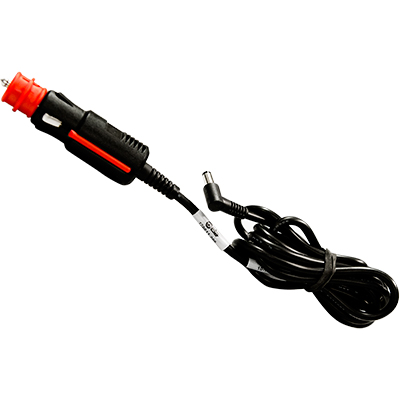

Cigarette lighter cable for battery charger
Part Code: # 64436

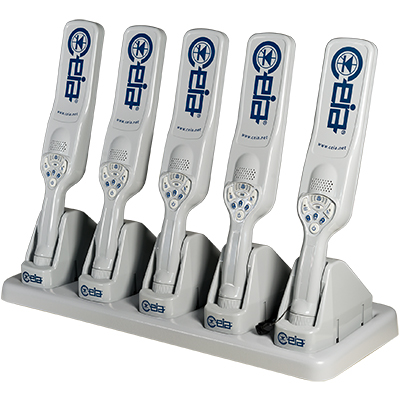

Five Hand Held Metal Detector docking station
Part Code: # HHDS-5

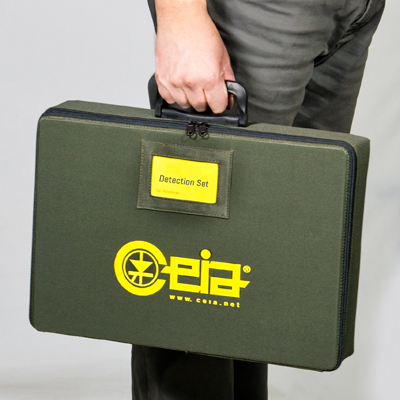

Test samples kit for threat detection accuracy
Part Code: # 63537
