  • Accurate Detection of all Metallic Threat Items
  • High Discrimination and Throughput
  • Exceptional Immunity to external interferences
  • Compliant with and Certified to the Strictest Security Standards for weapons detection
  • Unmatched Reliability
  • Rapid Installation
  • Panel Design

Brochures
Click To View GB Brochure
Click To View I Brochure
Click To View JP Brochure
Click To View RU Brochure



Manuals

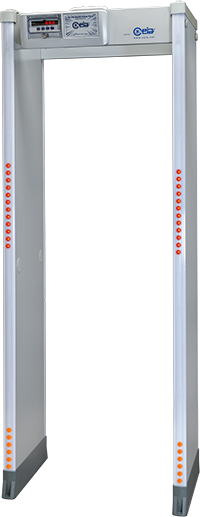

HI-PE Plus

The HI-PE Plus Multi-Zone Metal Detector provides accurate detection of all metals, high level of discrimination of non-threat items, full compliance with the latest Security Standards and exceptional immunity to external interferences. The HI-PE Plus has a very low nuisance alarm rate even at the strictest Security Levels requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.

Description

HI-PE Plus - detail

Chip Card System: The system allows the Head of Security to set the Security Level quickly, reliably and without having to program the device in any way.

Features

  • Capability to detect the full range of metal weapon threats even within body cavities. The most advanced Security Standards require detection of all ferrous and non-ferrous metal weapons and of those constructed in special non-magnetic alloys. The HI-PE Plus detects firearms and knives of this type, even when they are hidden within body cavities, and accurately indicate the position of the threat, its intensity and its prevalent composition. Inspection personnel thereby acquire thorough knowledge of the metal item and can act, according to procedures, with maximum effectiveness and security.
  • 60 localization zones: 20 vertical; 3 lateral
  • Met-Identity technology for Identification of Threat Composition


Benefits

Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow.

The transit volume magnetic scanning system, invented by CEIA and applied since production of the first zonal Metal Detectors in 1986, allows state-of-the-art detection and discrimination results.

The HI-PE Plus has a very low nuisance alarm rate even at the strictest Security Levels requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.

Unique alarm signalling

  • 4 Multi-Zone Display Bars, each programmable as entry Stop/Go and/or local alarm indication
  • High visibility of the control unit and the zone indication independent from the operator position and the installation environment. Accurate signaling is essential for best operation and flow management. The HI-PE Plus provides the user with fully-programmable signaling. Both entry-points can indicate with a high level of accuracy, even simultaneously, the vertical and lateral areas of transit of the threats detected, and can also be configured as ’traffic lights’ to control transits through the detector.
  • Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
  • 10 Alarm Volume Levels. A complete acoustic alarm system allows personalization of the alarm tones and volume, with a wide choice of continuous, pulsed and special tones at different levels of intensity. The wide volume control dynamic allows operation even in very noisy environments.


Most powerful and versatile security features

Setting the Security Levels could not be easier and more versatile than in the HI-PE Plus. Users can choose directly from the known International Standards or request implementation of a Standard personalized to their own requirements. Users can also create their own program and save it in internal memory for later use.
  • Up to 50 built-in Security Programs: Up to 30 International Standards; Up to 20 Customizable Levels
  • Chip Card for automatic selection of Security Levels and parameter changes.
  • Any security standard can be enhanced with selectable random alarm probability


Rapid installation

  • One touch guided automatic installation (OTS) Innovative function assisting the installation through an automatic step-by-step procedure
  • Continuous self diagnostics assures monitored performance reliability

Specifications

Key features

  • Wide range of threat detection from guns to ½ cutter blade
  • Excellent discrimination of personal metal effects
  • 60 localization zones (20 vertical x 3 lateral) with left, center and right indication
  • Met-Identity technology identifies and signals the metal type in real time
  • High precision bidirectional counter with automatic rescreening compensation
  • Random alarm capability programmable from 0% to 100%
  • Exceptional Immunity to external interferences
  • Standard Interfaces: BT wireless communication, Infrared
  • Other available interfaces: Ethernet, USB


Quality

  • Continuous self diagnostic system
  • Proven reliability
  • No periodic re-calibration and preventive maintenance required
  • No scheduled maintenance
  • Fully digital design


Gate structure

  • State-of-the-art, robust and washable panels
  • Protected against aging, weather and wear


Central control unit

  • Ergonomic and robust design
  • High visibility alphanumeric display and programming keyboard
  • Made of advanced plastics or stainless steel and anti-vandalism construction (option)
  • Access to the front panel protected by hardware key and 3 levels of passwords


Alarm signaling

  • Visual signals
    • Multi-zone display bar for “height on person” localization
    • 4 light bars with selectable entry/exit and pacing indication
    • Green and red metering signals proportional to the mass of the detected target
  • Audio signals
    • 10 selectable continuous and pulsed tone plus 34 special tones
    • 10 selectable sound intensities ranging from 0 to 90 dbA at 1m


Type of signaling

  • Visual: Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
  • Visual zone indication: 60 distinct zones (20 vertical x 3 lateral) entry and exit side


Programming

  • Up to 50 built-in Security Programs
  • Remote via Infrared Remote Control Unit, BT wireless communicationTM or Ethernet 10/100 base T (option) interface
  • Security level
    • International Standard (IS) command
    • Chip card
  • Local by Control Unit alphanumeric display and keyboard
  • Programming and chip card access protected by user and super-user passwords


Operational features

  • High discrimination and transit flow rates five or more times greater than other metal detection systems
  • Quick reset time as short as 0.2 seconds for high throughput rate
  • Very high detection speed (up to 15 m/sec.)
  • Built-in operational functional verification
  • One-touch key reading of inbound, outbound and Security Level Data


Installation data

  • Automatic synchronisation between two or more metal detectors with distance of down to 5 cm without the use of external cables
  • Automatic Installation function (OTS)


Environmental data

  • Power supply: 100…277V~ ±10%, 47…63Hz, 40 VA typical consumption
  • Operating temperature: -20°C to +65°C (-37°C to +70°C upon request)
  • Storage temperature: -37°C to +70°C
  • Relative humidity: 0 to 95% (without condensation)


Certification and compliance

  • Complies with the applicable Standards for Law Enforcement and Correctional Facilities
  • Compliant with and certified to the applicable Standards for Enhanced Metal Detectors (EMD)
  • Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
  • Compliant with applicable International Standards for electrical safety and EMC
  • Harmless to magnetic media (CD, tapes, etc.)


Comprehensive support

  • CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer location
