CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer site
High sensitivity
- Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
- Built-in programs to screen visitors and staff for weapons and contraband
- Met-Identity technology for Identification of Threat Composition
- Accurate pinpointing of individual and multiple metal targets
High throughput
- Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
- No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
- Low nuisance alarm rate even at the strictest Security Levels
- High transit flow rates and the minimum need for intervention by inspection personnel
New certified IP66 control unit
- New integrated design
- Total compatibility with previous IP20 (plastic) and IP65 (stainless steel) control units
- Robust structure through the use of high-performance polymers for the construction of housing
- Waterproof / Dustproof: IP66 compliant (IEC 60529)
- Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
- Display made with specific polymer to improve the visibility of the LEDs by increasing the definition
Unique alarm signalling
- Dual Side 20 x 2 localization zones
- High visibility of the control unit and of the zone indication, independent from the operator position and the installation environment
- Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
- 10 Alarm Volume Levels
- Very High Precision Transit Counter
Most powerful and versatile security features
- Up to 50 built-in Security Programs: Up to 30 International Standards; Up to 20 Customizable Levels
- Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc.) and security level selection.
- Any security standard can be enhanced with selectable random alarm probability
MI2 sensor
SMD600 Plus can be upgraded anytime either with MI2 Sensor for superior smartphone and cellphone detection, or with TDU including advanced IR processing for fully automatic, highly selective and precise detection of maximum facial temperature measurements even in harshest environmental conditions.
The SMD600 Plus with integrated MI2 sensor provides unmatched versatility in its ability to screen people in applications that require simultaneous detection of all metal (magnetic and non-magnetic) fi rearms and cellphone/smartphone devices, including the most miniaturized, lowmetal content versions.
In this configuration both panels of the archway are equipped with dual color light bars (red and yellow colors) and 4-beam photocells modules.
TDU Thermal Detection Unit
The TDU (Thermal Detection Unit) is an upgrade sensing kit for covid screening compliance:- Simultaneous threat and fever detection on all screened persons
- Accurate person measurement using an infrared camera with automatic determination of the highest temperature
Integrated web-server & logger
- Monitor the status of Metal Detector network in real time
- Centralized Setting of the Metal Detectors’ working parameters
- Transits flow monitoring
- Report on number of people screened and alarm rates automatically
- Detailed reporting of the transits data and the Security Device configuration data
- Remotely control and verify the security level
- No server or specific client software required, only a web browser
- Zero configuration network for simple setup
- 2 x Ethernet 100base-TX
Download Specifications

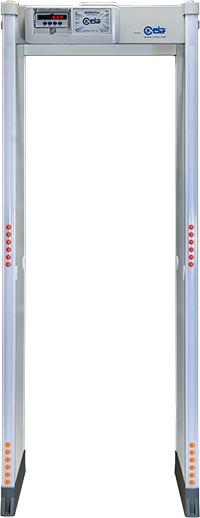

Gate structure
- Useful transit area (W x H): 720 mm x 2050 mm (standard configuration); 820 mm x 2050 mm (wider passage width)
- Antivandalic and antitampering IP66 control unit
- Embedded high precision transit counters (2-beam photocells)
- Antitampering ON/OFF switch
- State-of-the-art, robust and washable panels
- Protected against aging, weather and wear
Operational features
- High discrimination and transit flow rates five or more times greater than other metal detection systems
- Quick reset time as short as 0.2 seconds for high throughput rate
- Very high detection speed (up to 15 m/sec.)
- Built-in operational functional verification (OFV)
- One-touch key reading of inbound, outbound and Security Level Data
Quality
- Continuous self diagnostic system
- Proven reliability
- No periodic re-calibration required
- Fully digital design
Alarm signalling
- Multi-zone display bar for “height on person” localization
- Dual side 20 x 2 localization zones
- Specific shoe alarm color indication
- 4 light bars with selectable entry/exit and pacing indication
- Green and red metering signals proportional to the mass of the detected target
- 10 selectable continuous and pulsed tone plus 34 special tones
- 10 selectable sound intensities ranging from 0 to 90 dbA at 1m
- Random alarm capability with independent counters, alarm tone and alam volume
- Met-Identity technology (separate Ferrous and Non-Ferrous alarm signaling)
Type of signalling
- Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
- 20 x4 distinct zones (20x2 entry side and 20x2 exit side)
Programming
- Up to 50 built-in Security Programs
- Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
- Security level: International Standard (IS) command / Chip card
- Local by Control Unit alphanumeric display and keyboard
- Automatic Channel Search (CS)
- Automatic Floor Gain Adjustment (FGA) and Automatic Technical Functional Verification (TFV)
- Automatic Vibration Compensation (AVS, EVA) and Automatic Environmental Noise Compensation (ENA)
Environmental data
- Powered by safe low voltage DC through external switching power supply adapter
- Power Supply : 100…277V~ ±10%, 47…63Hz, 40 VA typical consumption
- Operating temperature: -20°C to +65°C (-37°C to +70°C upon request)
- Storage temperature: -37°C to +70°C
- Relative humidity: 0 to 95% (without condensation)
Installation data
- Automatic synchronisation between two or more metal detectors with distance of down to 5 cm without the use of external cables
- One Touch Automatic Self Installation (OTS)
Certification and compliance
- Fully compliant with the NIJ-0601.02 Standard requirements
- Complies with the applicable Standards for Law Enforcement and Correctional Facilities
- Compliant with and certified to the strictest Standards for Airports Security
- Compliant with applicable International Standards for electrical safety and EMC
- Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
- Harmless to magnetic media (CD, tapes, etc.)
Kit for upgrading the standard version to outdoor applications according to IEC 60950-22; this kit includes shelters, crossbars, protection covers for power supply and IP68 mains power supply adapter.
Part Code:
- 720 mm passage width (part # 55630)
- 820 mm passage width (part # 55633)
Four photocells fitted into the archway allow counting of transits, alarms and percentage of alarms. The 4-beam version further increases accuracy in counting and determination of transit direction, even in intense transit conditions.
This option includes stainless steel control unit, waterproof mains power supply adapter, protection covers for power supply and antenna connection compartments, equipped with screws requiring tools for removal.
Part Code: 55629
APSiM2Plus
Anti-tamper on/off switch, RS-232, US B, 10/100 baseT Ethernet interface, data logger, real-time clock, integrated web-server, transit statistical data analysis.
Part Code: APSiM2Plus/P
APSM
Anti-tamper on/off switch, RS -232 interface, battery charger with diagnostic alarm.

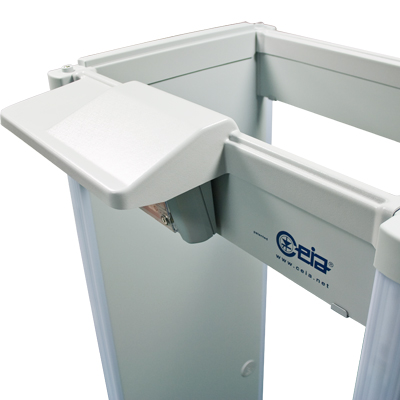

Crossbar battery back-up
Part Code:
- 55681
- Protection cover: 75122
IP65 Configuration
Chip cards

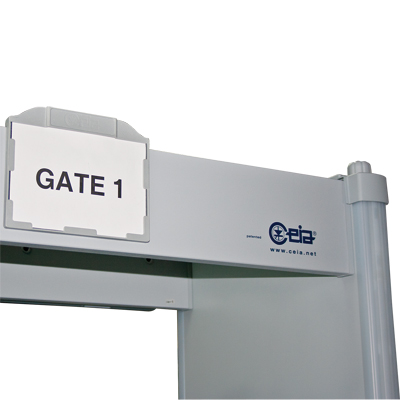

ID-Holder
This accessory is designed to be hung on a crossbar of the archway, either at the entrance or the exit side. It can hold, for instance, a notice or an ID number for waiting people or for the screener.
Part Code: # 54095
IRC-1
Part Code: # 47180
Kit FGA and TFV
This test can be used by technical personnel to check the functionality of the metal detector quickly.
- AISI 420 sphere, ø44.45mm
- FGA test programming chip card ("Technical Level - FLOOR GAIN ADJUSTMENT")
- TFV test programming chip card ("Technical Level - FUNCTIONALITY VERIFICATION")
- Instructions for use
- Carrying case
Kit OFV
This test can be used by the operator to check the functionality of the metal detector quickly.
- AISI 420 sphere, ø44.45mm
- Programming chip card
- Instructions for use
- Carrying case
MBSU-2
Independent, long life power supply in weatherproof stainless steel case, with embedded fast charger
Part Code: # MBSU-2
MD-Scope
Part Code: # MD-SCOPE2
MD-WHK
Part Code: MD-WHK
Metal Detector Divesting Table
This accessory, designed to be positioned next to the walk-through Metal Detector, offers a surface for the temporary deposit of metal personal effects which are not of a dubious nature and thus not required to undergo X-ray analysis (coins, keys etc.).
The special shape of the surface helps to keep the objects deposited there away from the Metal Detector so as to avoid any possible interference.
Dimensions: 610 x 360 x 975 mm.
Part Code: 610mm # 18074
1200mm # 39491
Outdoor version 1200 mm # 67021

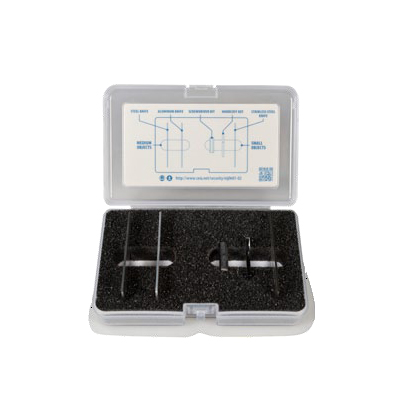

NIJ-0601.02-SKN
Reference Samples for accurate verification of the Security Level. Includes guided procedures and certificate of calibration.
NIJ0601.02SO/MO -SK
Reference Samples for accurate verification of the Security Level. Includes guided procedures and certificate of calibration.
RCU2
Control unit for full remote access, including alarm signaling and programming of CEIA Walk Through Metal Detectors. The connection is performed via BT wireless communication (standard) or via cable connection.
Part Code: # RCU2
RRU
Remote relay unit (RRU) to repeat the detection alarms of the gate through a relay contact. The RRU module can be used for integration of the Metal Detector in interlocked door systems.
Part Code: # RRU

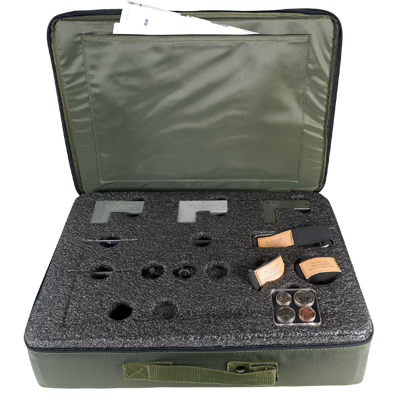

Test samples kit Gun assembled
Reference Samples for accurate verification of the Security Level. Includes guided procedures and certificate of calibration.
Part Code: # EMD-SK-GAL
Test samples kit Gun Disassembled
Reference Samples for accurate verification of the Security Level. Includes guided procedures and certificate of calibration.
Part Code: # EMD-SK-GDML
Upper Connection Module
This extension cable allows the connection of power supply and serial communication to personal computers or CEIA accessories, such as RCU-2.
Part Code: # 46650

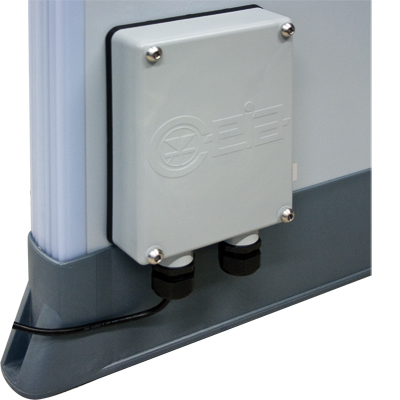

Waterproof Mains Power Supply
100W IP67 power supply for heavy duty applications.
Vandal resistant.
It is provided with flanges for simple installation.
Part Code: # 43564
Wheel Kit - Long Range
The Transport and Stabilizing Device allows the Elliptic and Panel WTMDs to be easily transported with no need for the operator to disassemble the archway. In addition, the it provides archway stability.
The Device is applicable to Elliptic and Panel-Shape Walk-Through Metal Detectors.
The system has been found compliant for safety with applicable parts (a,b) of par. 7.4 Stability of the Standard EN61010-1:2010 (IEC61010-1:2010). However, it is always recommended that the archway is secured to the fl oor by means of anchors.
Part Code: # 70796
