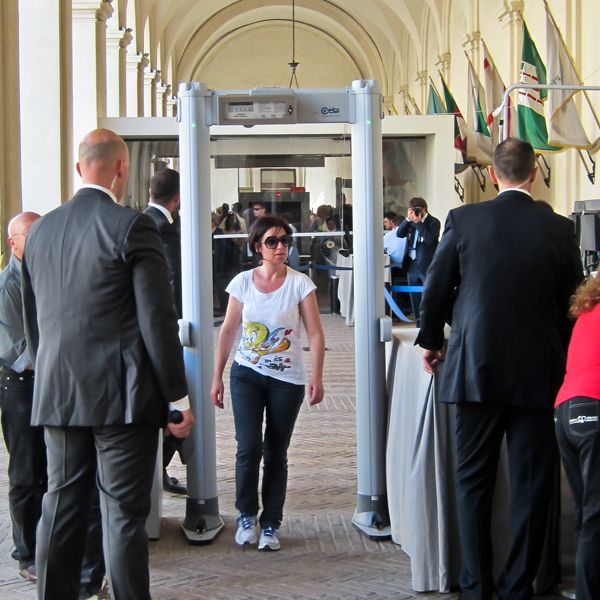

International Architecture Exhibition - Venezia - Italy






Visítenos
Milipol
Paris - France
Oct 19 - 22, 2021
Expositor: CEIA S.p.A.

VenuesNow Conference
Seattle, WA - United States of America
Oct 21 - 22, 2021
Expositor: CEIA USA Ltd.

NCS4 National Sports Safety and Security Conference and Exhibition
Phoenix, AZ - United States of America
Nov 9 - 10, 2021
Expositor: CEIA USA Ltd.

Exposiciones y Eventos >>

  • Superior Detection and Throughput
  • Compliant with and certified to the applicable Standards for Enhanced Metal Detectors
  • New mechanical structure with high protection degree
  • Rapid Installation: no tools required for assembly
  • Aesthetic, Compact and Light Weight
  • Unmatched Reliability

Folleto
Click To View GB Brochure
Click To View JP Brochure
Click To View CZ Brochure


PMD2 Plus/EZHD

Strict requirements and detection needs call for security checkpoints to perform efficiently even under very challenging conditions. The PMD2 Plus/EZHD detects fi rearms and knives, even when they are hidden within body cavities, and accurately indicate the position of the threat, its intensity and its prevalent composition. The PMD2 Plus/EZHD has a very low nuisance alarm rate even at the strictest Security Standards requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.

Descripción

PMD2 Plus/EZHD - detail

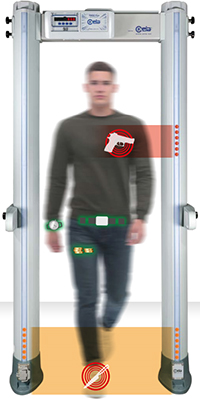

4 Multi-Zone Display Bars: light bars indicate metal position vertically and laterally and can also show pacing lights

Detection of all metallic threat items

  • Capability to detect the full range of metal weapon threats even within body cavities
  • Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
  • Guaranteed coverage for all orientations and locations, never in need of calibration
  • Met-Identity technology for Identification of Threat Composition


High discrimination & throughput

  • Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
  • No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
  • Better Discrimination = Shorter Lines and Less Staffing


Most powerful and versatile security features

  • Up to 50 built-in Security Programs: Up to 30 International Standards; Up to 20 Customizable Levels

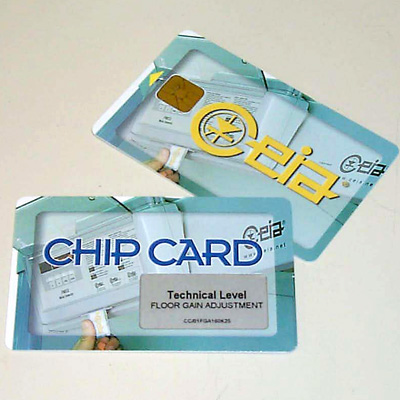

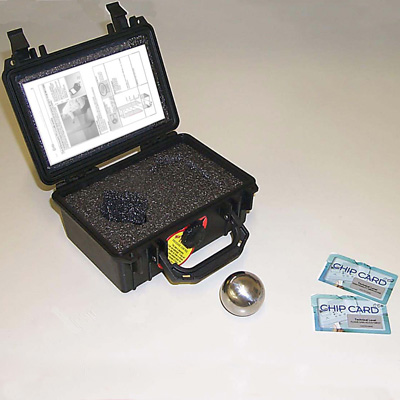

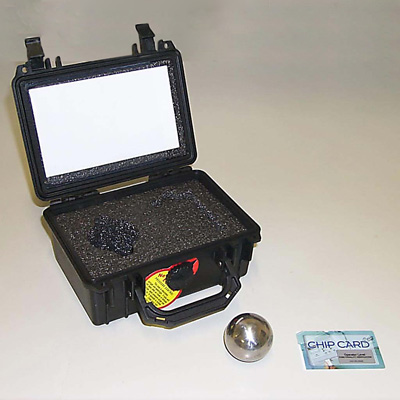

  • Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc.)and security level selection.
  • Any security standard can be enhanced with selectable random alarm probability


Unique alarm signaling

  • High visibility of the control unit and of the zone indication, independent from the operator position and the installation environment
  • Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
  • 10 Alarm Volume Levels
  • Very High Precision Transit Counter:
    • In-Bound, Out-Bound transits
    • Alarm Rate calculation
    • Automatic Compensation for repeated transits of the same person
    • Compensation d’analyse supplémentaire automatique


Immunity to external interferences

Exceptional immunity to environmental interferences makes the Metal Detector easy to use even when electrical noise is encountered.

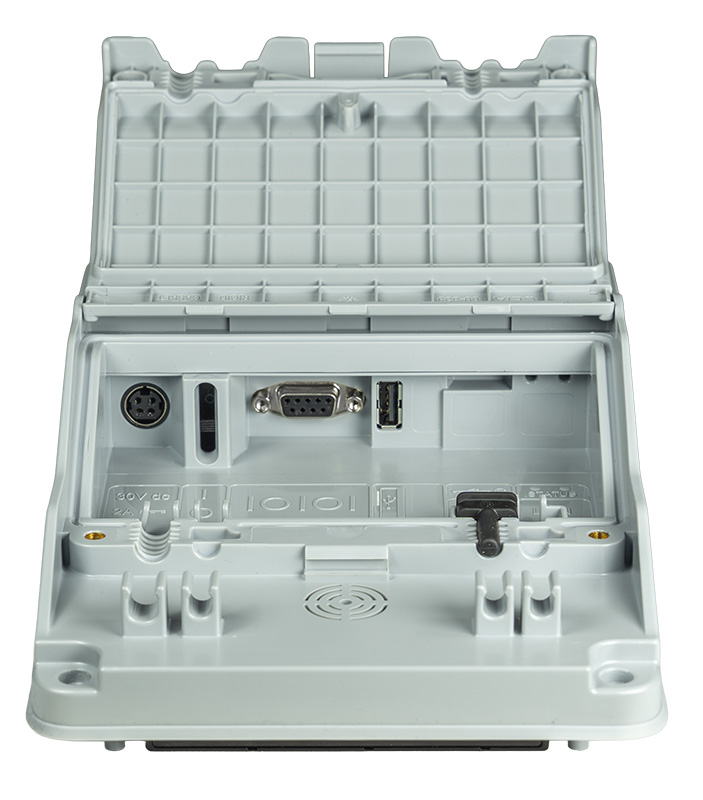

New certified IP66 control unit enclosure

  • Total compatibility with previous control units
  • Robust structure through the use of high-performance polymers for the construction of housing
  • Waterproof / Dustproof: IP66 compliant (IEC 60529)
  • Exceptional impact resistance at low and high temperatures and resistance to corrosionfrom atmospheric agents
  • Display made with specific polymer to improve the visibility of the LEDs by increasing the definition and clarity

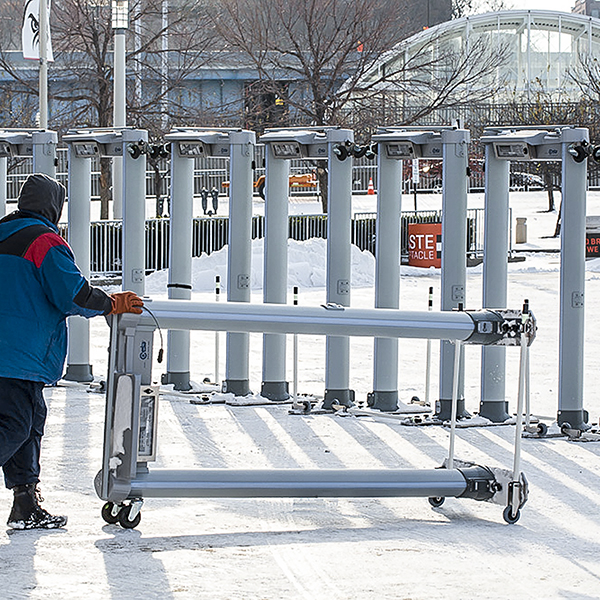

Rapid installation

  • One touch automatic installation (OTS)
  • Highly adaptable for installation in all environments
  • Automatic Compensation function to adjust for windy environments
  • Continuous self diagnostics assure monitored performance reliability

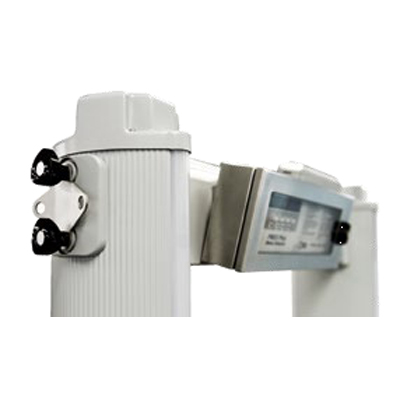

  • Upper tie-down points available for stabilization in case of strong winds (up to 40 km/h)


Breakthrough value

  • Superior CEIA reliability slashes total cost of ownership
  • No periodic re-calibration and preventive maintenance required
  • Monolithic construction, high protection degree against dust and water and high sturdiness stability

Especificaciones

Download Specifications



Gate structure

  • State-of-the-art, robust and washable compact elliptical columns
  • Protected against aging, weather and wear


Operational features

  • High discrimination and transit flow rates five or more times greater than other metal detection systems
  • Quick reset time as short as 0.2 seconds for high throughput rate
  • Very high detection speed (up to 15 m/sec.)
  • Built-in operational functional verification
  • One-touch key reading of inbound, outbound and Security Level Data


Quality

  • Continuous self diagnostic system
  • Proven reliability
  • No periodic re-calibration and preventive maintenance required
  • No scheduled maintenance
  • Fully digital design


Alarm signaling

  • Multi-zone display bar for “height on person” localization
  • 4 light bars with selectable entry/exit and pacing indication
  • Green and red metering signals proportional to the mass of the detected target
  • 10 selectable continuous and pulsed tone plus 34 special tones
  • 10 selectable sound intensities ranging from 0 to 90 dbA at 1m


Type of signaling

  • Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
  • 60 distinct zones (20 vertical x 3 lateral) entry and exit side


Programming

  • Up to 50 built-in Security Programs

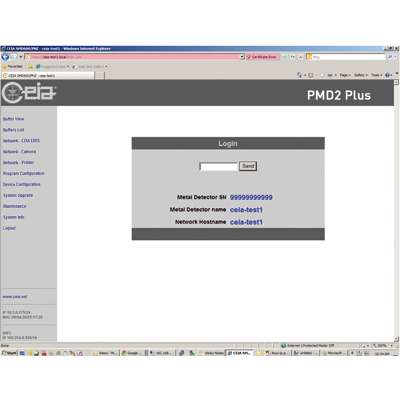

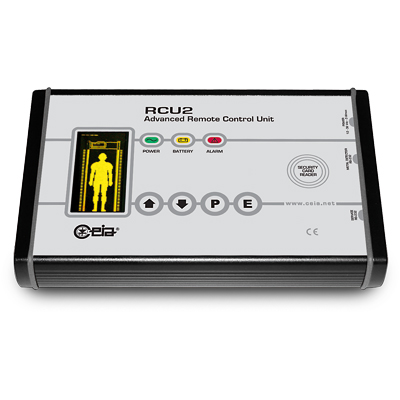

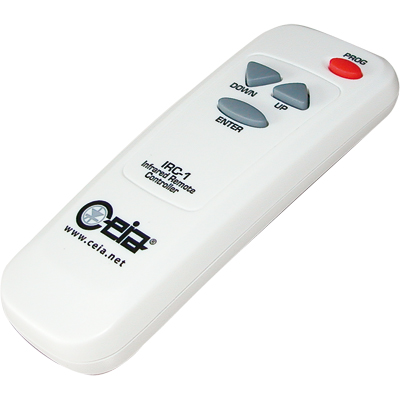

  • Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
  • Security level: International Standard (IS) command / Chip card
  • Local by Control Unit alphanumeric display and keyboard
  • Programming and chip card access protected by user and super-user passwords


Environmental data

  • Power Supply : 100…277V~ ±10%, 47…63Hz, 40 VA typical consumption
  • Operating temperature: -20°C to +65°C (-37°C to +70°C upon request)
  • Storage temperature: -37°C to +70°C
  • Relative humidity: 0 to 95% (without condensation)


Installation data

  • Automatic synchronisation between two or more metal detectors with distance of down to 5 cm without the use of external cables
  • Automatic Installation function (OTS)


Certification and compliance

  • Compliant with and certified to the applicable Standards for Enhanced Metal Detectors (EMD)
  • Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
  • Compliant with all Airport Security Standards worldwide
  • Compliant with applicable International Standards for electrical safety and EMC


Comprehensive support

  • CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer site.
