02PN20/EZHD

Elliptic, Multi-Zone and Heavy Duty Enhanced Metal Detector







Company Presentation








Visit us at
VenuesNow Conference
Seattle, WA - United States of America
Oct 21 - 22, 2021
Exhibitor: CEIA USA Ltd.

NCS4 National Sports Safety and Security Conference and Exhibition
Phoenix, AZ - United States of America
Nov 9 - 10, 2021
Exhibitor: CEIA USA Ltd.

See upcoming events >>

  • Superior Detection and Throughput
  • Compliant with and certified to the applicable Standards for Enhanced Metal Detectors
  • New mechanical structure with high protection degree
  • Rapid Installation: no tools required for assembly
  • Aesthetic, Compact and Light Weight
  • Unmatched Reliability
  • Embedded Radiation Monitor for the detection of radioactive materials (option)

Brochure
Click To View US Brochure


02PN20<sup>&trade;</sup>/EZHD

Strict requirements and detection needs call for security checkpoints to perform efficiently even under very challenging conditions. The 02PN20/EZHD detects firearms and knives, even when they are hidden within body cavities, and accurately indicate the position of the threat, its intensity and its prevalent composition.

Description

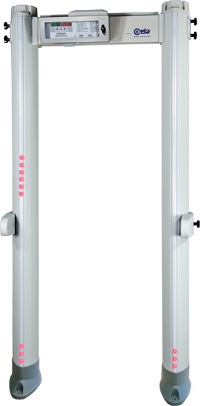

02PN20<sup>&trade;</sup>/EZHD - detail

Met-Identity technology for Identification of Threat Composition

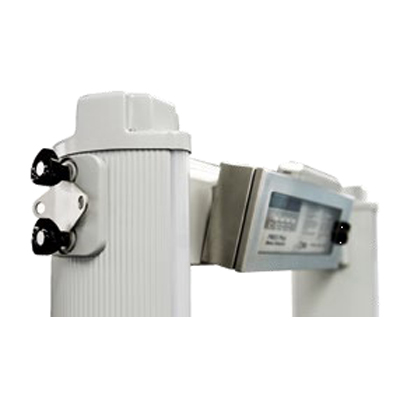

Heavy Duty Configurations are suitable for applications where the equipment is subject to frequent relocations.

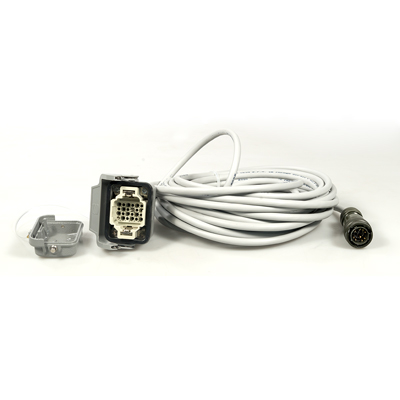

These models are characterized by cables with metal, military grade, connectors for quick plugging/unplugging and a rapid installation – all parts can be assembled without tools.

Detection of all metallic threat items

  • Capability to detect the full range of metal weapon threats even within body cavities
  • Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
  • Guaranteed coverage for all orientations and locations, never in need of calibration
  • Met-Identity technology for Identification of Threat Composition


High discrimination & throughput

  • Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow
  • No need to remove items such as belts, coins, keys, jewelry, watches, wallets, etc.
  • Better Discrimination = Shorter Lines and Less Staffing


Most powerful and versatile security features

  • Up to 50 built-in Security Programs: Up to 30 International Standards; Up to 20 Customizable Levels

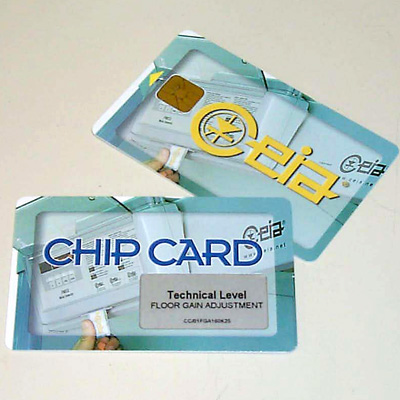

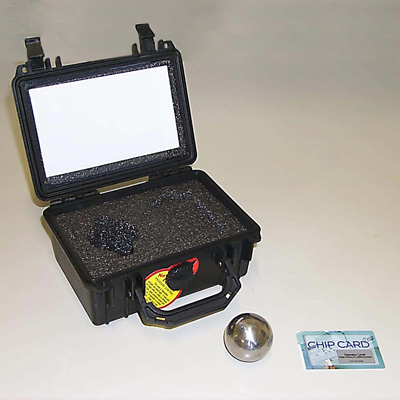

  • Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc.)and security level selection.
  • Any security standard can be enhanced with selectable random alarm probability


Unique alarm signaling

  • High visibility of the control unit and of the zone indication, independent from the operator position and the installation environment
  • Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
  • 10 Alarm Volume Levels
  • Very High Precision Transit Counter: In-Bound, Out-Bound transits; Alarm Rate calculation; Automatic Compensation for repeated transits of the same person; Compensation d’analyse supplémentaire automatique

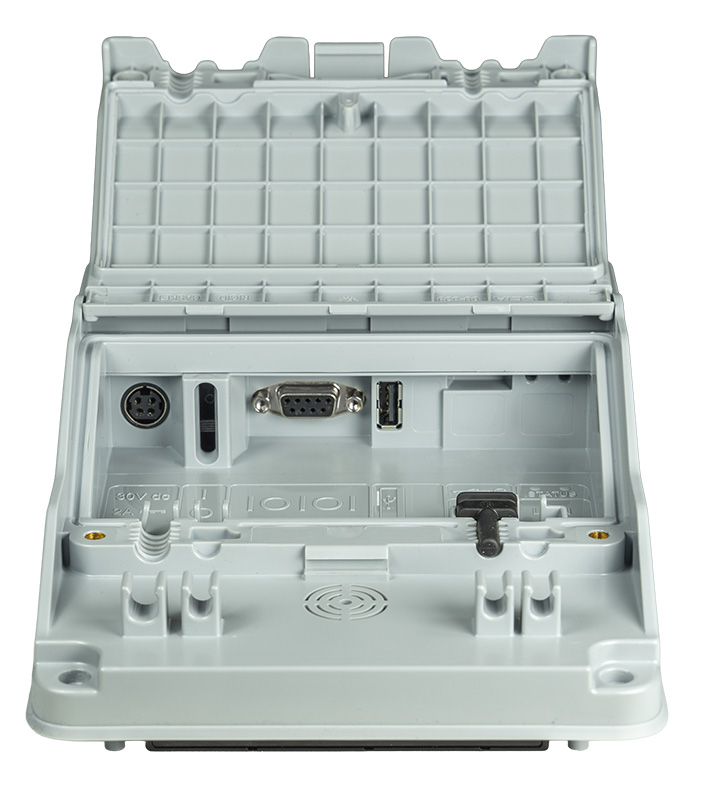

New certified IP66 control unit enclosure

  • Total compatibility with previous control units
  • Robust structure through the use of high-performance polymers for the construction of housing
  • Waterproof / Dustproof: IP66 compliant (IEC 60529)
  • Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
  • Display made with specific polymer to improve the visibility of the LEDs by increasing the definition and clarity


Rapid installation

  • One touch automatic installation (OTS)
  • Highly adaptable for installation in all environments
  • Automatic Compensation function to adjust for windy environments
  • Continuous self diagnostics assure monitored performance reliability

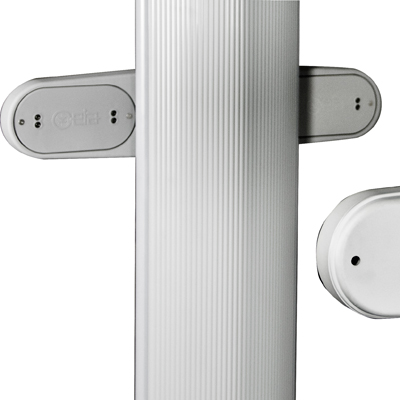

  • Upper tie-down points available for stabilization in case of strong winds (up to 40 km/h)


Breakthrough value

  • Superior CEIA reliability slashes total cost of ownership
  • No periodic re-calibration and preventive maintenance required
  • Monolithic construction, high protection degree against dust and water and high sturdiness stability


Radiation detector

  • Detection of radioactive materials
  • Embedded, high-sensitivity, full-height radiation sensors
  • ANSI and IEC standards compliant
  • Options include: Isotope identification with Nal detectors; CEIA NetID Anywhere network system for instant remote access or monitoring


Metal detector

  • Simultaneous detection of all-metal weapons, including magnetic, nonmagnetic and mixed alloy and light alloys threats
  • High-Throughput
  • Detection of radiation shielding containers (Lead) containing radiological sources


Extended communication capabilities

The APSiM3 Plus integrates a secure web server and WiFi infrastructure using state of the art SSL and WPA2 security protocols. The APSiM3 Plus can act both as a WiFi client and WiFi access point allowing to set up a local secure wireless network without requiring additional devices. The wireless network covers a 100 m wide area on open site conditions.
Any authorized device capable of wireless connectivity and https browsing (such as tablet pc, smart phones and laptops) can access the following functionalities:
  • Automatic monitoring of the auto-diagnostics, battery level and security level of the installed 02PN20/EZHD group.
  • Visual representation of the transits flow through the 02PN20/EZHD. The transits data is stored in the APSiM3 Plus for up one year and can be downloaded through date selection.

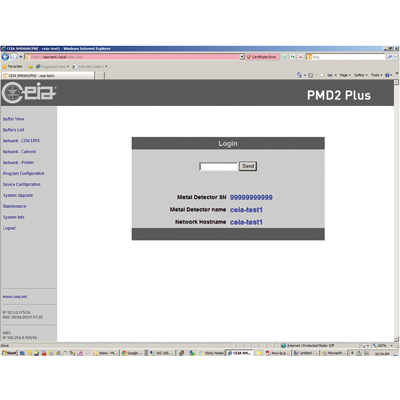

APSiM3 Plus integrated web-server & logger

  • Monitor the status of Metal Detector network in real time
  • Remotely control and verify the security level
  • Report on number of people screened and alarm rates automatically
  • No server or specialized client software required, only a web browser
  • Zero configuration network for simple setup
  • Wi-Fi - 802.11

Specifications

Download Specifications



Gate structure

  • State-of-the-art, robust and washable compact elliptical columns
  • Protected against aging, weather and wear

Operational features

  • High discrimination and transit flow rates five or more times greater than other metal detection systems
  • Quick reset time as short as 0.2 seconds for high throughput rate
  • Very high detection speed (up to 15 m/sec.)
  • Built-in operational functional verification
  • One-touch key reading of inbound, outbound and Security Level Data

Quality

  • Continuous self diagnostic system
  • Proven reliability
  • No periodic re-calibration and preventive maintenance required
  • No scheduled maintenance
  • Fully digital design

Alarm signaling

  • Multi-zone display bar for “height on person” localization
  • 4 light bars with selectable entry/exit and pacing indication
  • Green and red metering signals proportional to the mass of the detected target
  • 10 selectable continuous and pulsed tone plus 34 special tones
  • 10 selectable sound intensities ranging from 0 to 90 dbA at 1m

Type of signaling

  • Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
  • 60 distinct zones (20 vertical x 3 lateral) entry and exit side

Programming

  • Up to 50 built-in Security Programs

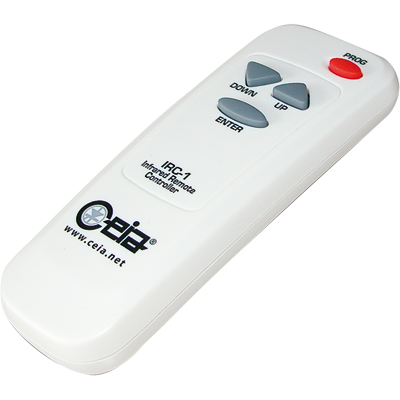

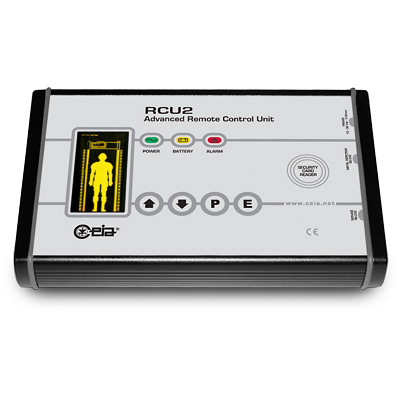

  • Remote via Infrared Remote Control Unit, BT or WiFi (option) interface
  • Security level: International Standard (IS) command / Chip card
  • Local by Control Unit alphanumeric display and keyboard
  • Programming and chip card access protected by user and super-user passwords

Environmental data

  • Power Supply : 100…277V~ ±10%, 47…63Hz, 40 VA typical consumption
  • Operating temperature: -20°C to +65°C (-37°C to +70°C upon request)
  • Storage temperature: -37°C to +70°C
  • Relative humidity: 0 to 95% (without condensation)

Installation data

  • Automatic synchronisation between two or more metal detectors withdistance of down to 5 cm without the use of external cables
  • Automatic Installation function (OTS)

Certification and compliance

  • Compliant with and certified to the applicable Standards for Enhanced Metal Detectors (EMD)
  • Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
  • Compliant with all Airport Security Standards worldwide
  • Compliant with applicable International Standards for electrical safety and EMC

Comprehensive support

  • CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer location

Applications

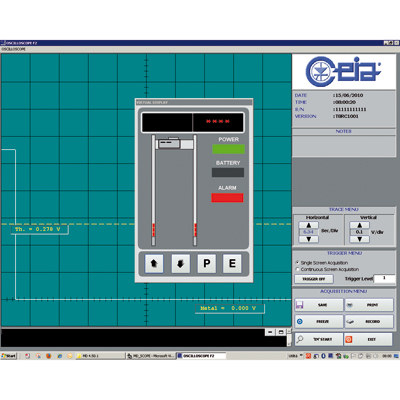

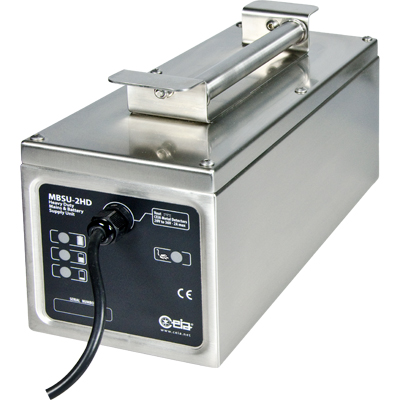

Options

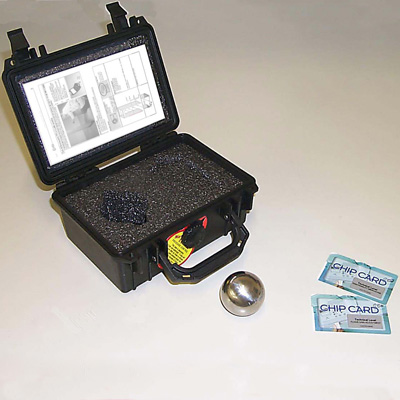

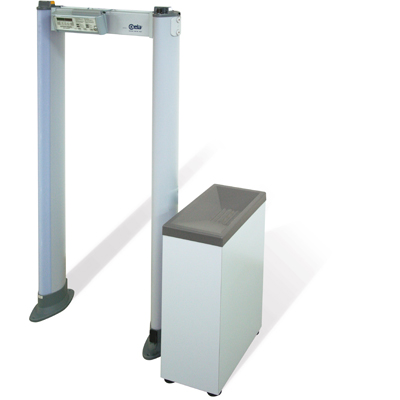

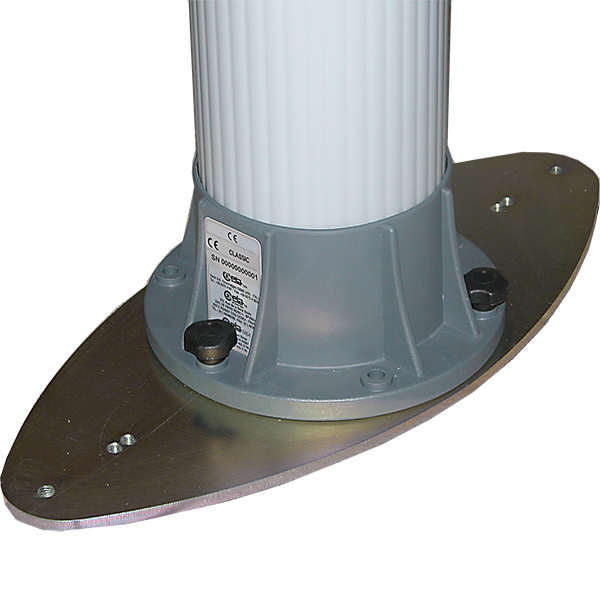

Accessories

Documents


Brochure
Click To View US Brochure




Certificates
CE Certificate
Human Exposure Certificate



Technical drawings
Technical Drawings
